Semi-automaticRound Box Machines: Flat Type

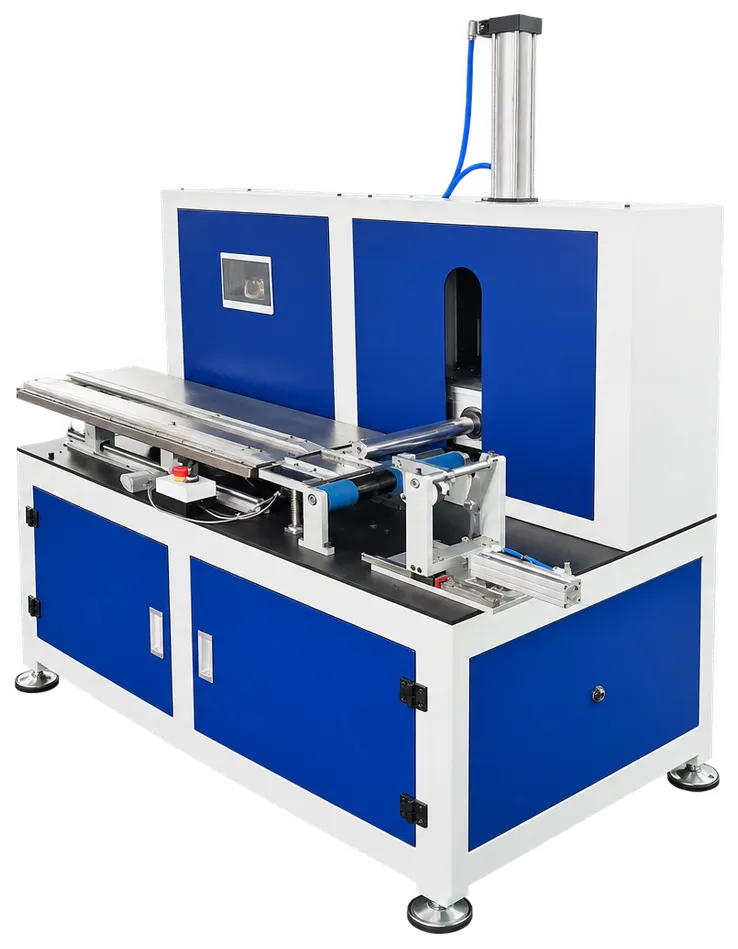

HF-500ARound Box Labeling Machine (Servo)

Wraps the cover paper around the wall of a round or round-cornered rigid box, 300–500 boxes per hour.

Inner diameter: 60–500mm
Height: 20–280mm
Production speed: 300–500pcs/hour
Registration error: ±0.2–0.5mm
Power: 2kW

Specifications

ASize range

Inner diameter	60–500 mm
Height	20–280 mm

BMaterial

Mould

Plastic mould

CPerformance

Registration error	±0.2–0.5 mm
Production speed	300–500 pcs/hour; spliced boxes 120–180 pcs/hour
Run direction	Forward or backward (chosen at order)
Adjustment time	30 minutes

DElectrical & footprint

Power	2 kW
Air pressure	0.6–0.8 MPa
Machine weight	345 kg
Machine dimensions (L × W × H)	1600 × 950 × 1890 mm

Footprint · to scale

1600

950

1.5 m² floor area, mm

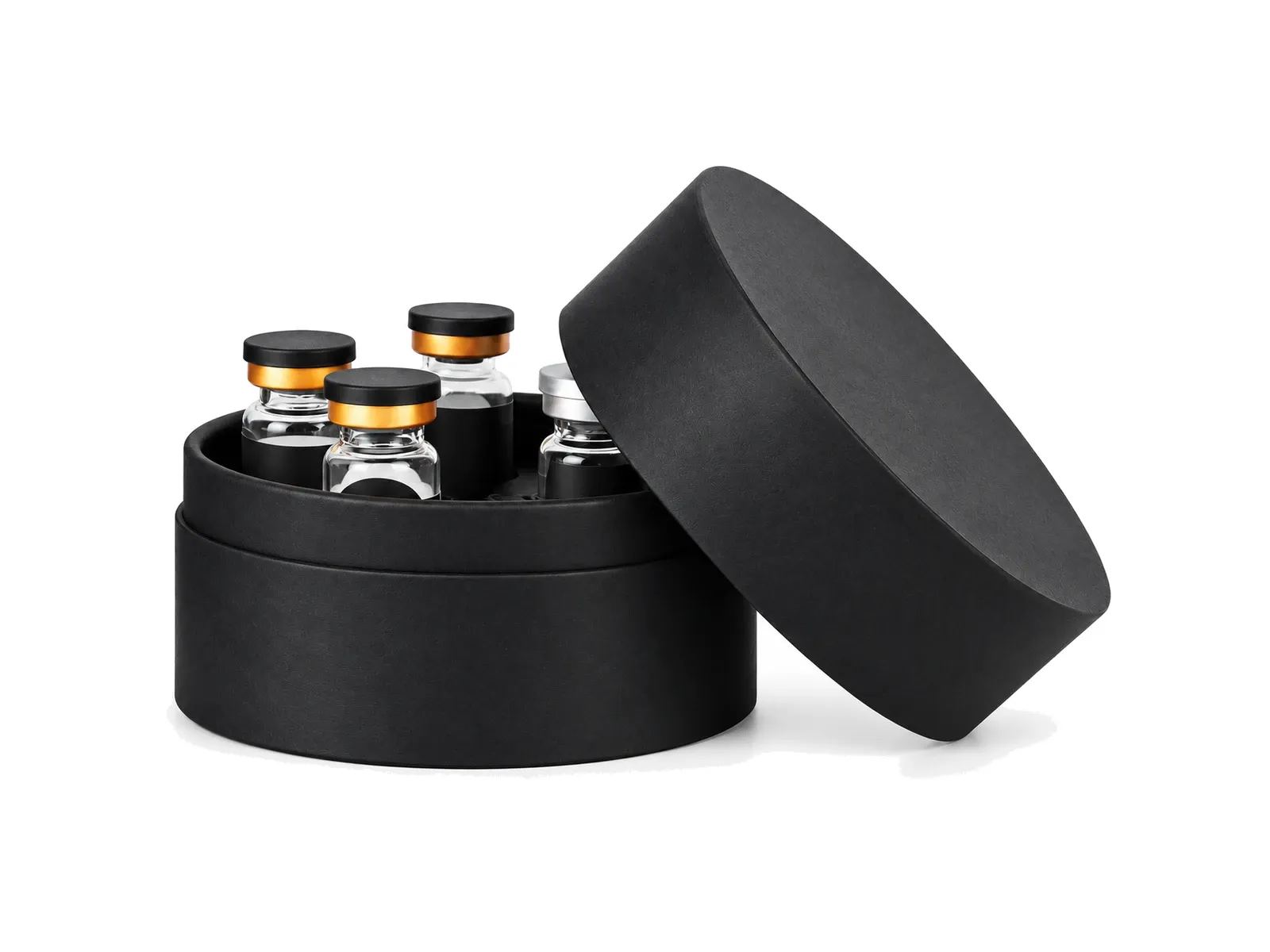

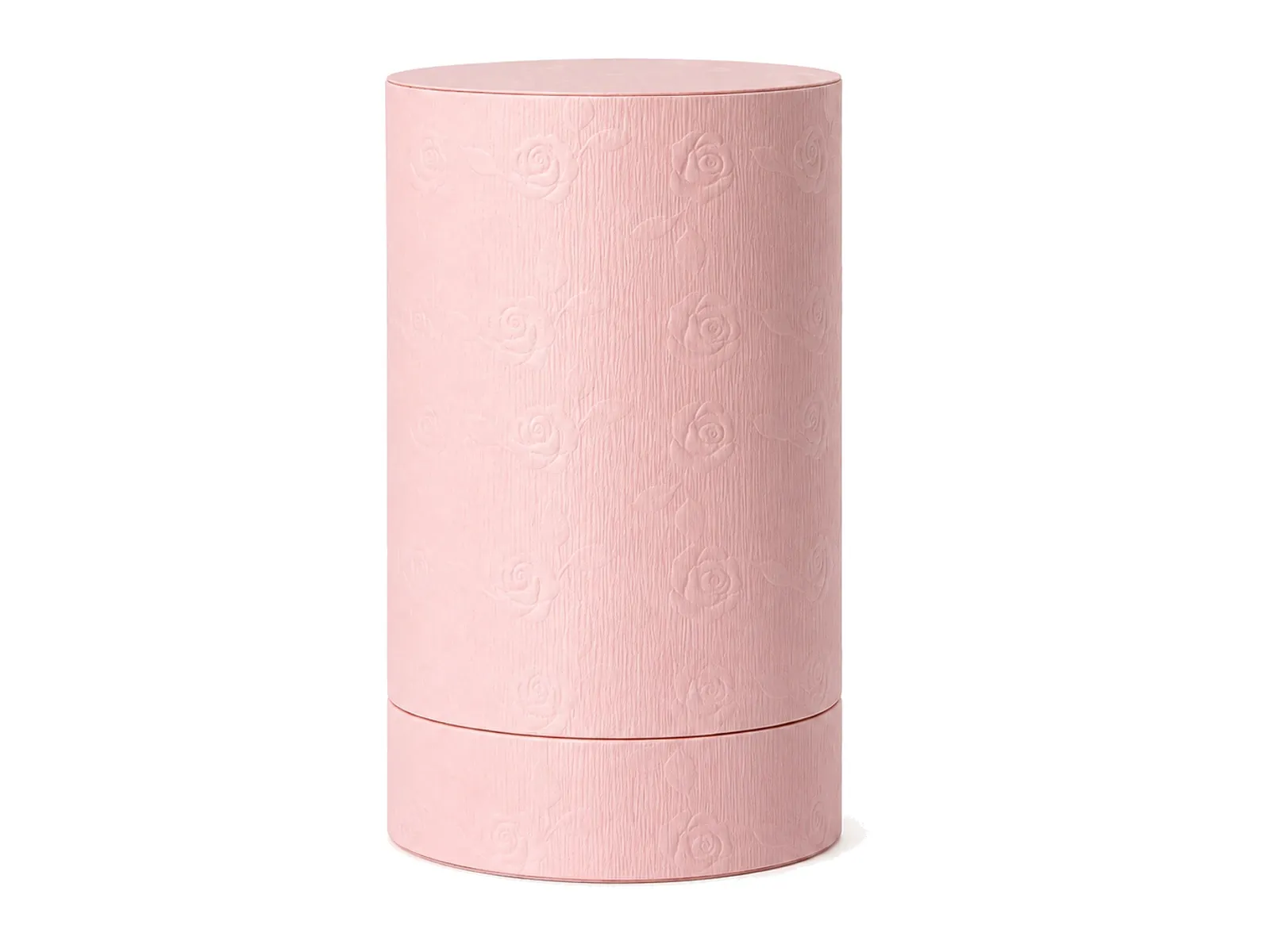

Applications

What the HF-500A makes.

Round boxes
Spliced round boxes
Oval boxes
Semi-round and D-shaped boxes
Racetrack-shaped boxes
Square boxes with rounded corners
Triangular boxes with rounded corners

Line position

Where the HF-500A sits in a line.

Before

HF-500CRound Box Cardboard Bending Machine

This machine

HF-500ARound Box Machines: Flat Type · 300–500 pcs/hour

After

HF-480Round Box Paper Folding Machine (Servo)

FAQ

Questions about the HF-500A.

What sizes does the HF-500A handle?

For the HF-500A, inner diameter: 60–500 mm; height: 20–280 mm.

How fast is the HF-500A?

The HF-500A runs at 300–500 pcs/hour; spliced boxes 120–180 pcs/hour. Speed is counted in single pieces, not sets.

What materials can the HF-500A run?

On the HF-500A, mould: Plastic mould.

What power and air supply does the HF-500A need?

The HF-500A needs power: 2 kW; air pressure: 0.6–0.8 MPa.

How large and heavy is the HF-500A?

For the HF-500A, machine weight: 345 kg; machine dimensions (L × W × H): 1600 × 950 × 1890 mm.

Which machines work with the HF-500A?

It is fed by the HF-500C Round Box Cardboard Bending Machine, and it feeds the HF-480 Round Box Paper Folding Machine (Servo). Which of these you need depends on the box structure and how much of the line is already in place.
