HF-1150AutomaticAutomatic Folding Box Visual Positioning Assembly Machine
- Max. size
- 1150 × 500 mm
- Speed
- 15–20 pcs/min
All machines
36 machines, 15 categories.
Short answer
HORFON supplies 36 machines in 15 categories for rigid box production: collapsible boxes, lid-and-base boxes, hardcover cases, drawer boxes, round boxes and paper card boxes, plus carton packing, die cutting and UV printing. 23 are automatic, 12 semi-automatic and 1 manual. Each can be bought on its own or as part of a line.
Not sure which category? Start from your box type →
All
36 shown
HF-1150Automatic
HF-8020AutomaticAutomatic Folding Box Side Wing Wrapping Machine
- Max. size
- 920 × 600 mm
- Speed
- 20–30 sheets/min

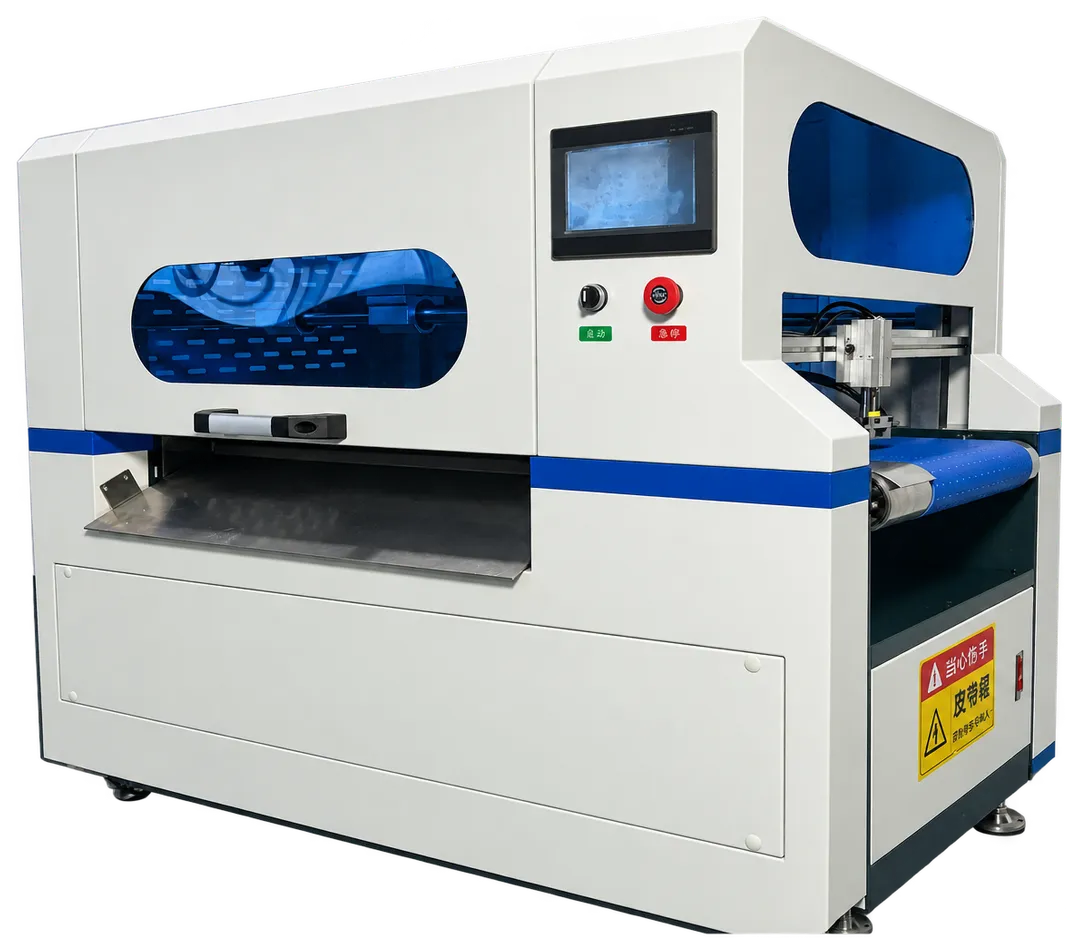

HF-800DAutomaticAutomatic Folding Box Wing Wrapping Machine
- Max. size
- 800 mm
- Speed
- 19–25 pcs/min
HF-5040AutomaticAutomatic Rigid Box Making Machine
- Max. size
- 500 × 400 × 120 mm
- Speed
- 18–25 pcs/min
HF-450AutomaticAutomatic Rigid Box Forming Machine
- Max. size
- 480 × 400 × 120 mm
- Speed
- 15–20 pcs/min
HF-500AutomaticAutomatic Rigid Box Corner Pasting Machine
- Max. size
- 480 × 450 × 150 mm
- Speed
- 30–55 pcs/min

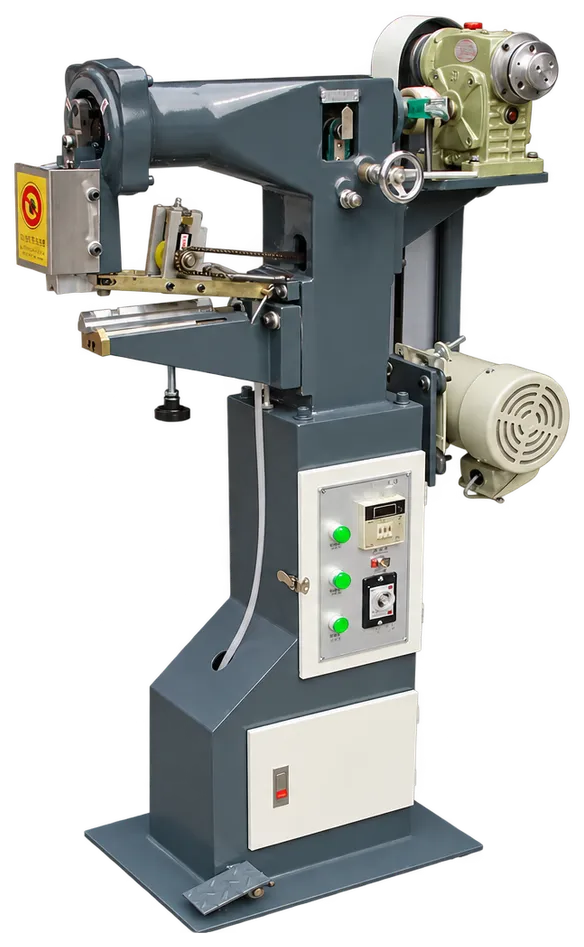

HF-40ManualRigid Box Corner Pasting Machine
- Max. size
- 500 × 450 × 150 mm
- Speed
- 10–20 pcs/min
HF-850AAutomaticAutomatic Paper Gluing Machine
- Max. size
- 80–800 mm
- Speed
- 7–45 pcs/min
HF-1200AutomaticAutomatic V Grooving Machine
- Max. size
- 100–950 mm
- Speed
- 25–50 m/min

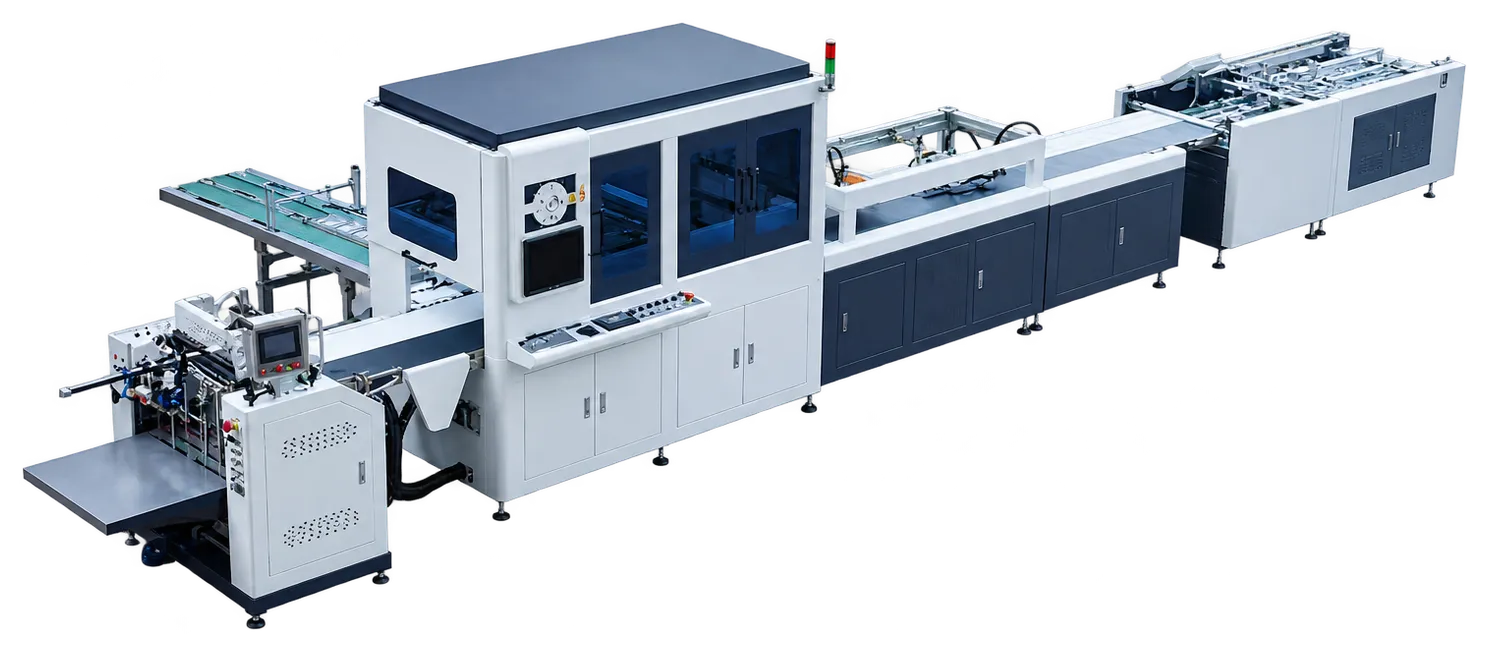

HF-550AutomaticAutomatic Case Making Machine
- Max. size
- 1000 × 500 mm
- Speed
- 20–30 pcs/min

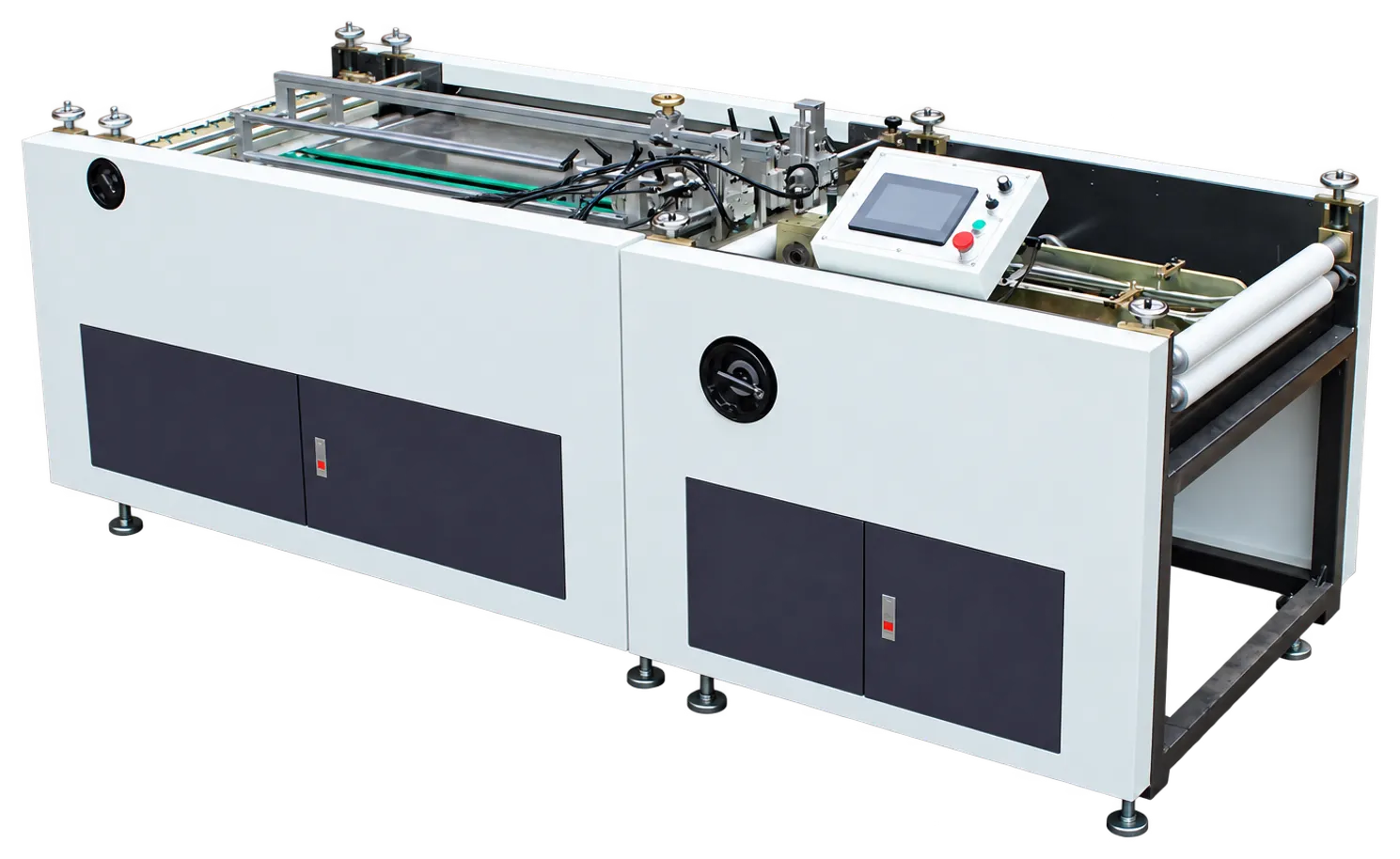

HF-900AutomaticAutomatic Hardcover Four Side Wrapping Machine
- Max. size
- 1000 × 500 mm
- Speed
- 20–30 pcs/min
HF-1050AutomaticAutomatic Visual Positioning Machine for Rigid Box and Hardcover
- Max. size
- 1050 × 750 mm
- Speed
- 15–30 sheets/min

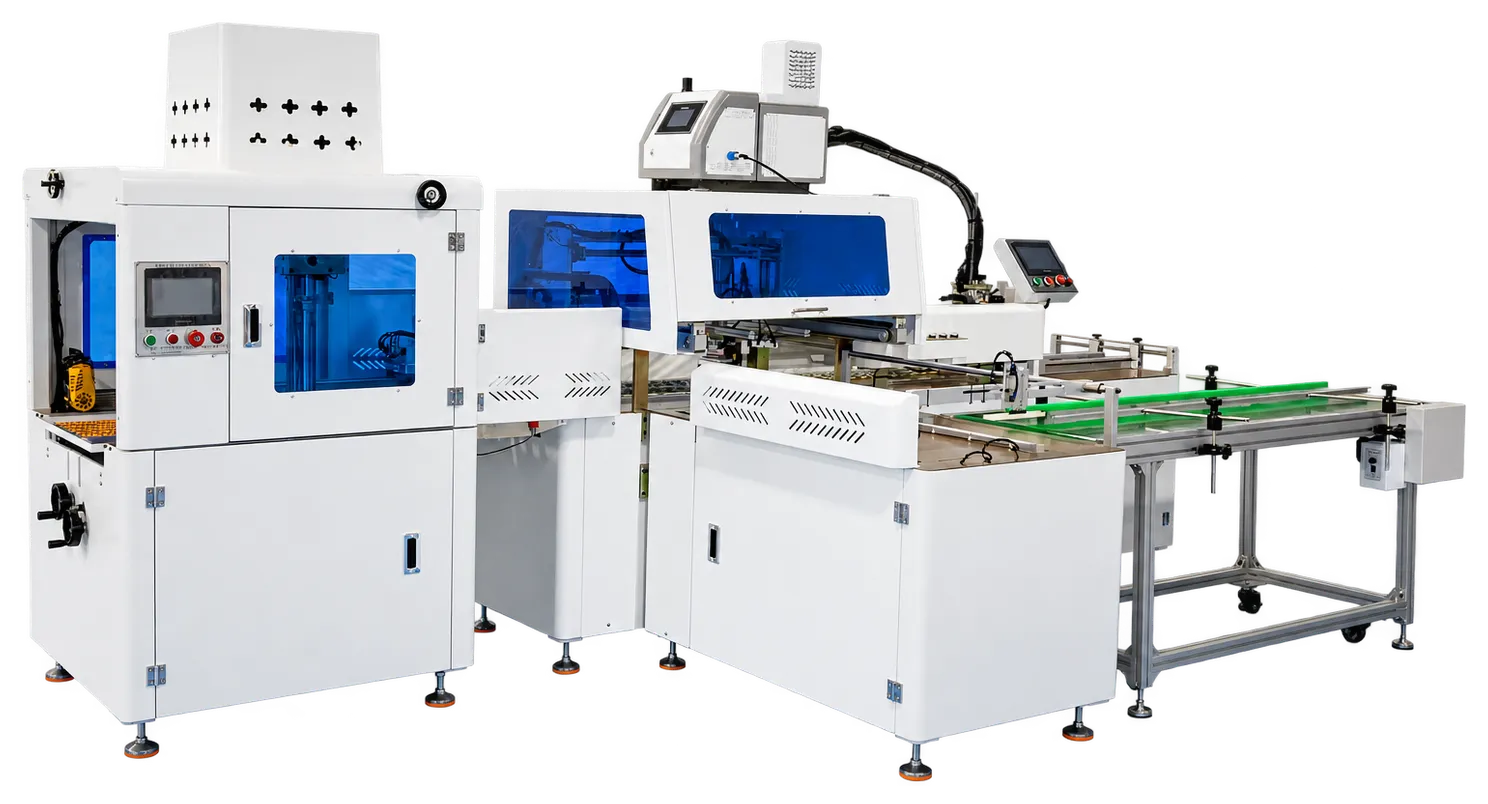

HF-8288AutomaticMultifunctional Automatic Box Assembly Machine
- Max. size
- 960 × 440 mm
- Speed
- 15–22 pcs/min

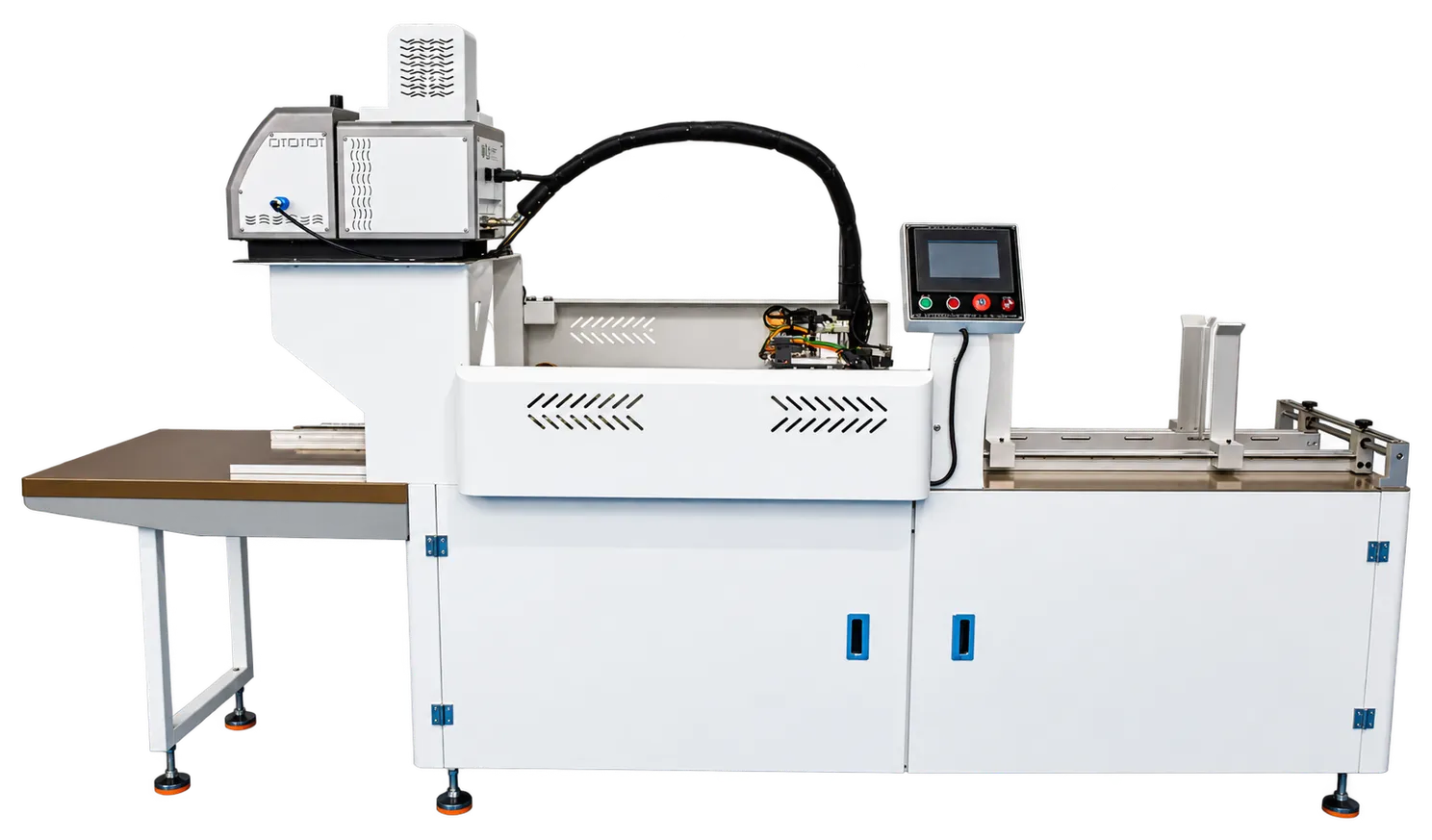

HF-808Semi-automaticSemi Automatic Rigid Box and Book Cover Assembly Machine
- Max. size
- 450 × 400 × 115 mm
- Speed
- 15–22 pcs/min
HF-4350AutomaticAutomatic Paper Box Forming Machine (Single Station)
- Max. size
- 400 × 350 × 100 mm
- Speed
- 17–23 pcs/min
HF-3250AutomaticAutomatic Paper Box Forming Machine (Double Station)
- Max. size
- 350 × 250 × 80 mm
- Speed
- 34–46 pcs/min

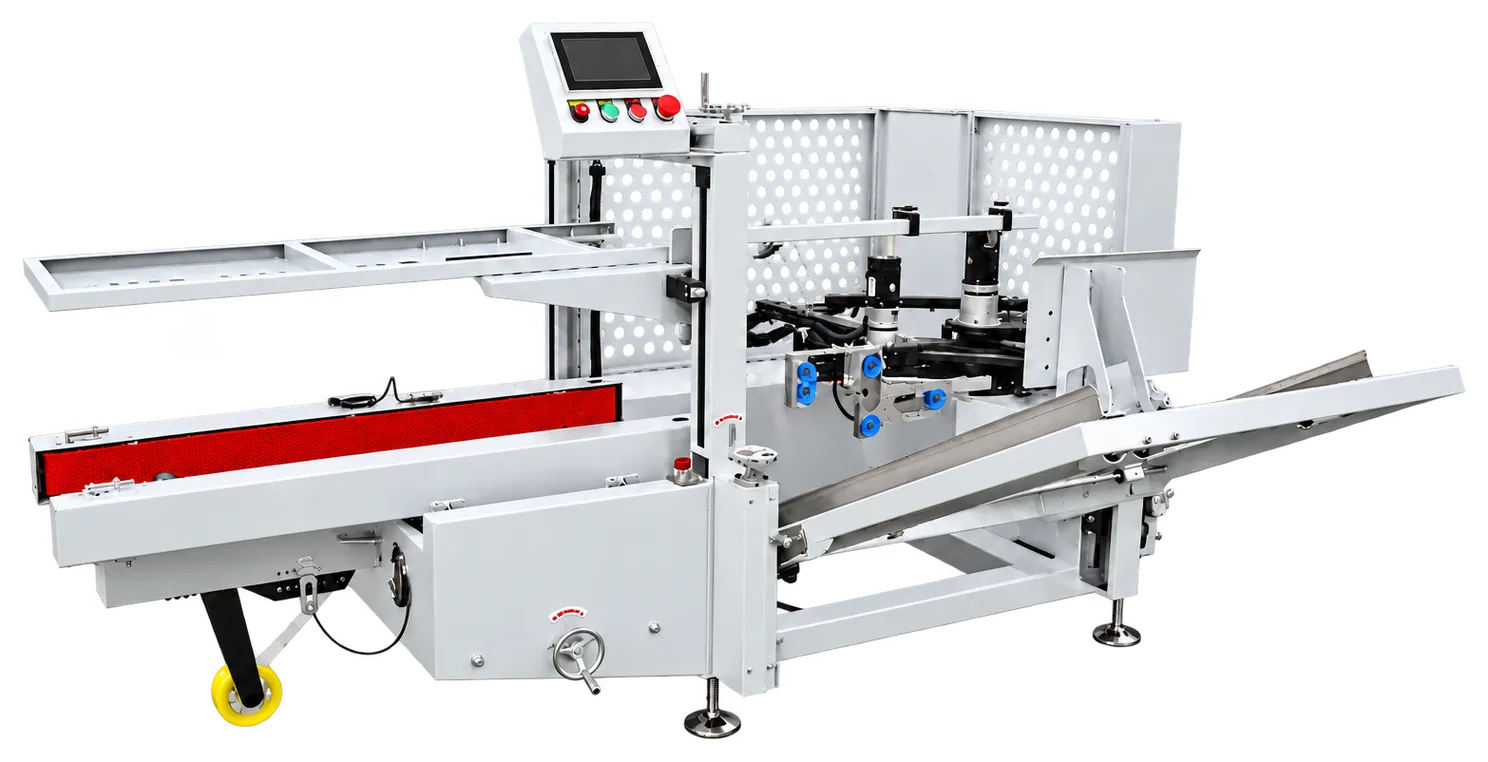

HF-650AutomaticAutomatic Corrugated Case Erecting Machine
- Max. size
- 280–660 mm
- Speed
- 5–15 pcs/min

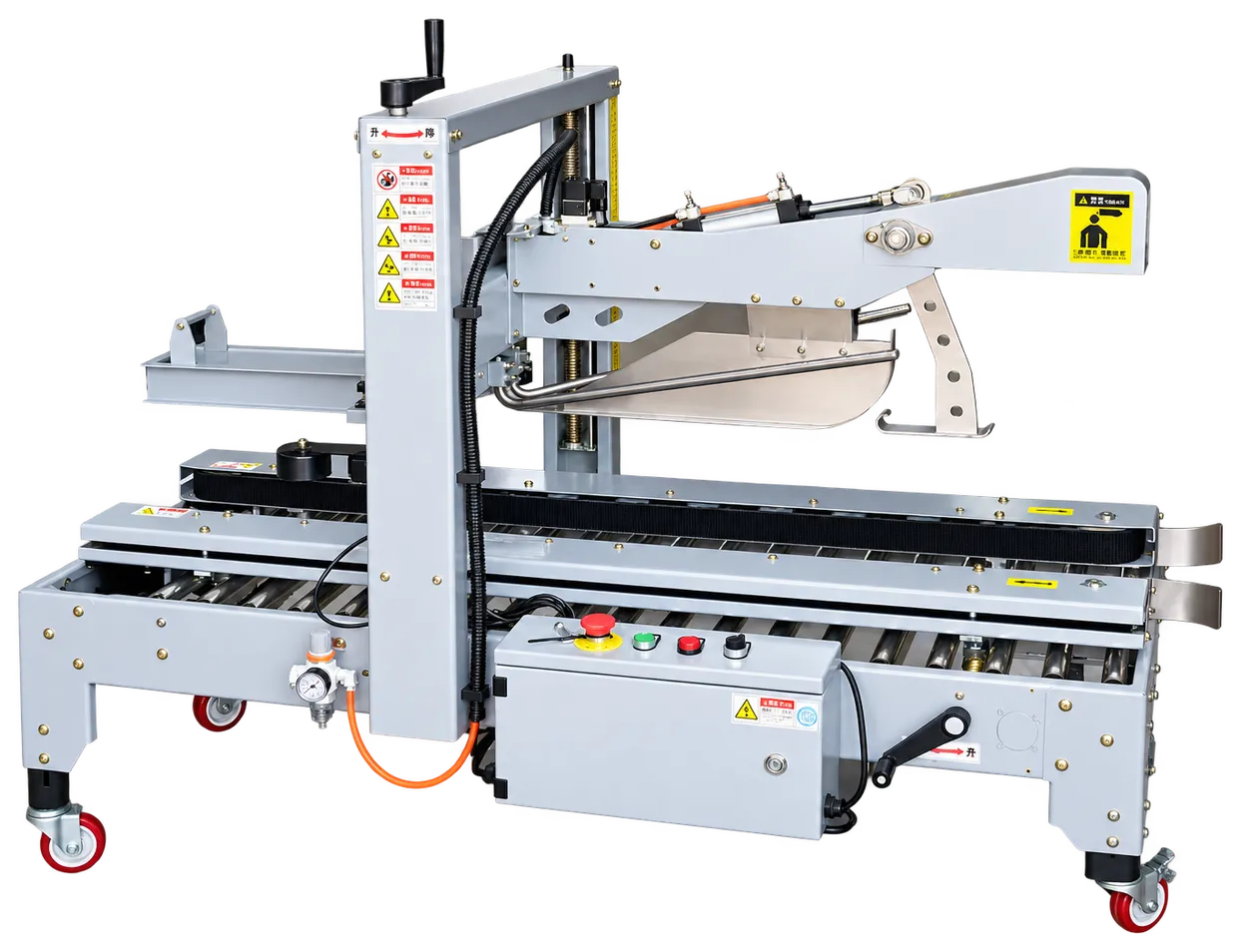

HF-FA500AutomaticAutomatic Carton Sealing Machine
- Max. size
- 200–600 mm
- Speed
- 20 m/min

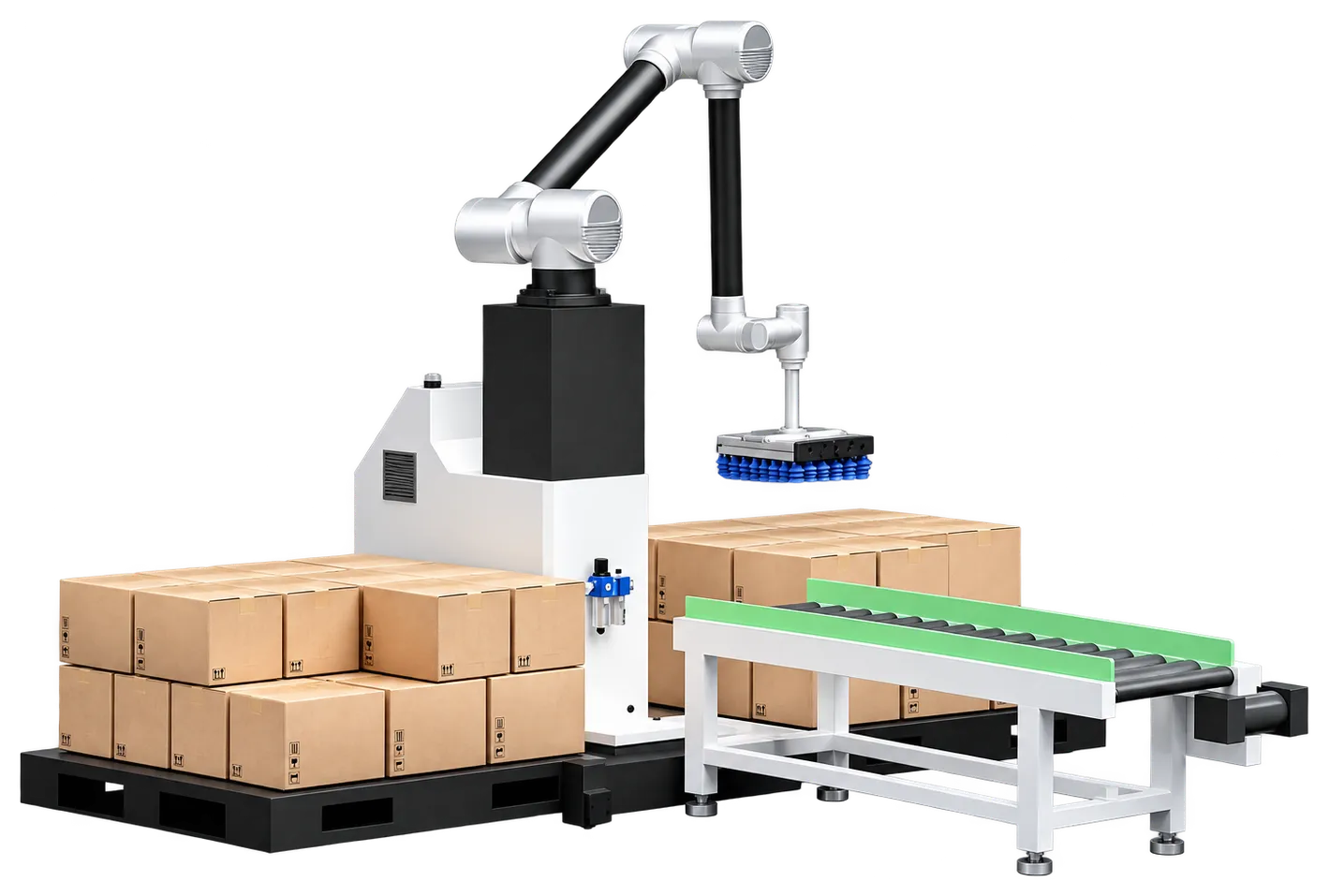

HF-30ProAutomaticAutomatic Cobot Palletizer
- Max. size
- 30 kg
- Speed
- 8 pcs/min, depending on the product

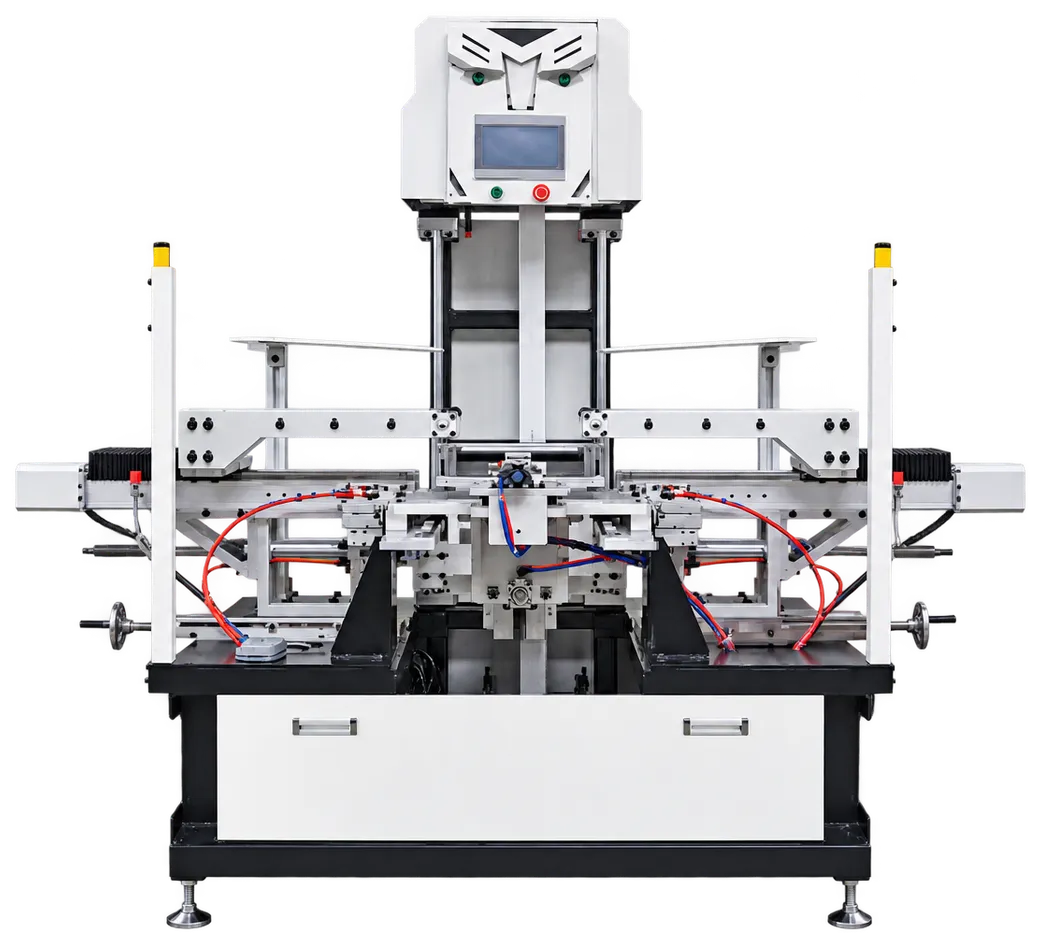

HF-320AutomaticAutomatic Drawer Box (Slipcase) Forming Machine
- Max. size
- 350 × 120 × 320 mm
- Speed
- 600–1000 pcs/hour

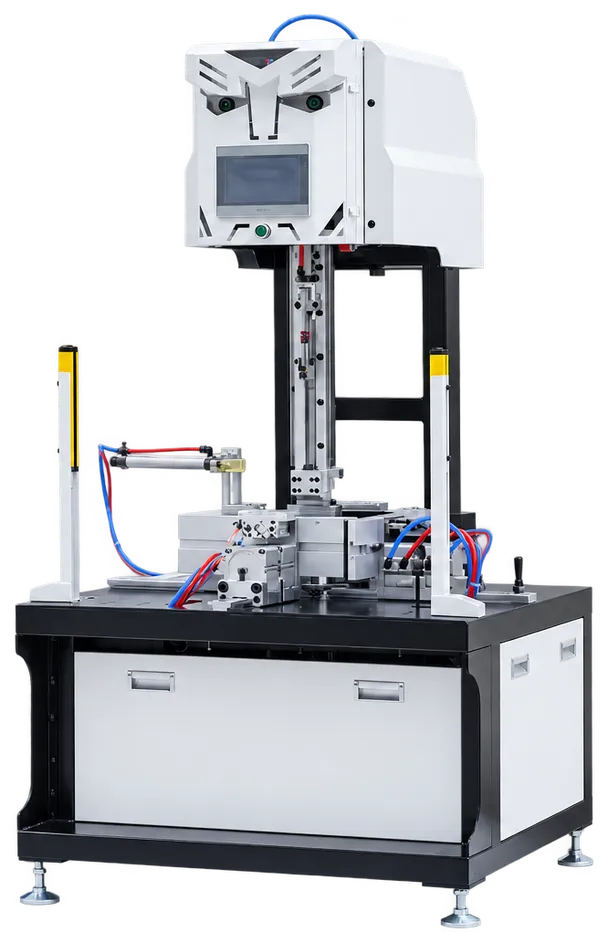

HF-320ASemi-automaticAutomatic Drawer Box Folding Machine
- Max. size
- 400 × 300 × 150 mm
- Speed
- 800–1200 pcs/hour

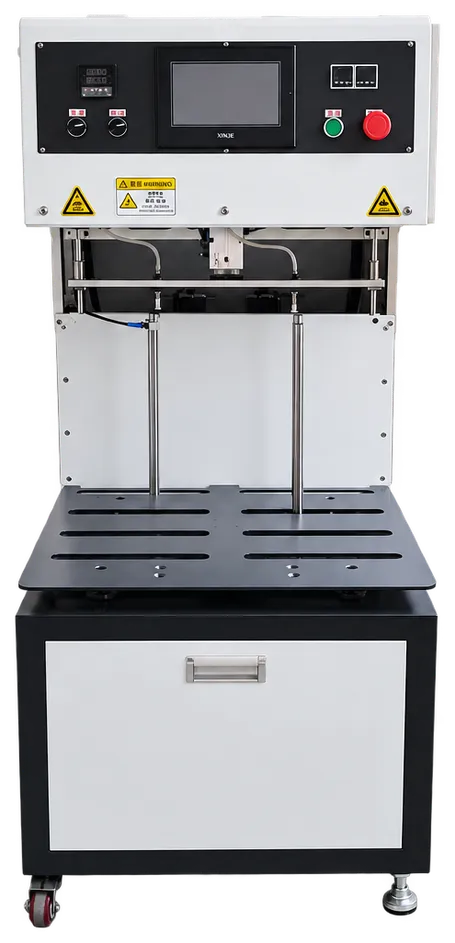

HF-600BSemi-automaticSemi Automatic Magnet Pasting Machine
- Max. size
- 1000 × 600 mm
- Speed
- 25–35 pcs/min

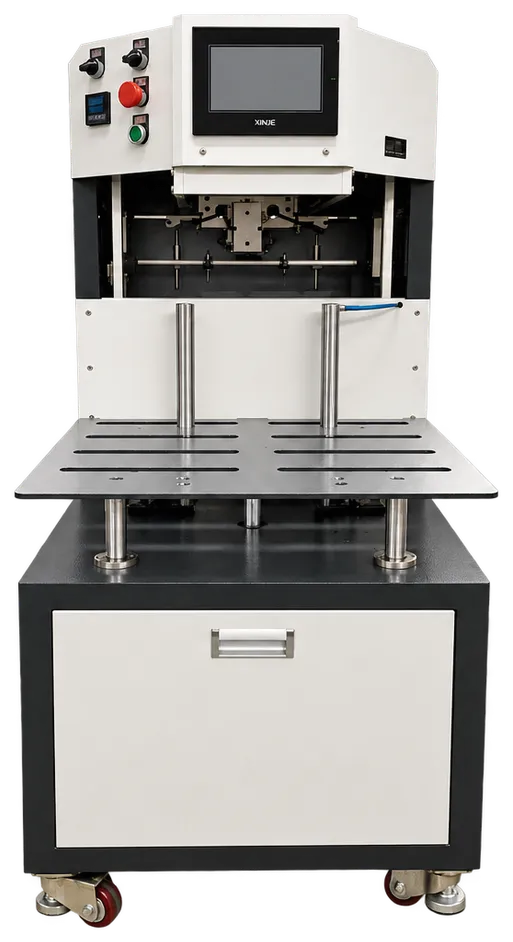

HF-600ASemi-automaticSemi Automatic Iron Sheet Pasting Machine
- Max. size
- 1000 × 600 mm
- Speed
- 30–45 pcs/min

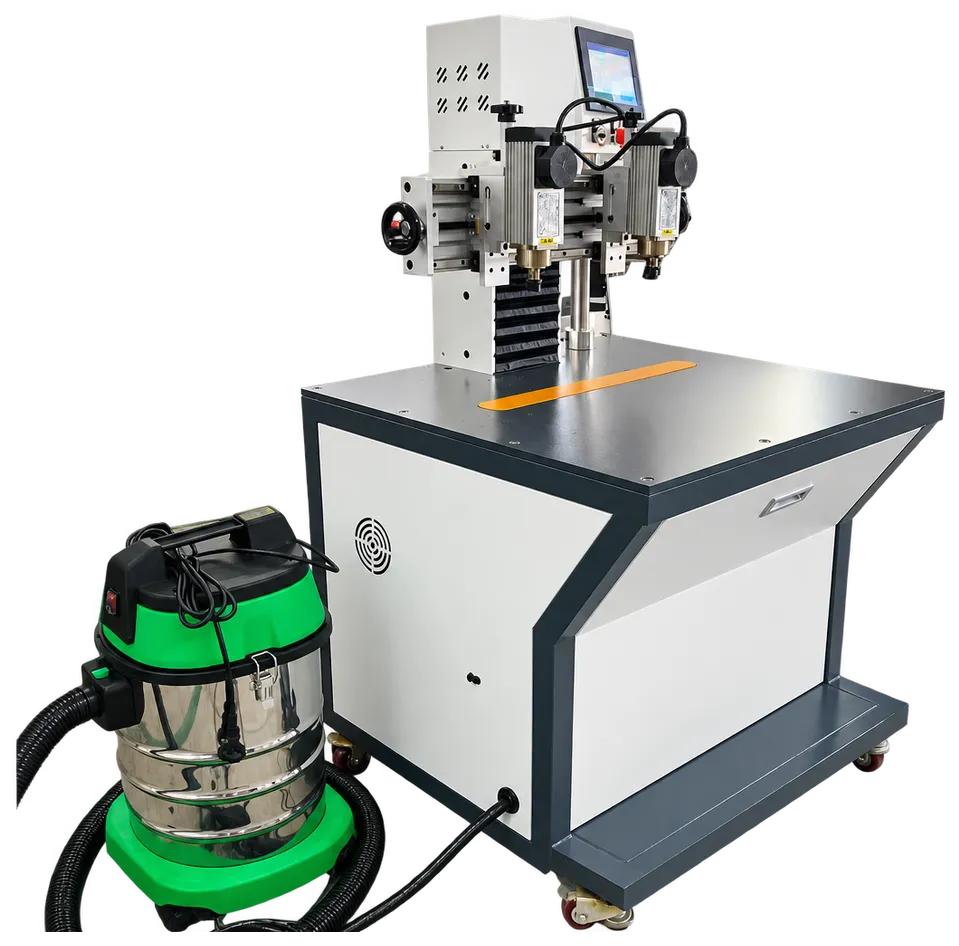

HF-7090ZKSemi-automaticSemi Automatic Drilling Machine
- Max. size
- 900 × 700 mm
- Speed
- 30 pcs/min

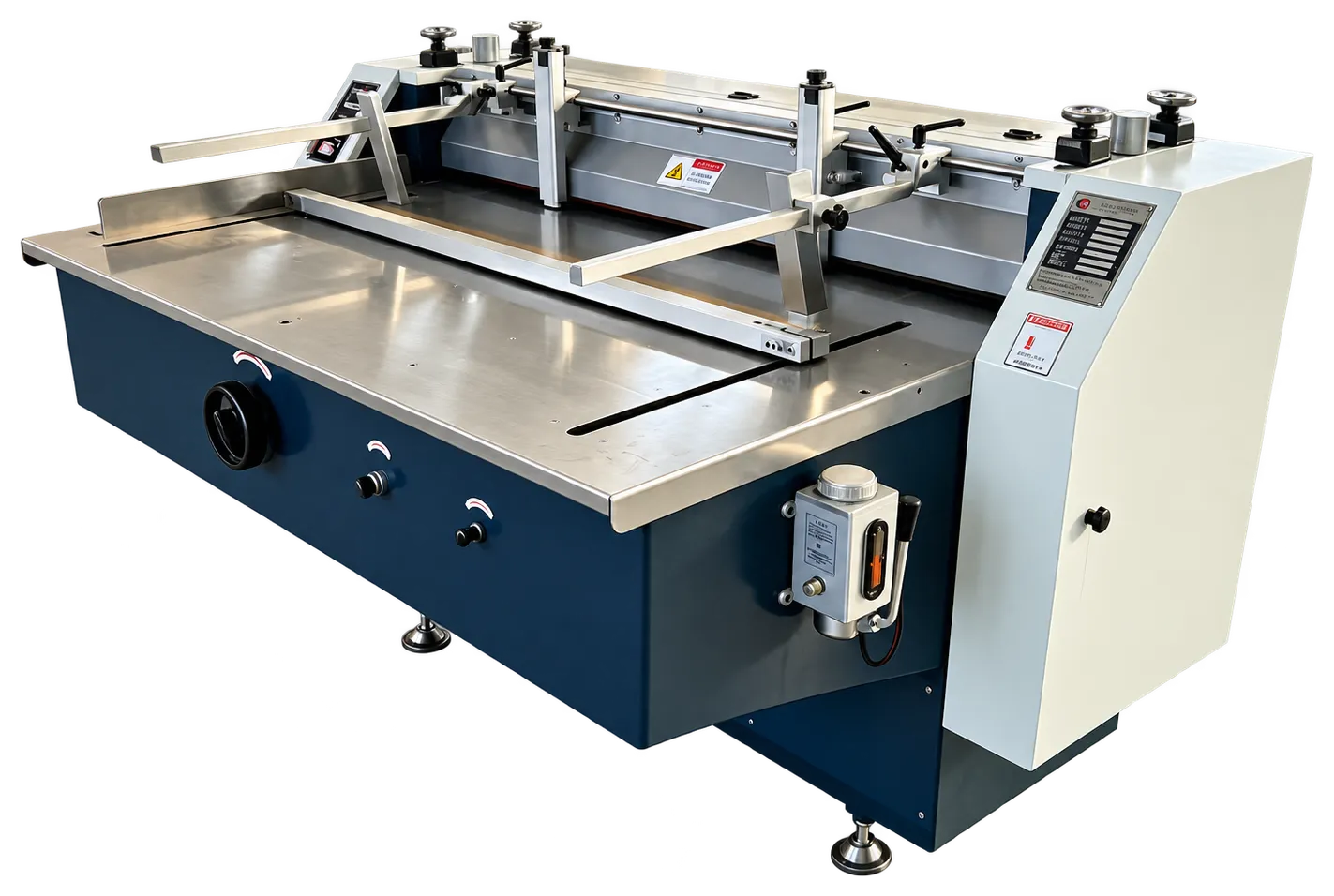

HF-1300AutomaticAutomatic Cardboard Slitting Machine
- Max. size
- 1200 × 800 mm
- Speed
- 20–80 sheets/min

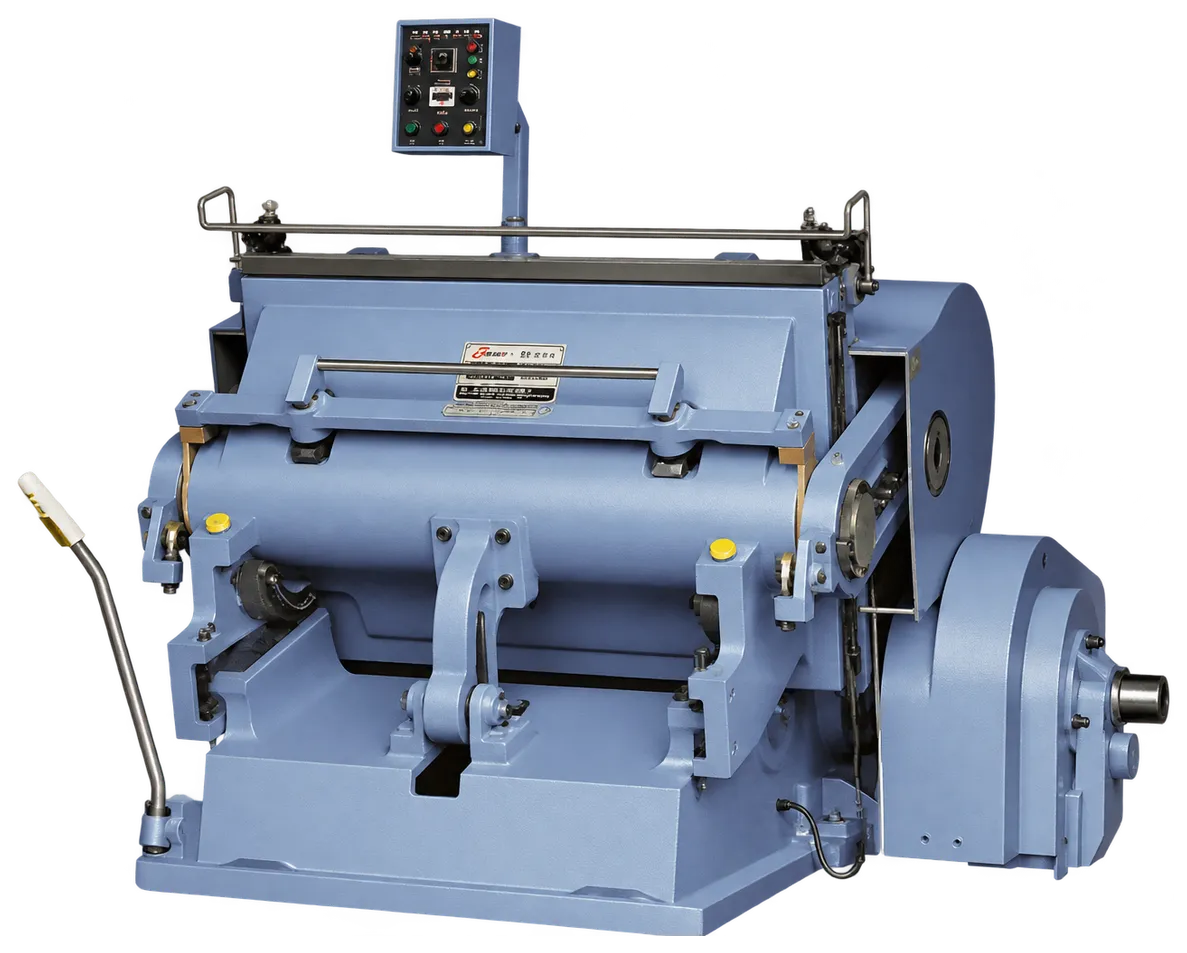

HF-1100Semi-automaticDie Cutting Machine
- Max. size
- 1100 × 800 mm
- Speed
- 20 ± 2 strokes/min

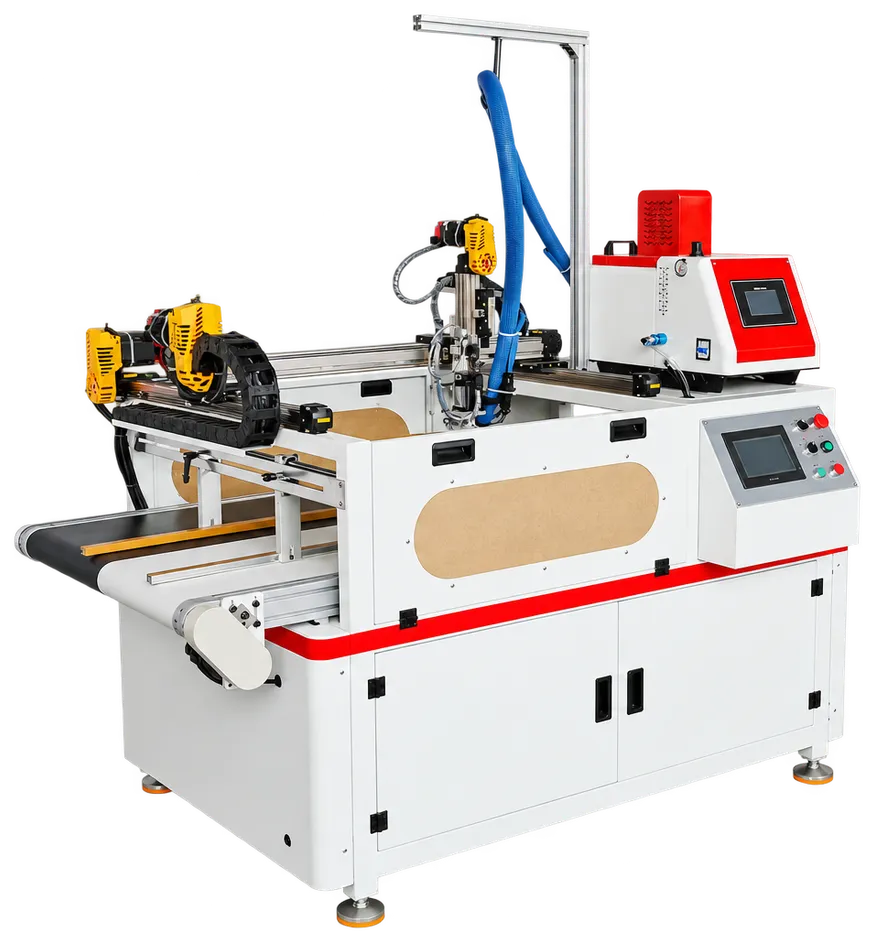

HF-600AutomaticAutomatic Multifunctional Glue Spray Machine
- Max. size
- 1000 × 550 × 150 mm
- Speed
- 45 pcs/min (side glue on a 100 × 100 mm box)

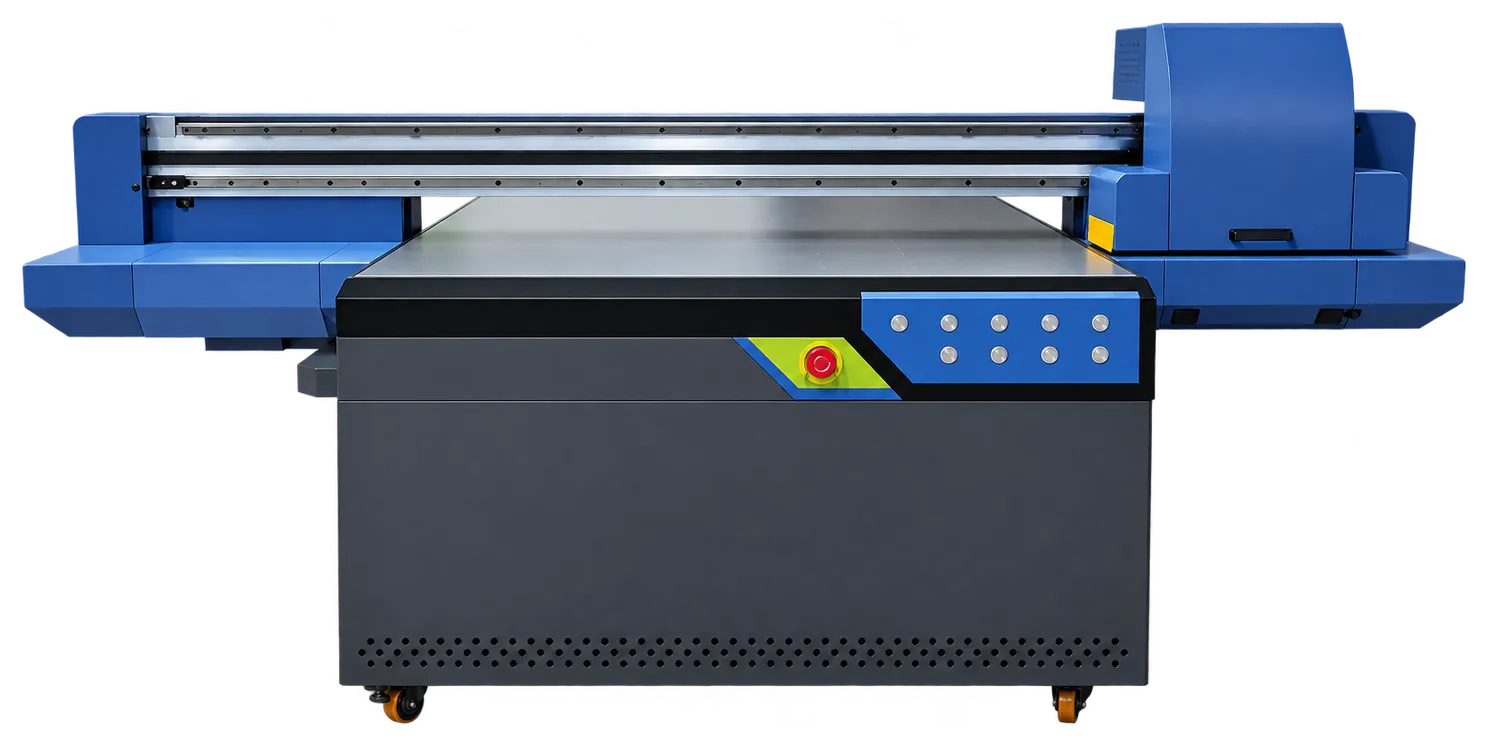

HF-UV1290AutomaticUV Printing Machine for Packaging
- Max. size
- 1200 × 900 mm
- Speed
- —

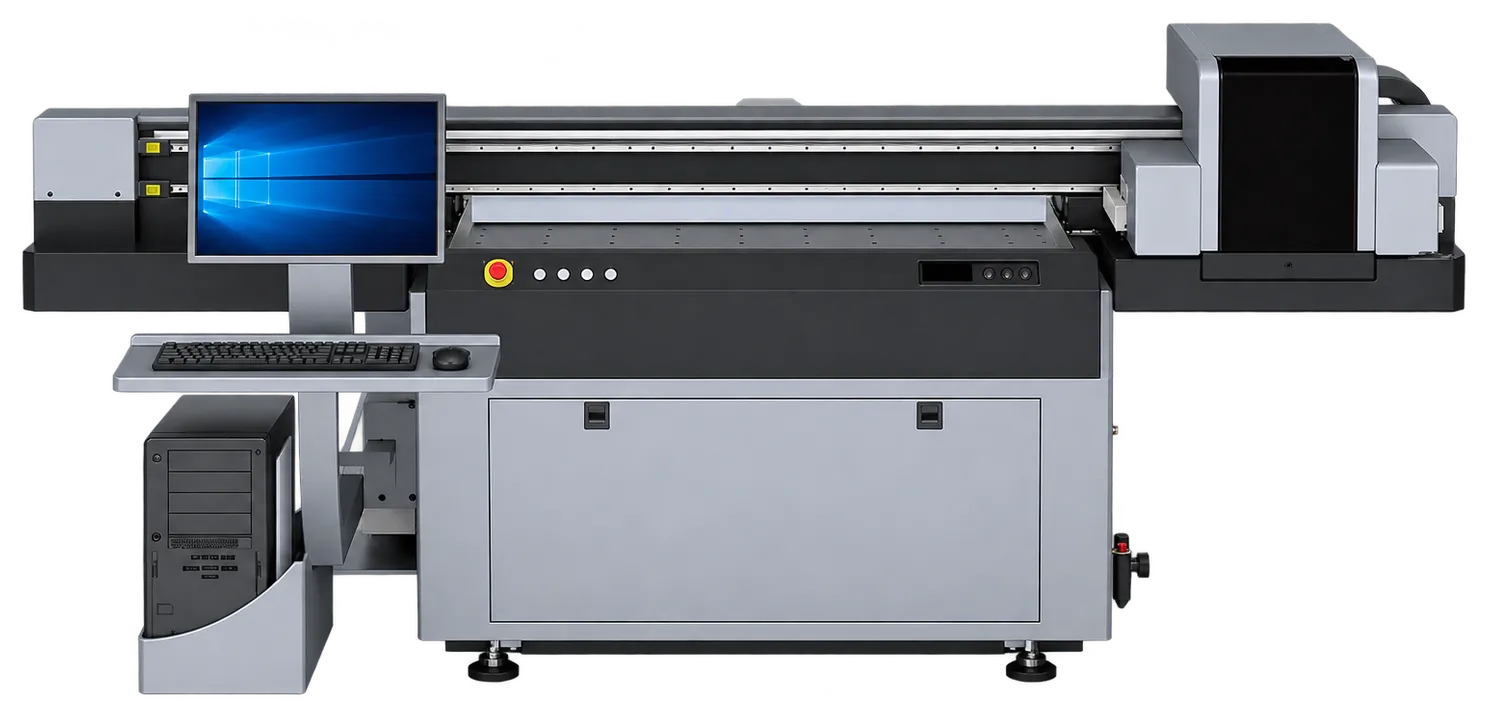

HF-UV1210AutomaticUV Printing Machine for Crafts and Gifts
- Max. size
- 1200 × 1000 mm
- Speed
- —

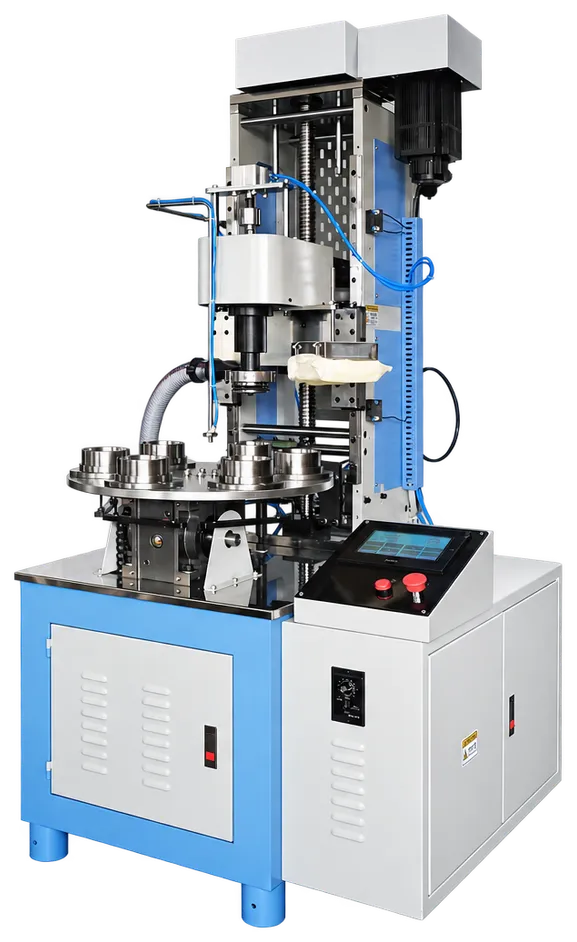

HF-440Semi-automaticSemi Automatic Paper Tube 360° Curling Machine
- Max. size
- φ31–160 mm
- Speed
- 30–50 pcs/min

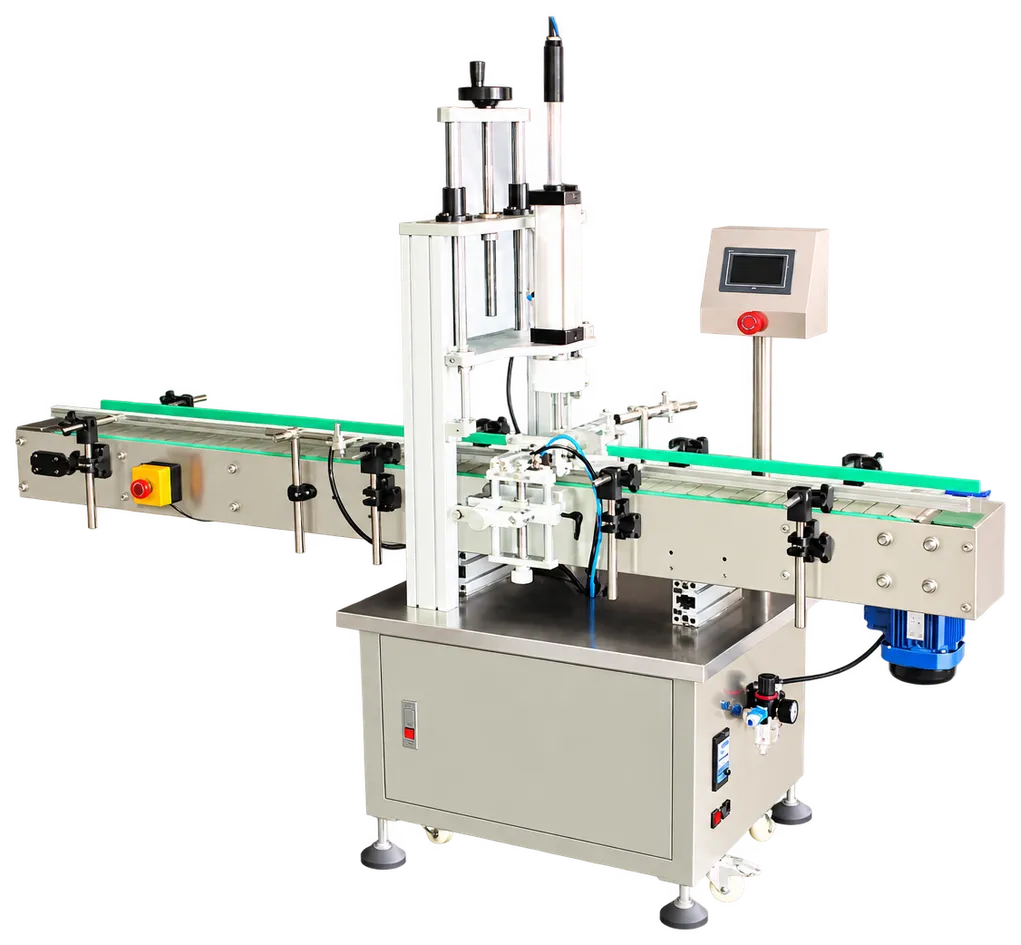

HF-100Semi-automaticSemi Automatic Lid Pressing Machine
- Max. size
- 30–120 mm
- Speed
- —

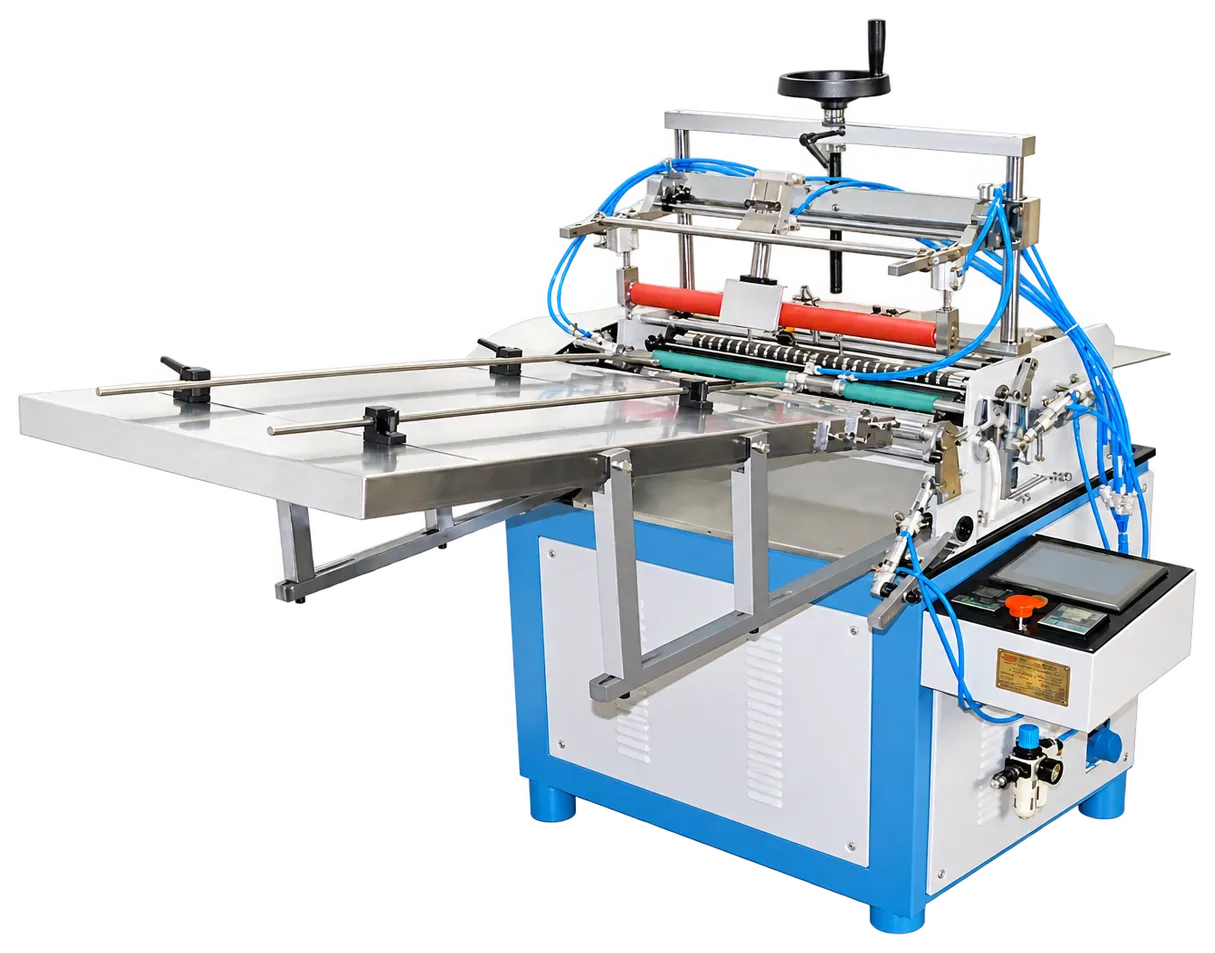

HF-500BAutomaticAutomatic Paper Tube Labeling Machine
- Max. size
- φ28–130 mm
- Speed
- 40 pcs/min

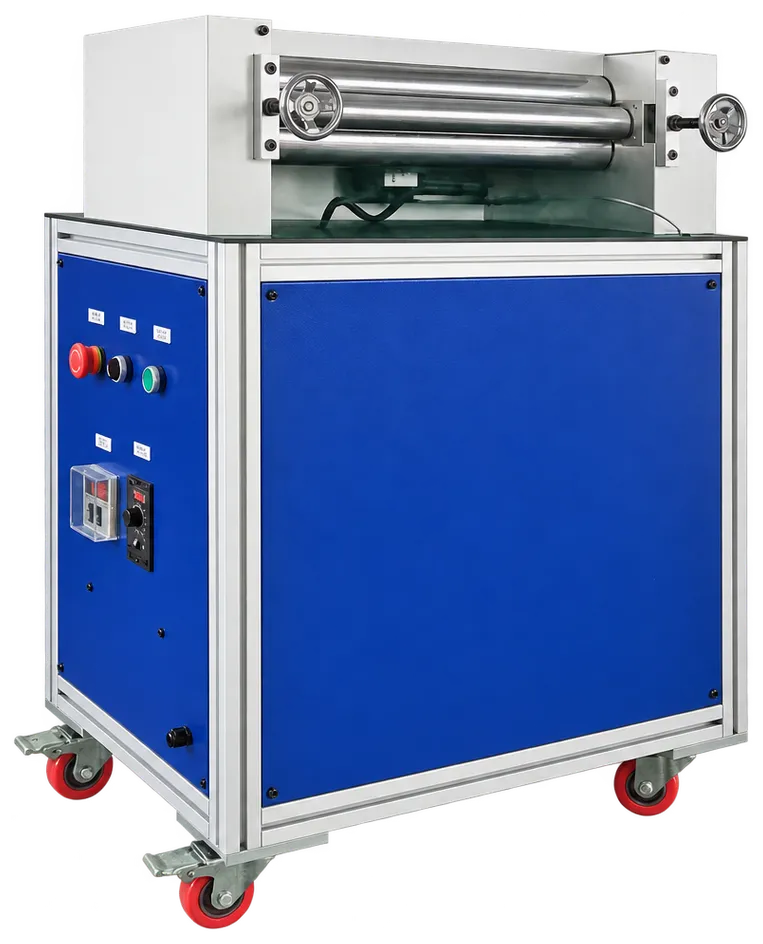

HF-500CSemi-automaticRound Box Cardboard Bending Machine
- Max. size
- 120–500 mm
- Speed
- 3–5 pcs/min

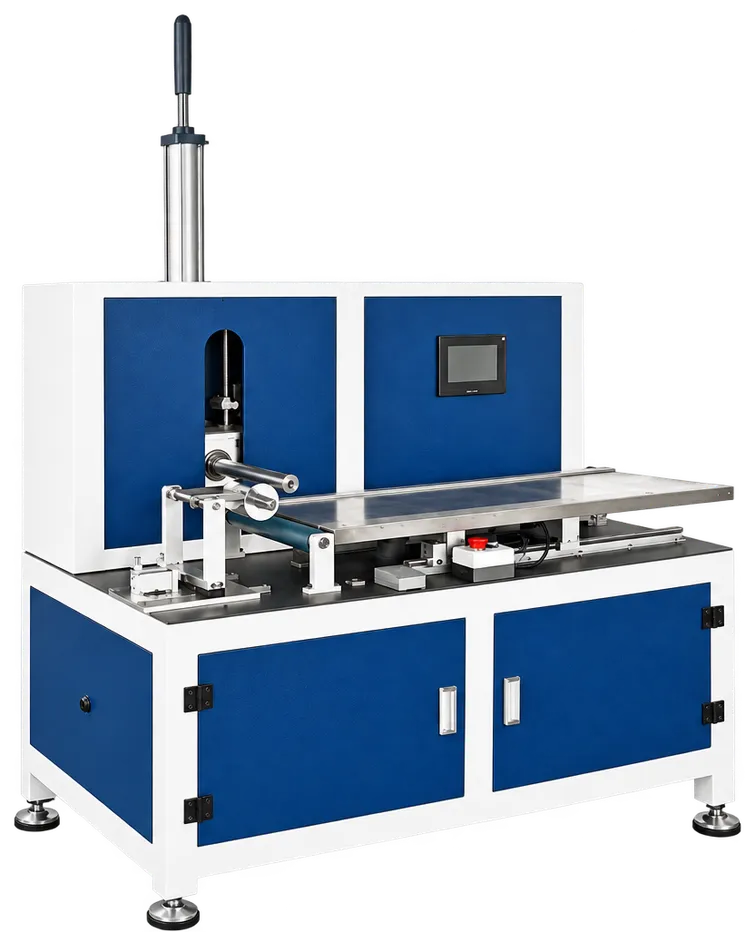

HF-500ASemi-automaticRound Box Labeling Machine (Servo)
- Max. size
- 60–500 mm
- Speed
- 300–500 pcs/hour

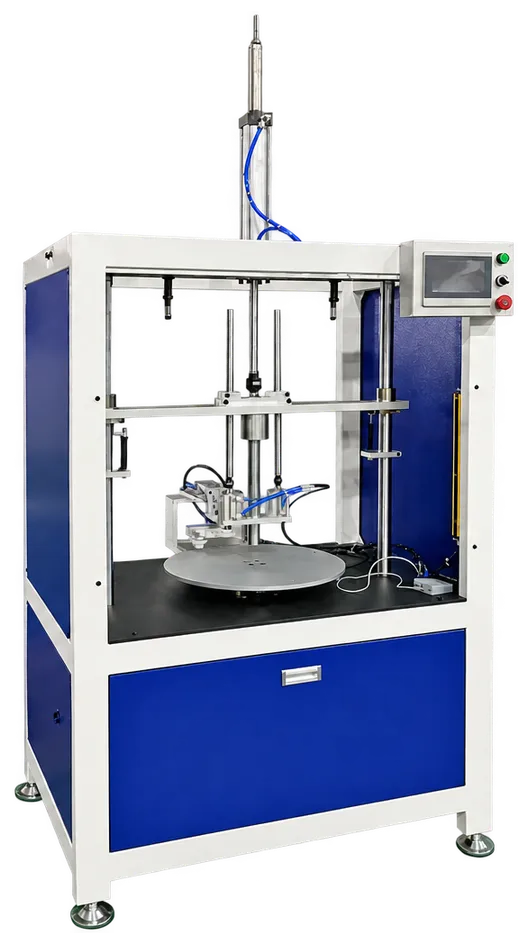

HF-480Semi-automaticRound Box Paper Folding Machine (Servo)
- Max. size
- 60–480 mm
- Speed
- 300–500 pcs/hour

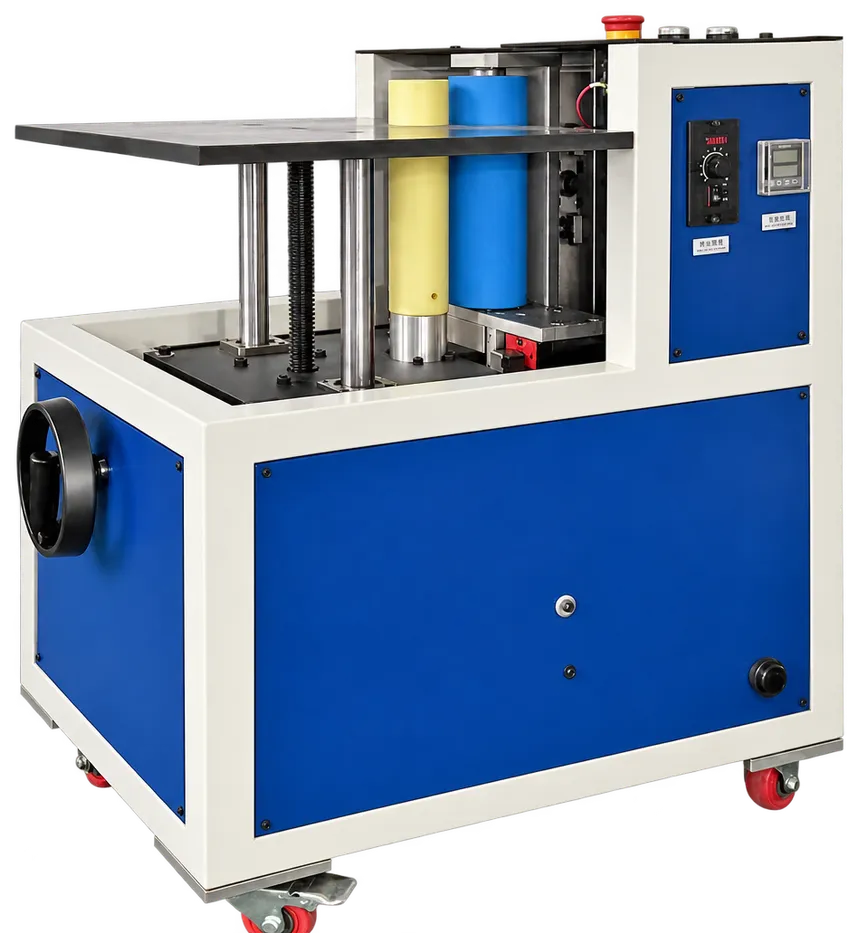

HF-530Semi-automaticRound Box Inner Bubble Pressing Machine
- Max. size
- 60–500 mm
- Speed
- 10 pcs/min
Categories at a glance
15 categories, what each one does.
| Category | What it does | Models |
|---|---|---|
| Collapsible Box Machines | Machines for collapsible (foldable) rigid boxes: side wing wrapping, visual positioning and final assembly. | HF-1150HF-8020HF-800DHF-1050 |
| Rigid Box Making Machines | Machines for lid-and-base rigid boxes: board grooving, corner pasting, paper gluing, forming, and a complete automatic line. | HF-5040HF-450HF-500HF-40HF-850AHF-1200 |
| Case Making Machines | Machines for hardcover cases: book-style box covers, folders, calendars and book covers. | HF-850AHF-550HF-900 |
| Visual Positioning Machines | Visual positioning lines that glue the cover paper and place the greyboard on it by camera and robot, for rigid boxes and hardcover cases. | HF-1050 |
| Rigid Box and Book Cover Assembly Machines | Machines that join an inner rigid box to a hardcover case to make a book-style box. | HF-8288HF-808 |
| Paper Card Box Forming Machines | Forming machines for card lids, bases and trays: cake boxes, dessert boxes and hardware boxes. | HF-4350HF-3250 |
| Drawer Box (Slipcase) Machines | Machines for drawer boxes, also called slipcase boxes: deep, narrow rigid boxes formed from V-grooved board. | HF-320HF-320A |
| Magnet, Iron Sheet and Drilling Machines | Drilling, magnet pasting and iron sheet pasting for magnetic-closure boxes. | HF-600BHF-600AHF-7090ZK |
| Cardboard Slitting Machines | Slitting full greyboard sheets into box and case panels. | HF-1300 |
| Glue Spray Machines | Programmed glue spraying on box walls, box bottoms and flat covers. | HF-600 |
| Round Box Machines: Curling Type | Machines for curled-edge round boxes made from paper tubes: labeling, curling and lid pressing. | HF-440HF-100HF-500B |
| Round Box Machines: Flat Type | Machines for flat-edge round rigid boxes: wall bending, wrapping, folding in and lining. | HF-500CHF-500AHF-480HF-530 |
| Carton Erecting, Sealing and Palletizing | End-of-line equipment for corrugated shipping cartons: erecting, sealing and palletizing. | HF-650HF-FA500HF-30Pro |
| Die Cutting Machines | Platen die cutting and creasing for paperboard, corrugated board and plastic sheet. | HF-1100 |
| UV Printing Machines | Flatbed UV printers that add colour, white ink, varnish and texture directly to packaging stock and finished objects, without plates. | HF-UV1290HF-UV1210 |
How to choose
Four questions, in this order.
- 01
Start from the box
Structure decides the process. A lid-and-base box, a book-style box and a collapsible box go through different machines, so pick the box type first.
See the six box types → - 02
Decide which steps to automate
Gluing and wrapping are done by machine either way. The choice is whether the shell is positioned on the paper by hand or by camera and robot.
Automatic vs semi-automatic → - 03
Match the speeds
A line runs at the speed of its slowest machine. Compare the rated speed of each step before adding capacity anywhere else.
How a rigid box line is built → - 04
Check sizes and power
Every machine page lists the largest and smallest job, the board and paper it takes, voltage, air supply, weight and footprint.
FAQ
Questions about the range.
How many machines does HORFON supply?
36 machines in 15 categories. 12 categories are rigid box equipment, including collapsible box, rigid box making, case making and visual positioning. 3 are supporting equipment: carton erecting, sealing and palletizing, die cutting and UV printing.
Which machines make a lid-and-base rigid box?
The semi-automatic set is four machines: the HF-1200 V grooving machine, the HF-500 corner pasting machine, the HF-850A paper gluing machine and the HF-450 box forming machine, running 15–20 pieces per minute. The HF-5040 does corner taping, gluing, camera positioning and wrapping in one machine at 18–25 pieces per minute.
Which machines position by camera?
The HF-1050 visual positioning line, the HF-550 case maker, the HF-8020 side wing machine and the HF-5040 rigid box machine all position to ±0.1 mm by camera. The HF-1150 collapsible box assembly machine uses three vision stations.
Which machines run on 220 V and which need 380 V?
6 machines need 380 V: HF-1150, HF-8020, HF-1050, HF-5040, HF-850A and HF-550. 23 machines list 220 V: HF-800D, HF-450, HF-500, HF-40, HF-1200, HF-900, HF-8288, HF-808, HF-4350, HF-3250, HF-650, HF-FA500, HF-30Pro, HF-320, HF-320A, HF-600B, HF-600A, HF-7090ZK, HF-600, HF-UV1210, HF-440, HF-100 and HF-500B. The specification table on each machine page gives the voltage, power and air supply.
Can I buy one machine, or only a complete line?
Either. Each machine works on its own, so a line can be bought in one order or built in stages. The box type pages show which machines make up a line and which machine sets its speed.
Does HORFON supply consumables for these machines?
Yes: greyboard for box and case panels, hot melt jelly glue for the gluing machines, and PVC tape for the corner pasting machines. Grades and sizes are confirmed with each quotation.
