HF-320AAutomatic Drawer Box Folding Machine
Hand-fed machine that folds the paper in and presses out bubbles on drawer boxes (slipcase boxes) and other narrow or irregular rigid boxes. Often paired with an older wrapping machine that cannot handle boxes narrower than 50 mm.
- Max standard box size
- 400 × 300 × 150mm
- Min standard box size
- 40 × 40 × 15mm
- Working speed
- 800–1200pcs/hour
- Power
- 1 kW / 220 V
ASize range
| Parameter | Min | Max |
|---|---|---|
| Standard box size (L × W × H) | 40 × 40 × 15 mm | 400 × 300 × 150 mm |
| Sizes outside this range | Can be customised | |
BMaterial
| Feeding | Manual |
CPerformance
| Working speed | 800–1200 pcs/hour |
DElectrical & footprint
| Power | 1 kW / 220 V |
| Air pressure | 0.6 MPa |
| Machine weight | 500 kg |
| Machine dimensions (L × W × H) | 1110 × 970 × 2280 mm |
1110
970
1.1 m² floor area, mm
Features
How the HF-320A is built.
- 01
No installation: plug in and run.
- 02
Touch-screen control.
- 03

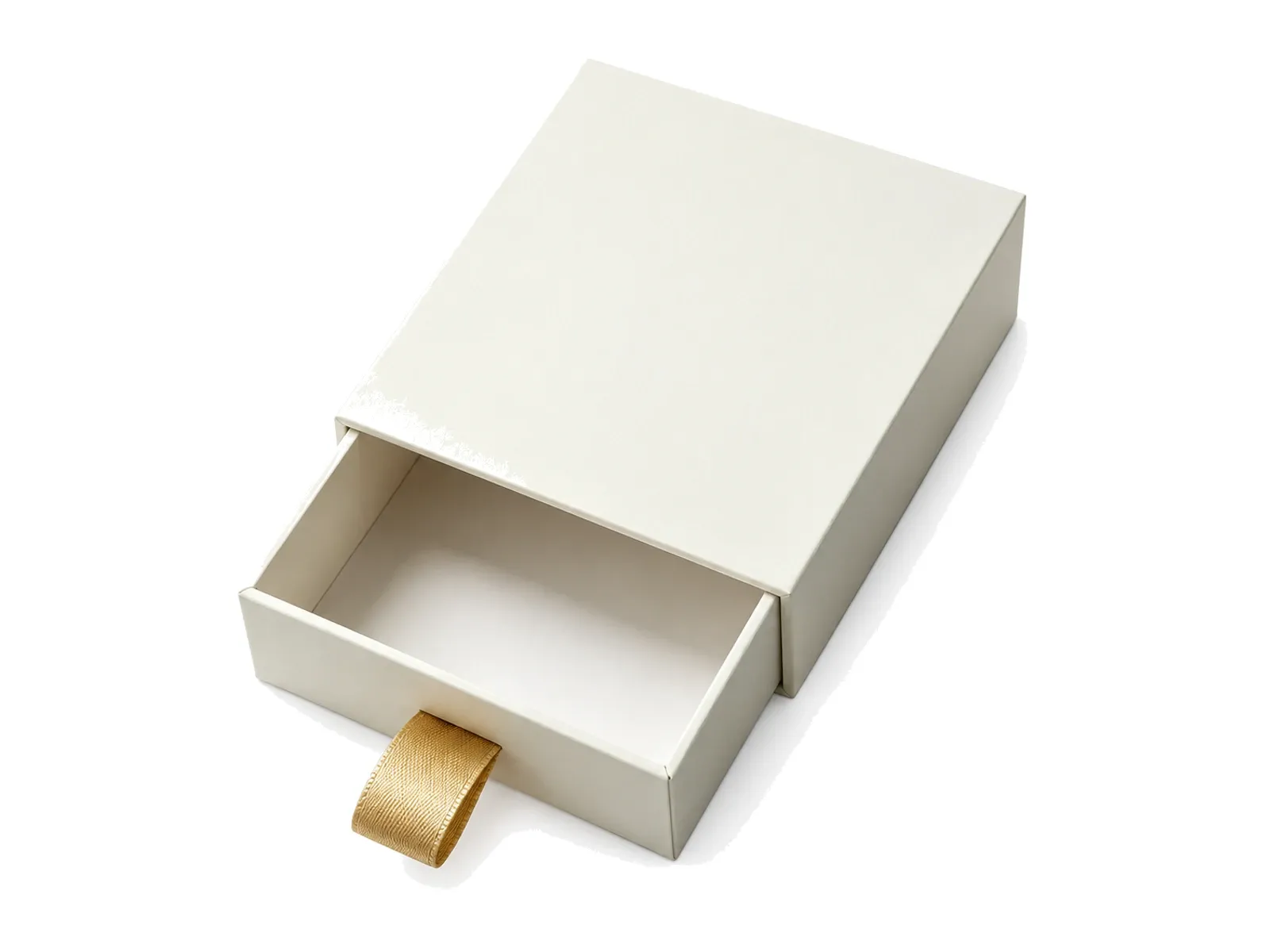

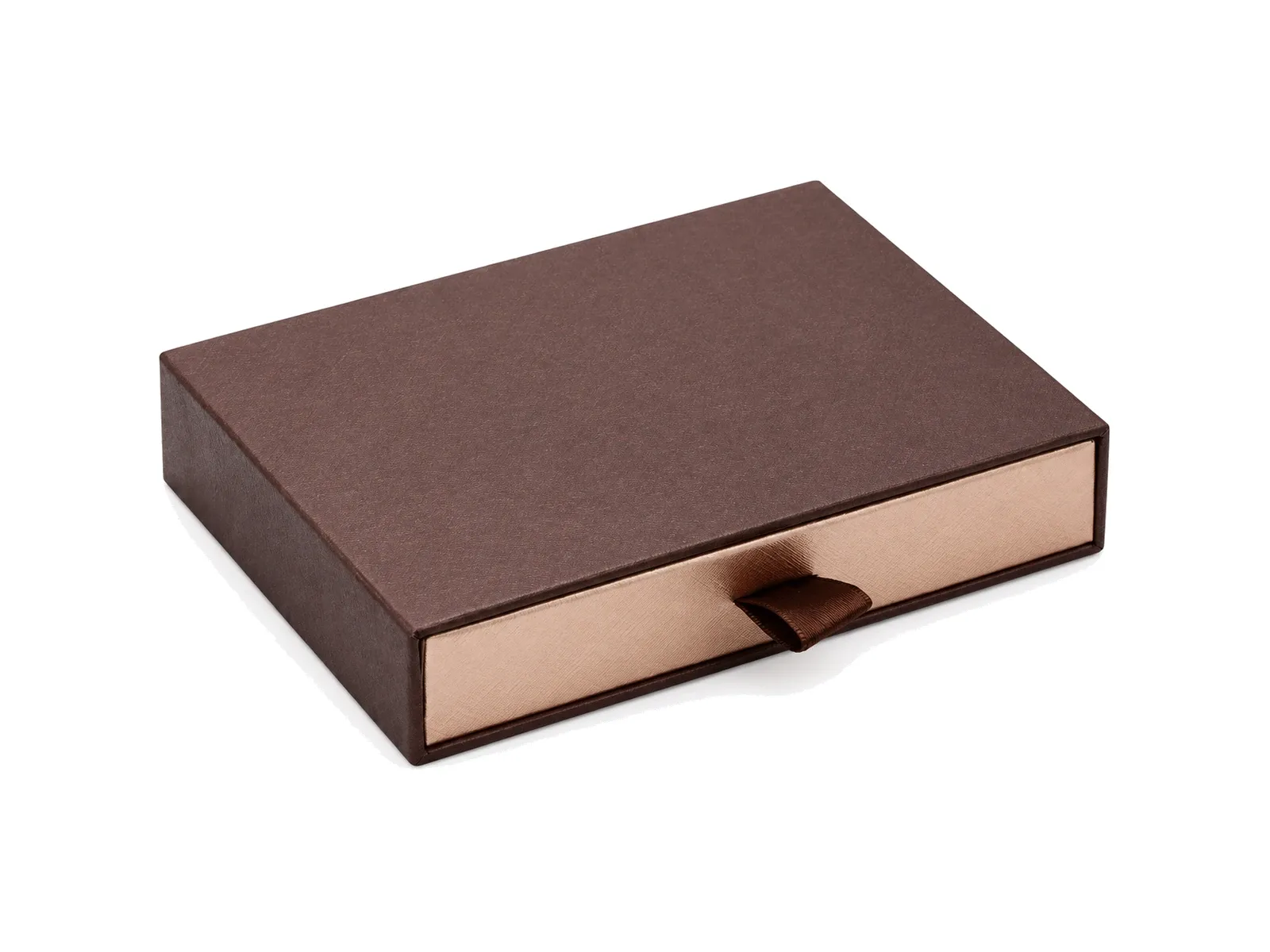

Makes slipcase bottoms and paperless inner boxes for book-style boxes.
- 04
Can be used for bubble pressing or edge pressing only.
- 05
With extra parts it handles hexagonal and octagonal boxes.
Line position
Where the HF-320A sits in a line.
This machine
After
Ends the sequence: the piece leaves this machine finished for this stage.
FAQ
Questions about the HF-320A.
What sizes does the HF-320A handle?
For the HF-320A, max standard box size (L × W × H): 400 × 300 × 150 mm; min standard box size (L × W × H): 40 × 40 × 15 mm.
How fast is the HF-320A?
The HF-320A runs at 800–1200 pcs/hour. Speed is counted in single pieces, not sets.
What power and air supply does the HF-320A need?
The HF-320A needs power: 1 kW / 220 V; air pressure: 0.6 MPa.
How large and heavy is the HF-320A?
For the HF-320A, machine weight: 500 kg; machine dimensions (L × W × H): 1110 × 970 × 2280 mm.
Which machines work with the HF-320A?
It is fed by the HF-320 Automatic Drawer Box (Slipcase) Forming Machine. Which of these you need depends on the box structure and how much of the line is already in place.
