HF-320Automatic Drawer Box (Slipcase) Forming Machine

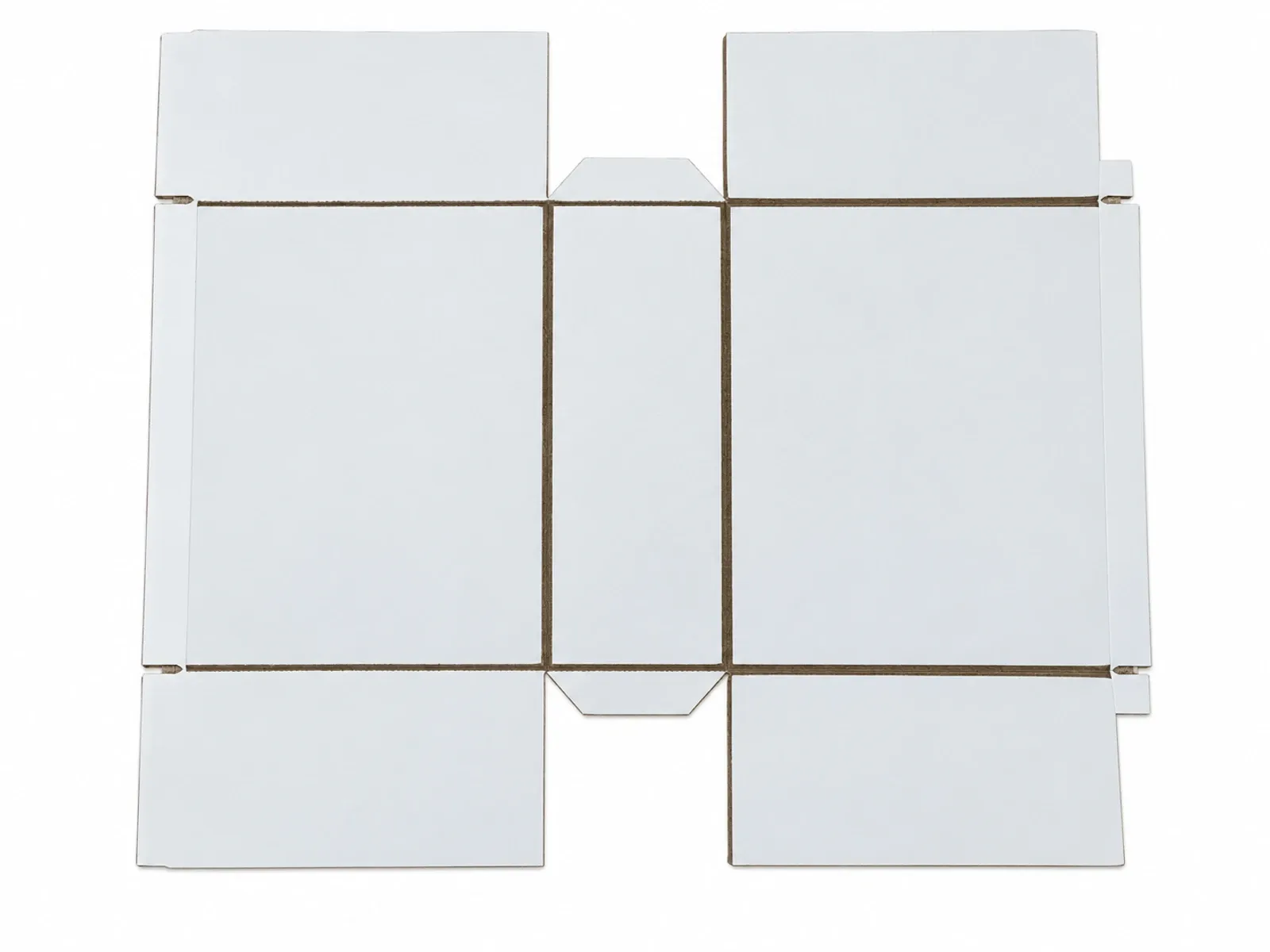

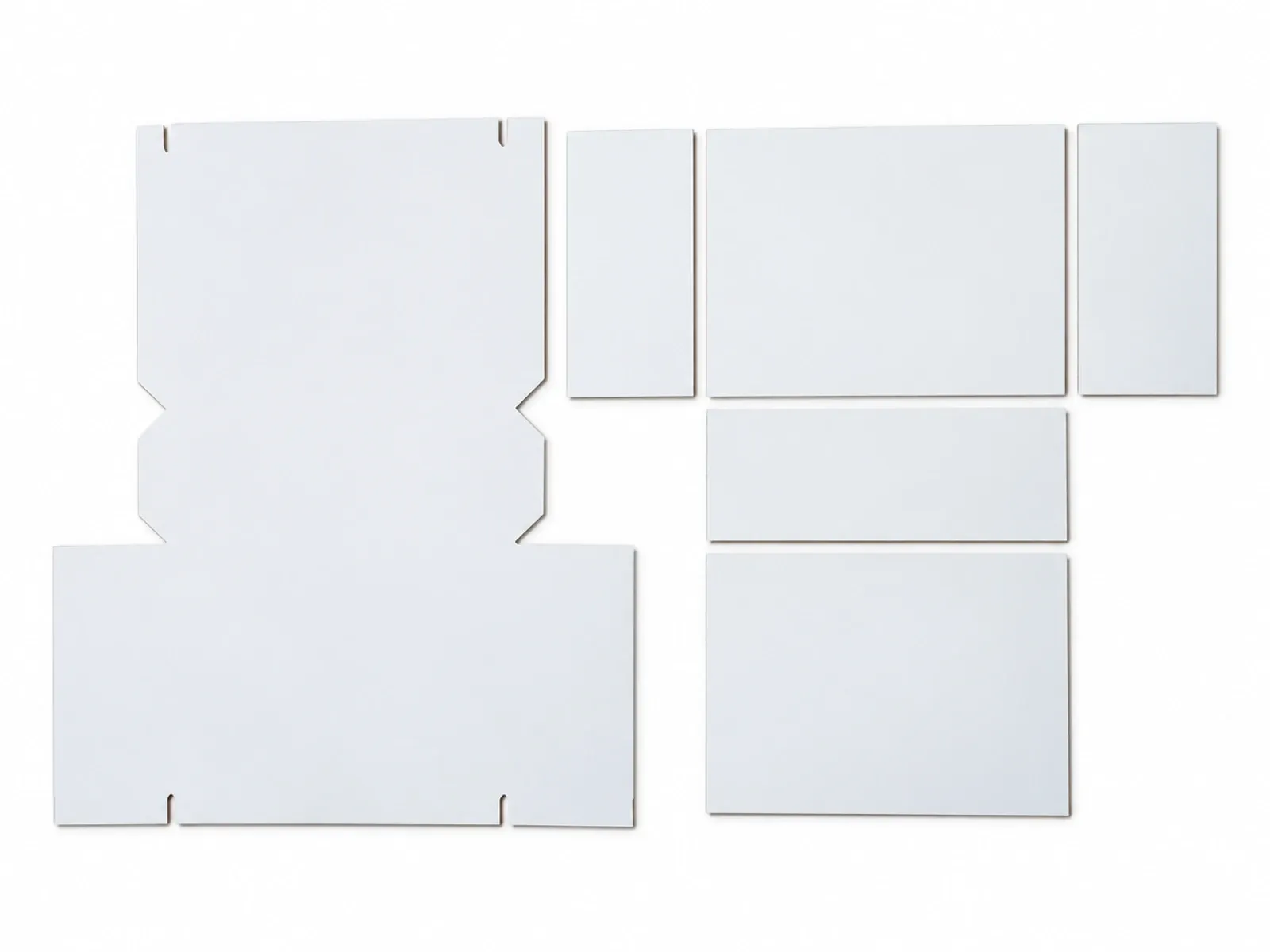

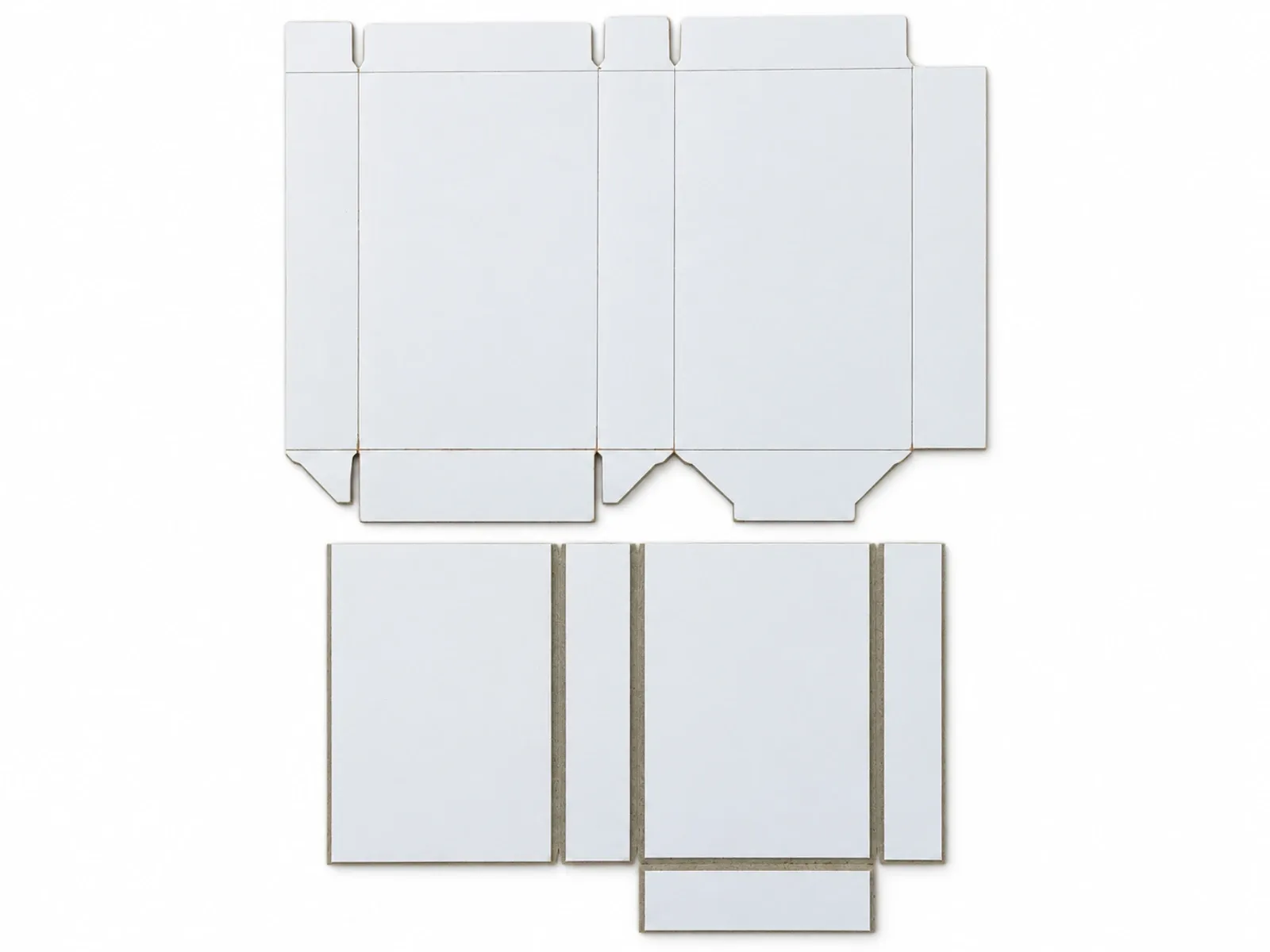

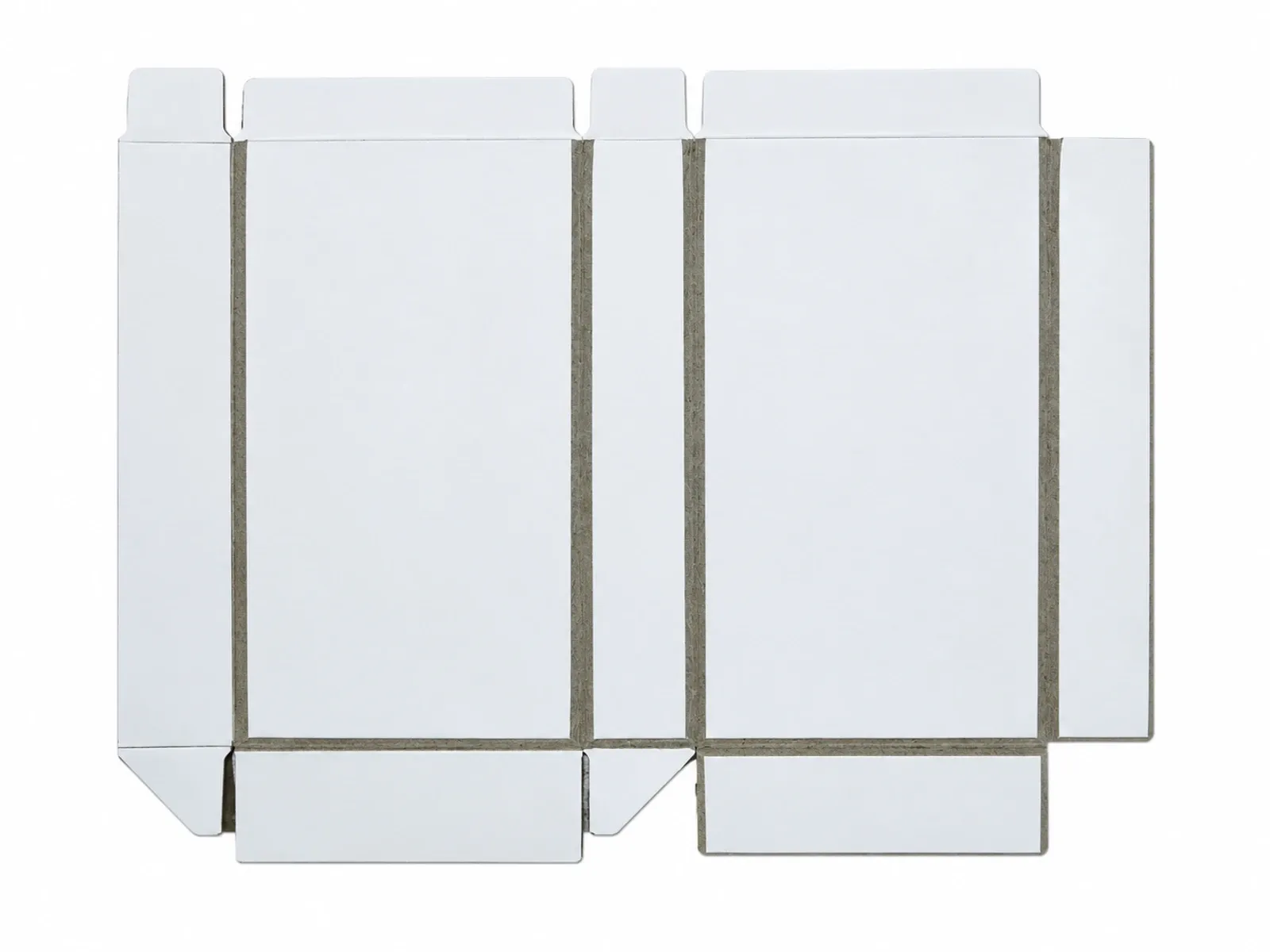

Forms drawer boxes (slipcase boxes), the deep, narrow kind of rigid box, from V-grooved board in one pass. A suction system holds the board, so no corner taping is needed.
- Max standard box size
- 350 × 120 × 320mm
- Min standard box size
- 35 × 35 × 100mm
- Working speed
- 600–1000pcs/hour
- Power
- 1 kW / 220 V
ASize range
| Parameter | Min | Max |
|---|---|---|
| Standard box size (L × W × H) | 35 × 35 × 100 mm | 350 × 120 × 320 mm |
| Box width | 35 mm | — |
| Sizes outside this range | Can be customised | |
BPerformance
| Working speed | 600–1000 pcs/hour |
CElectrical & footprint
| Power | 1 kW / 220 V |
| Air pressure | 0.7 MPa |
| Machine weight | 600 kg |
| Machine dimensions (L × W × H) | 1800 × 1400 × 2000 mm |
1800
1400
2.5 m² floor area, mm
Line position
Where the HF-320 sits in a line.
This machine
FAQ
Questions about the HF-320.
What sizes does the HF-320 handle?
For the HF-320, max standard box size (L × W × H): 350 × 120 × 320 mm; min standard box size (L × W × H): 35 × 35 × 100 mm; min box width: 35 mm.
How fast is the HF-320?
The HF-320 runs at 600–1000 pcs/hour. Speed is counted in single pieces, not sets.
What power and air supply does the HF-320 need?
The HF-320 needs power: 1 kW / 220 V; air pressure: 0.7 MPa.
How large and heavy is the HF-320?
For the HF-320, machine weight: 600 kg; machine dimensions (L × W × H): 1800 × 1400 × 2000 mm.
Which machines work with the HF-320?
It is fed by the HF-1200 Automatic V Grooving Machine, and it feeds the HF-320A Automatic Drawer Box Folding Machine. Which of these you need depends on the box structure and how much of the line is already in place.
