HF-4350Automatic Paper Box Forming Machine (Single Station)

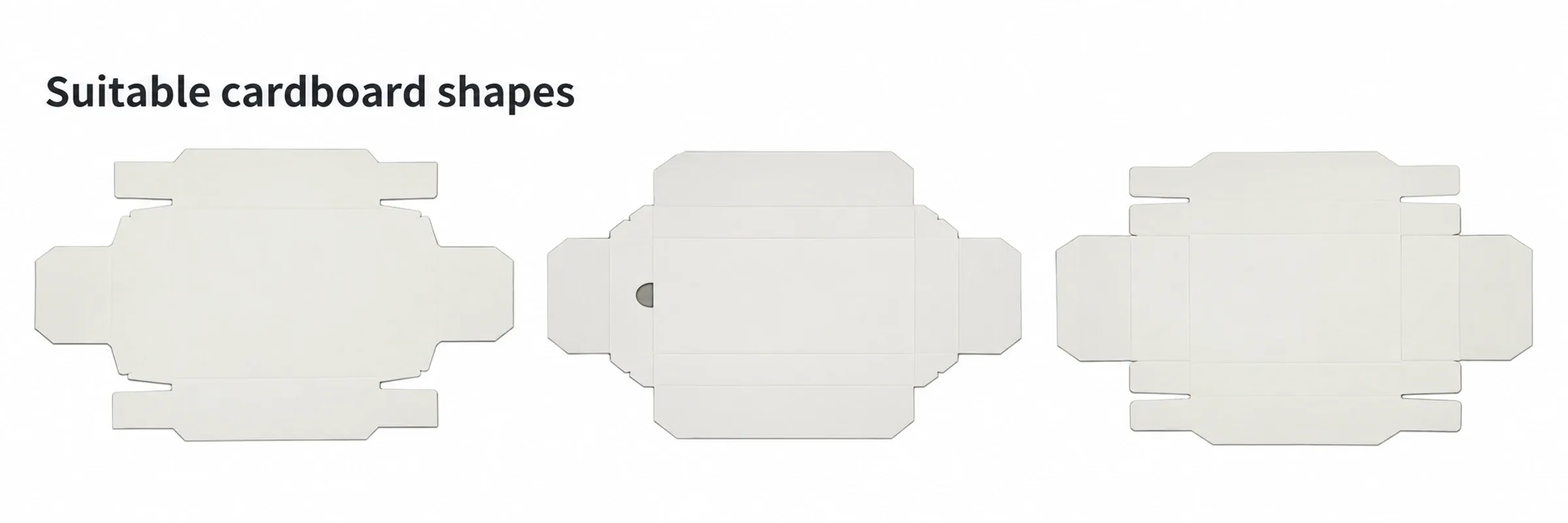

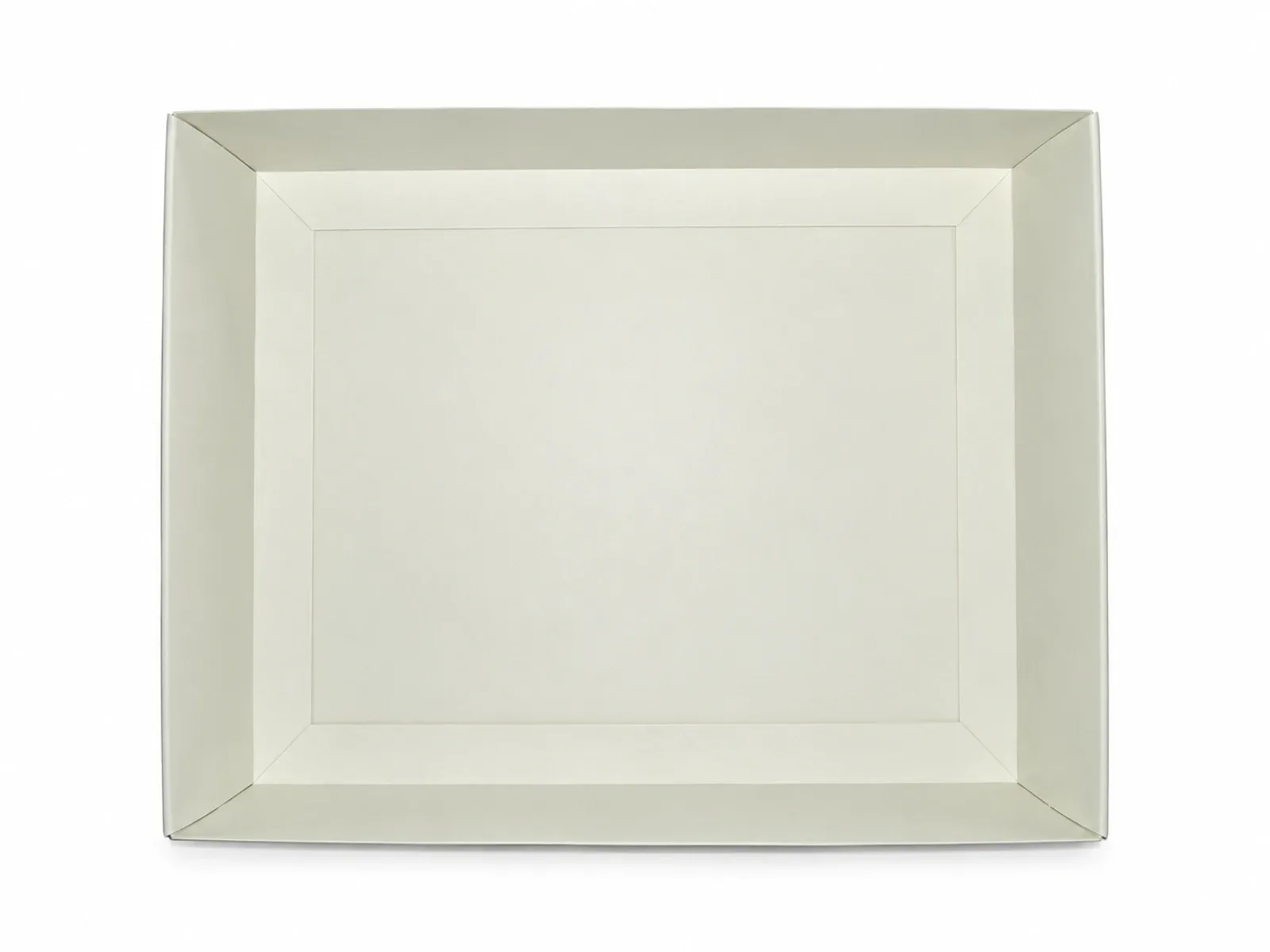

Forms flat card blanks of 210–350 g board into three-dimensional lids, bases and trays for cake, dessert and hardware boxes. Finished boxes are stacked at the exit.
- Max finished box size
- 400 × 350 × 100mm
- Min finished box size
- 100 × 80 × 18mm
- Speed
- 17–23pcs/min
- Machine power
- 3.5kW
ASize range
| Parameter | Min | Max |
|---|---|---|
| Blank length | 220–700 mm | |
| Blank width | 200–680 mm | |
| Finished box size (L × W × H) | 100 × 80 × 18 mm | 400 × 350 × 100 mm |
BMaterial
| Box styles | 2: long edge not pressing the short edge; long edge pressed over the short edge |
| Material | 210–350 g/m² white cardboard, kraft paper and similar; also corrugated board |
| Loading height | 0.6 m (lifting platform) |
| Refill interval | 40–50 minutes |
CPerformance
| Speed | 17–23 pcs/min |
DElectrical & footprint
| Machine power | 3.5 kW |
| Voltage | 220 V |
| Air supply | 0.6–0.8 MPa |
| Machine dimensions (L × W × H) | 3800 × 1300 × 2000 mm, including conveyor |
3800
1300
4.9 m² floor area, mm
Features
How the HF-4350 is built.
- 01
PLC control with a movable touch screen.
- 02
Lifting platform for the blank stack.
- 03
Servo-controlled forming station (lengthwise), adjusted by entering parameters.
- 04
Compact footprint.
- 05
Control and pneumatic parts from Xinje, Airtac and Delixi.
FAQ
Questions about the HF-4350.
What sizes does the HF-4350 handle?
For the HF-4350, blank length: 220–700 mm; blank width: 200–680 mm; max finished box size (L × W × H): 400 × 350 × 100 mm; min finished box size (L × W × H): 100 × 80 × 18 mm.
How fast is the HF-4350?
The HF-4350 runs at 17–23 pcs/min. Speed is counted in single pieces, not sets.
What materials can the HF-4350 run?
On the HF-4350, material: 210–350 g/m² white cardboard, kraft paper and similar; also corrugated board.
What power and air supply does the HF-4350 need?
The HF-4350 needs machine power: 3.5 kW; voltage: 220 V; air supply: 0.6–0.8 MPa.
How large and heavy is the HF-4350?
For the HF-4350, machine dimensions (L × W × H): 3800 × 1300 × 2000 mm, including conveyor.
