HF-1200Automatic V Grooving Machine

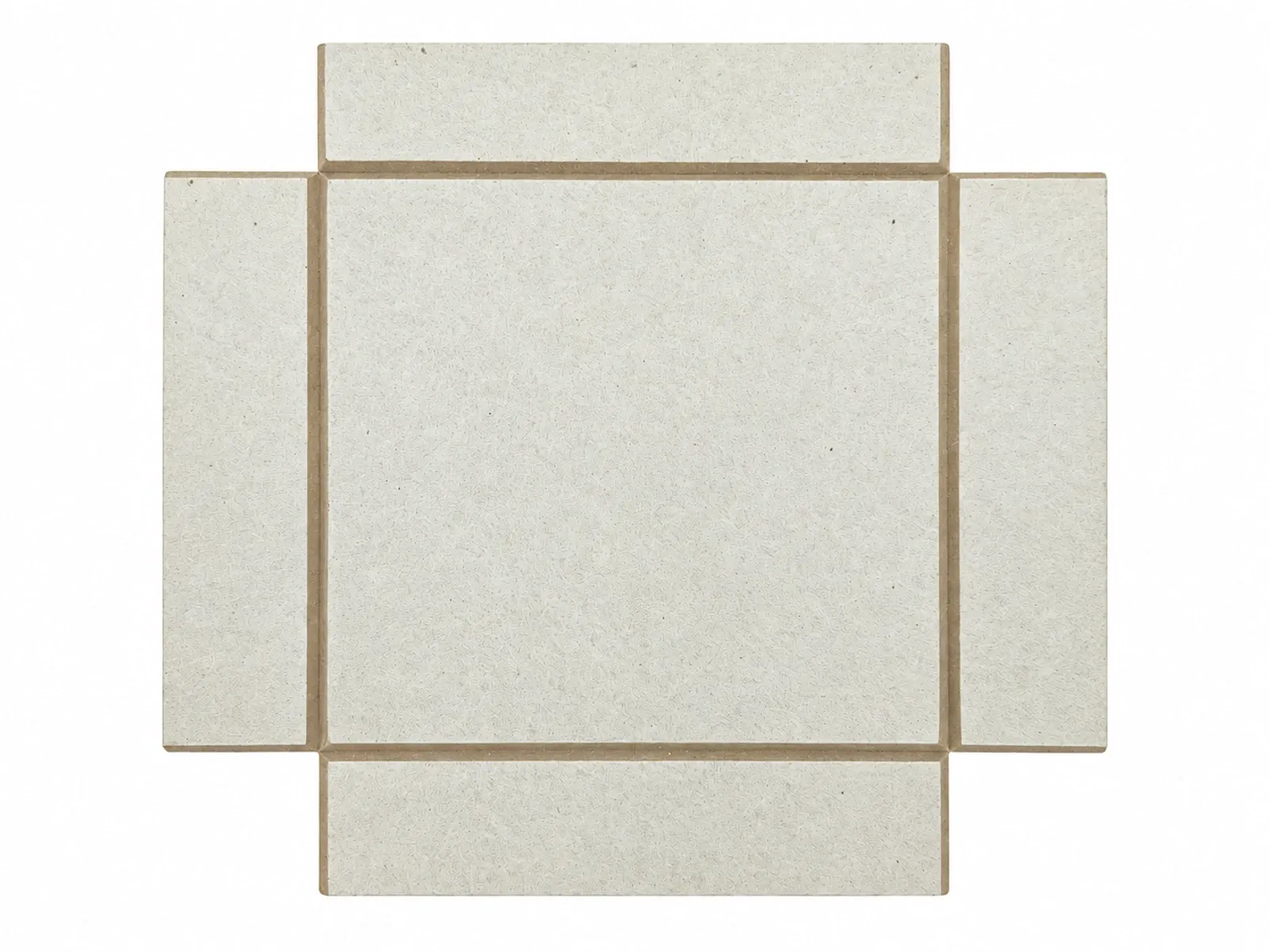

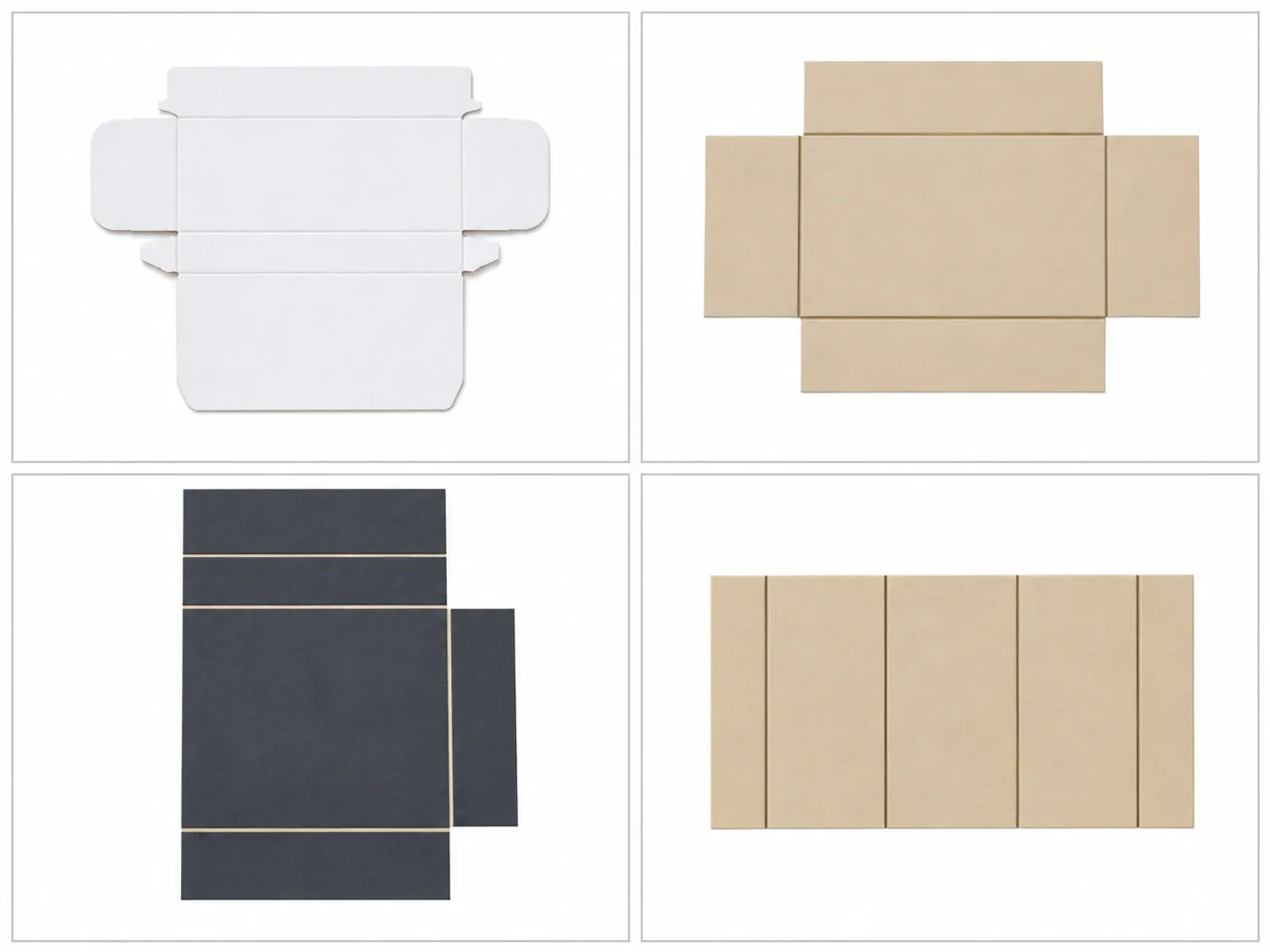

Cuts V-grooves in greyboard and MDF so the board folds into sharp box and case edges. Up to 8 grooves per pass.

Cardboard width: 100–950mm
Cardboard length: 120–1000mm
Working speed: 25–50m/min
Precision: ±0.05–0.1mm
Power: 2.2 kW / 220 V

Specifications

ASize range

Cardboard width	100–950 mm
Cardboard length	120–1000 mm
Groove angle	80–120° or 120–140°
Max number of grooves	8

BMaterial

Cardboard thickness

0.8–4 mm

CPerformance

Precision	±0.05–0.1 mm
Working speed	25–50 m/min

DElectrical & footprint

Air supply	0.6–0.8 MPa
Power	2.2 kW / 220 V
Machine weight	1,400 kg
Machine dimensions (L × W × H)	2100 × 1430 × 1500 mm

Footprint · to scale

2100

1430

3 m² floor area, mm

Features

How the HF-1200 is built.

01
Clean groove: no burrs, no dust, smooth V surface.
02
Offcuts come out as intact continuous strips.
03
Grooves horizontally and vertically, and can work both sides at once.
04
Blade sharpener supplied with the machine; sharpening a blade takes 1.5–2 minutes.
05
Two independent clamped blades: the angle is adjusted on the machine, so different angles do not need custom blades.
06
Automatic alignment correction, electronic counting and variable-frequency speed control.

Line position

Where the HF-1200 sits in a line.

Before

HF-1300Automatic Cardboard Slitting Machine

This machine

HF-1200Rigid Box Making · 25–50 m/min

After

HF-500Automatic Rigid Box Corner Pasting Machine

HF-550Automatic Case Making Machine

HF-320Automatic Drawer Box (Slipcase) Forming Machine

FAQ

Questions about the HF-1200.

What sizes does the HF-1200 handle?

For the HF-1200, cardboard width: 100–950 mm; cardboard length: 120–1000 mm.

How fast is the HF-1200?

The HF-1200 runs at 25–50 m/min.

What materials can the HF-1200 run?

On the HF-1200, cardboard thickness: 0.8–4 mm.

What power and air supply does the HF-1200 need?

The HF-1200 needs air supply: 0.6–0.8 MPa; power: 2.2 kW / 220 V.

How large and heavy is the HF-1200?

For the HF-1200, machine weight: 1,400 kg; machine dimensions (L × W × H): 2100 × 1430 × 1500 mm.

Which machines work with the HF-1200?

It is fed by the HF-1300 Automatic Cardboard Slitting Machine, and it feeds the HF-500 Automatic Rigid Box Corner Pasting Machine, HF-550 Automatic Case Making Machine, HF-320 Automatic Drawer Box (Slipcase) Forming Machine. Which of these you need depends on the box structure and how much of the line is already in place.
