HF-5040Automatic Rigid Box Making Machine

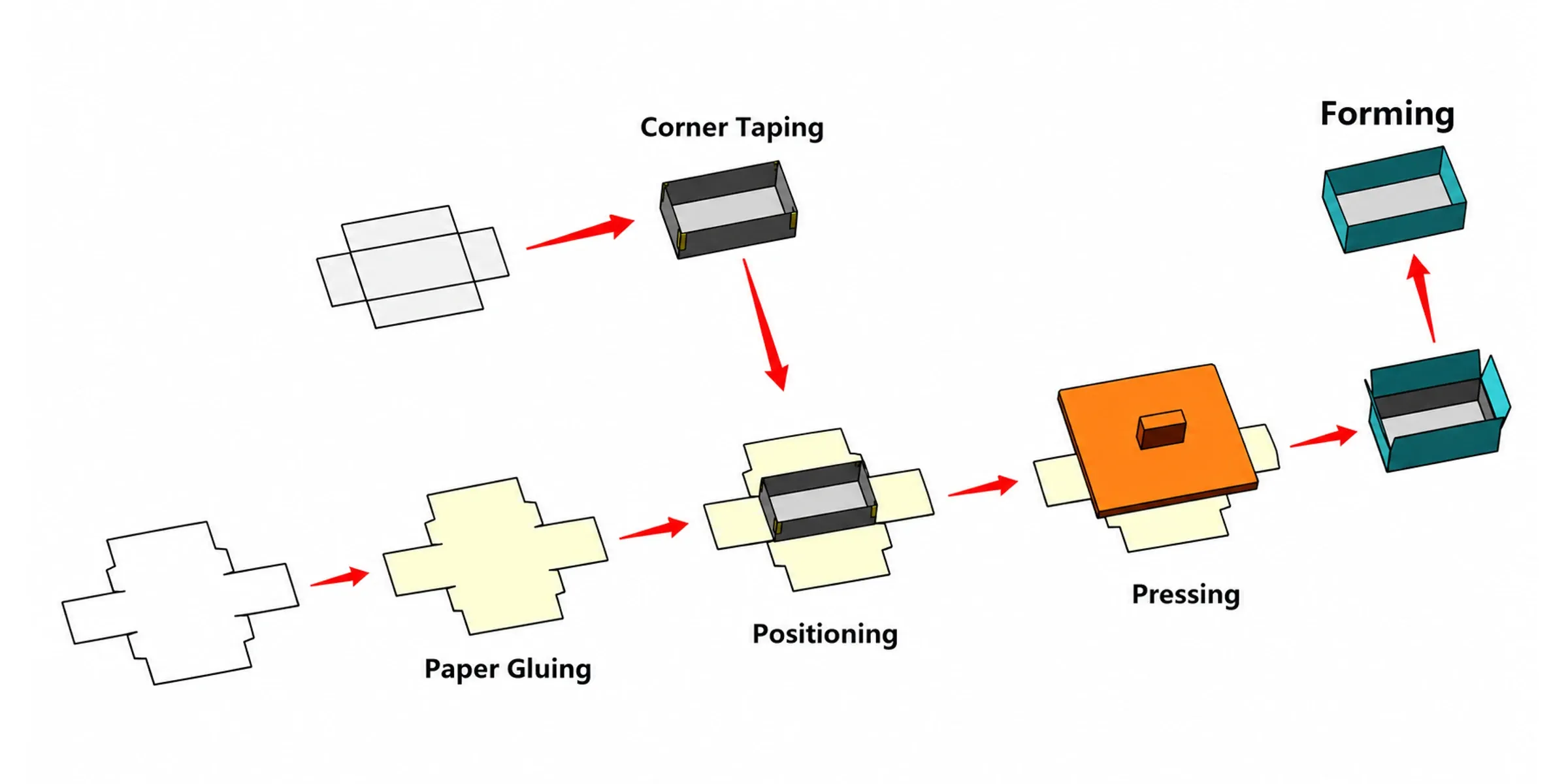

A complete rigid box line in one machine: paper feeding and gluing, corner taping of the greyboard, camera positioning of the box on the paper, and four-side wrapping.

Max box size: 500 × 400 × 120mm
Min box size: 65 × 65 × 20mm
Production speed: 18–25pcs/min
Positioning precision: ±0.1mm
Motor power: 15 kW / 380 V, 3-phase

Specifications

ASize range

Parameter	Min	Max
Paper size	Length 140–800 mm, width 100–600 mm
Box size (L × W × H)	65 × 65 × 20 mm	500 × 400 × 120 mm
Ear folding size	10–100 mm
Paper turn-in depth	10–80 mm
Cardboard size (L × W)	—	700 × 600 mm

BMaterial

Paper weight	80–300 g/m²
Paper stacking height	500 mm
Cardboard thickness	1–3 mm
Cardboard stacking height	1000 mm

CPerformance

Production speed	18–25 pcs/min
Positioning precision	±0.1 mm
Control system	Panasonic PLC, Delta servo motors and VFD, Yamaha positioning system

DElectrical & footprint

Motor power	15 kW / 380 V, 3-phase
Heating power	6 kW
Air supply	30 L/min at 0.8 MPa
Machine dimensions (L × W × H)	8200 × 4200 × 2150 mm

Footprint · to scale

8200

4200

34.4 m² floor area, mm

Features

How the HF-5040 is built.

01
Camera positioning with a robot arm that clamps and places the box.
02
Digital size adjustment: servo and pneumatic wrapping unit set from the screen.
03
Servo paper feeder (rear suction, front push) that prevents two sheets entering together.
04
Copper scraper in line contact with the glue roller for longer scraper life.
05
Optional automatic glue viscosity meter.

Applications

What the HF-5040 makes.

Jewelry boxes
Mobile phone boxes
Sweet and chocolate boxes
Gift boxes
Tea boxes
Watch boxes
Belt boxes
Cosmetic boxes
Mooncake boxes

Line position

Where the HF-5040 sits in a line.

Before

HF-1300Automatic Cardboard Slitting Machine

HF-1200Automatic V Grooving Machine

This machine

HF-5040Rigid Box Making · 18–25 pcs/min

After

Ends the sequence: the piece leaves this machine finished for this stage.

FAQ

Questions about the HF-5040.

What sizes does the HF-5040 handle?

For the HF-5040, paper size: Length 140–800 mm, width 100–600 mm; max box size (L × W × H): 500 × 400 × 120 mm; min box size (L × W × H): 65 × 65 × 20 mm; max cardboard size (L × W): 700 × 600 mm.

How fast is the HF-5040?

The HF-5040 runs at 18–25 pcs/min. Speed is counted in single pieces, not sets.

What materials can the HF-5040 run?

On the HF-5040, paper weight: 80–300 g/m²; cardboard thickness: 1–3 mm.

What power and air supply does the HF-5040 need?

The HF-5040 needs motor power: 15 kW / 380 V, 3-phase; heating power: 6 kW; air supply: 30 L/min at 0.8 MPa.

How large and heavy is the HF-5040?

For the HF-5040, machine dimensions (L × W × H): 8200 × 4200 × 2150 mm.

Which machines work with the HF-5040?

It is fed by the HF-1300 Automatic Cardboard Slitting Machine, HF-1200 Automatic V Grooving Machine. Which of these you need depends on the box structure and how much of the line is already in place.
