HF-500Automatic Rigid Box Corner Pasting Machine

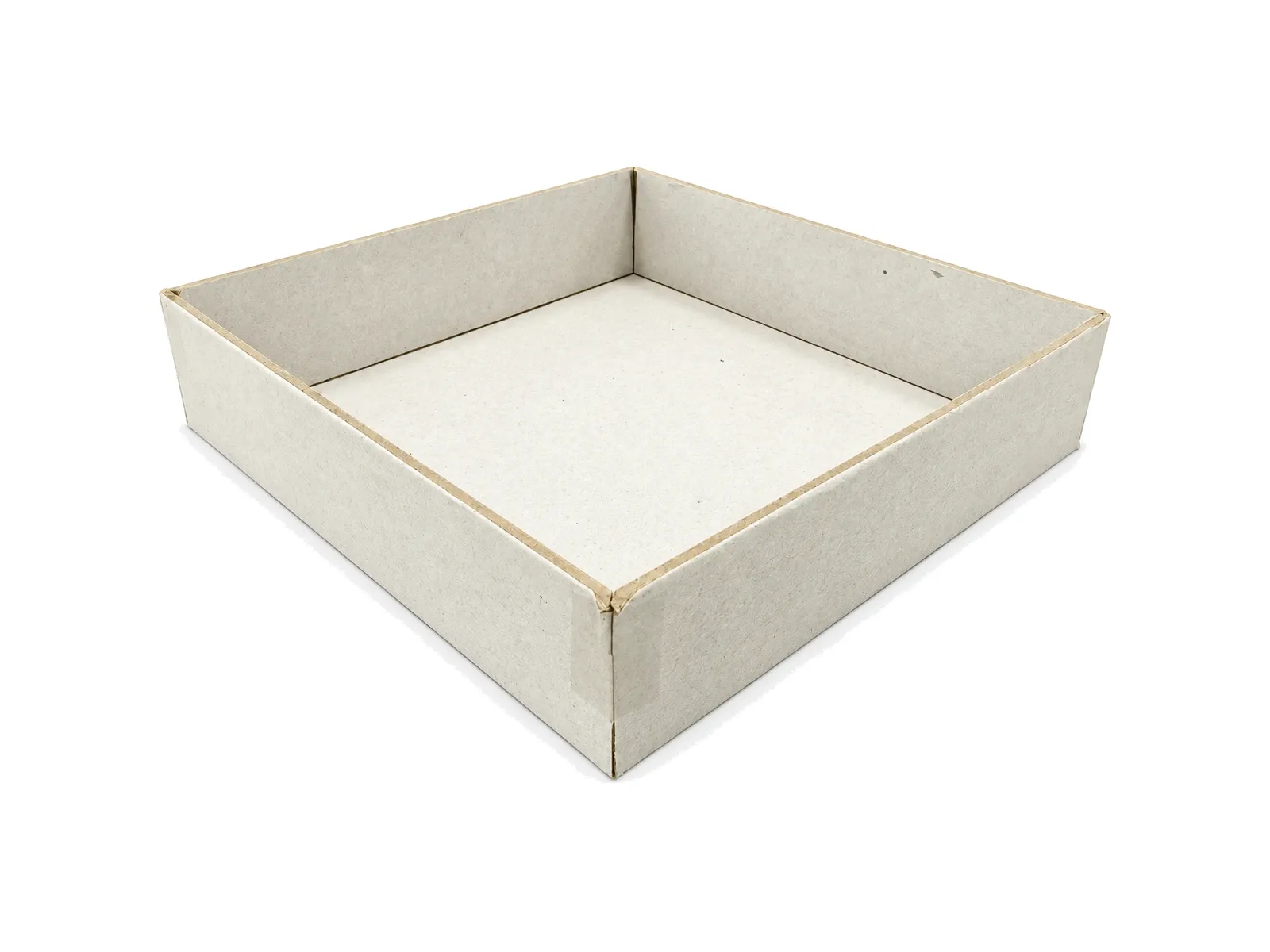

Tapes all four corners of the greyboard box shell in one stroke, ready for wrapping. Runs PVC, PET or paper tape.

Max finished box size: 480 × 450 × 150mm
Min finished box size: 45 × 45 × 10mm
Production speed: 30–55pcs/min
Machine power: 2.5 kW / 220 V

Specifications

ASize range

Parameter	Min	Max
Finished box size (L × W × H)	45 × 45 × 10 mm	480 × 450 × 150 mm
Cardboard size (L × W)	—	660 × 600 mm

BMaterial

Cardboard thickness	0.8–4 mm
Tape	PVC, PET or paper tape; 15, 19 or 24 mm wide

CPerformance

Production speed	30–55 pcs/min
Adjustment	Electronic plus manual

DElectrical & footprint

Air supply	0.6–0.8 MPa
Machine power	2.5 kW / 220 V
Machine weight	1,000 kg
Machine dimensions (L × W × H)	1750 × 1160 × 1920 mm

Footprint · to scale

1750

1160

2 m² floor area, mm

Features

How the HF-500 is built.

01
Delta PLC with touch screen.
02
Delta servo motor and VFD.
03
Four corners taped at once, which keeps the corners uniform and cuts rejects.
04
One machine covers a wide range of box sizes with simple adjustment.

Line position

Where the HF-500 sits in a line.

Before

HF-1200Automatic V Grooving Machine

This machine

HF-500Rigid Box Making · 30–55 pcs/min

After

HF-1050Automatic Visual Positioning Machine for Rigid Box and Hardcover

HF-450Automatic Rigid Box Forming Machine

FAQ

Questions about the HF-500.

What sizes does the HF-500 handle?

For the HF-500, max finished box size (L × W × H): 480 × 450 × 150 mm; min finished box size (L × W × H): 45 × 45 × 10 mm; max cardboard size (L × W): 660 × 600 mm.

How fast is the HF-500?

The HF-500 runs at 30–55 pcs/min. Speed is counted in single pieces, not sets.

What materials can the HF-500 run?

On the HF-500, cardboard thickness: 0.8–4 mm; tape: PVC, PET or paper tape; 15, 19 or 24 mm wide.

What power and air supply does the HF-500 need?

The HF-500 needs air supply: 0.6–0.8 MPa; machine power: 2.5 kW / 220 V.

How large and heavy is the HF-500?

For the HF-500, machine weight: 1,000 kg; machine dimensions (L × W × H): 1750 × 1160 × 1920 mm.

Which machines work with the HF-500?

It is fed by the HF-1200 Automatic V Grooving Machine, and it feeds the HF-1050 Automatic Visual Positioning Machine for Rigid Box and Hardcover, HF-450 Automatic Rigid Box Forming Machine. Which of these you need depends on the box structure and how much of the line is already in place.
