HF-600ASemi Automatic Iron Sheet Pasting Machine

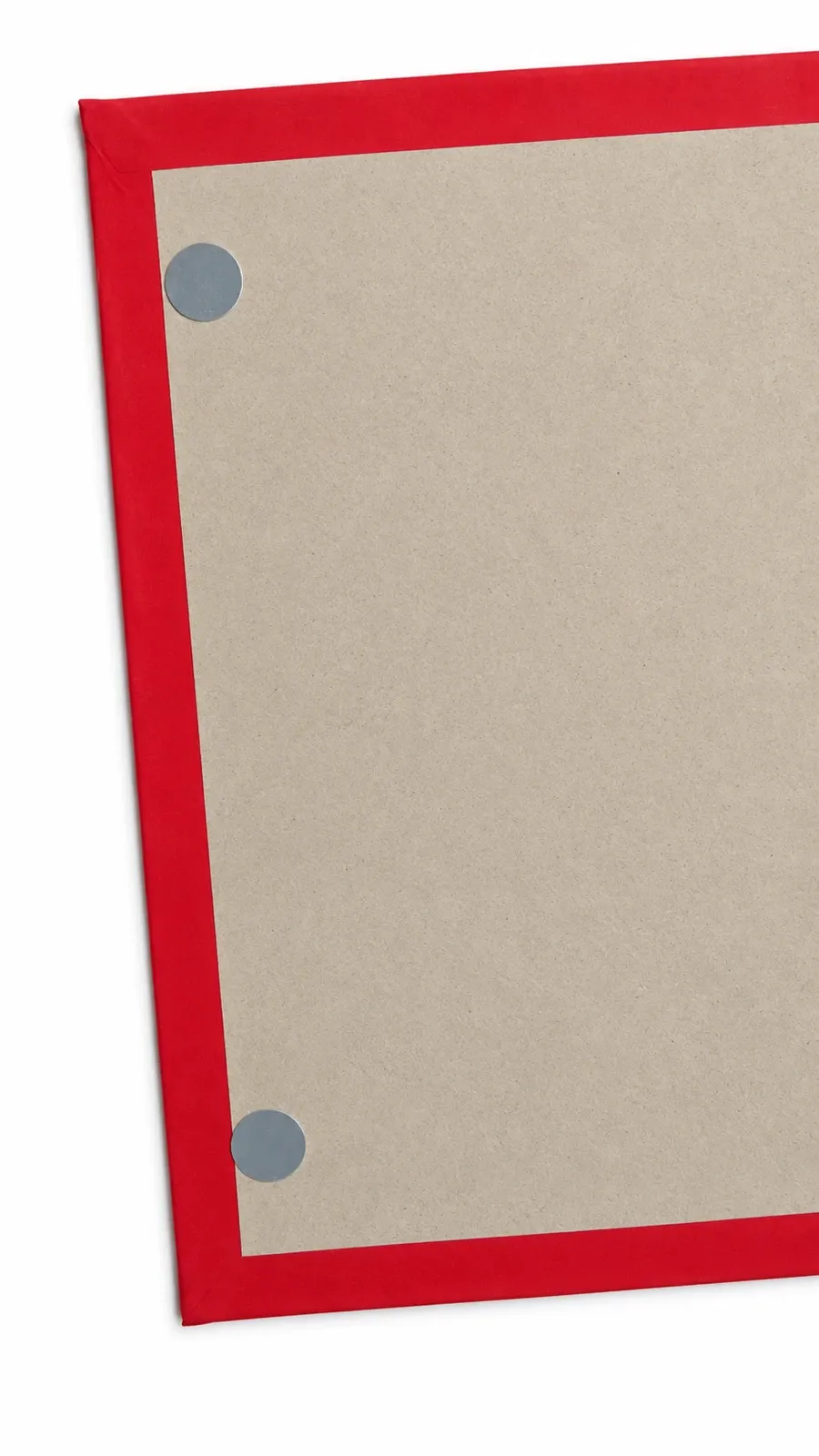

Glues the iron sheet that a magnet closes against into gift boxes, book-style cases and covers, at 30–45 pieces per minute.
- Max cardboard size
- 1000 × 600mm
- Min cardboard size
- 50 × 50mm
- Speed
- 30–45pcs/min
- Positioning accuracy
- ±0.5mm
- Power
- 1kW
ASize range
| Parameter | Min | Max |
|---|---|---|
| Cardboard size | 50 × 50 mm | 1000 × 600 mm |
| Gap between holes | 45–375 mm | |
| Distance from board edge | 1–150 mm | |
BMaterial
| Iron sheet size | Round φ8–20 mm; rectangular 8 × 10 to 15 × 20 mm |
| Cardboard thickness | 0.3–5 mm |
CPerformance
| Positioning accuracy | ±0.5 mm |
| Speed | 30–45 pcs/min |
DElectrical & footprint
| Air pressure | 0.6–0.8 MPa |
| Power supply | 220 V, 50–60 Hz |
| Power | 1 kW |
| Machine weight | 170 kg |
| Machine dimensions (L × W × H) | 1050 × 650 × 1500 mm |
1050
650
0.7 m² floor area, mm
FAQ
Questions about the HF-600A.
What sizes does the HF-600A handle?
For the HF-600A, max cardboard size: 1000 × 600 mm; min cardboard size: 50 × 50 mm.
How fast is the HF-600A?
The HF-600A runs at 30–45 pcs/min. Speed is counted in single pieces, not sets.
What materials can the HF-600A run?
On the HF-600A, iron sheet size: Round φ8–20 mm; rectangular 8 × 10 to 15 × 20 mm; cardboard thickness: 0.3–5 mm.
What power and air supply does the HF-600A need?
The HF-600A needs air pressure: 0.6–0.8 MPa; power supply: 220 V, 50–60 Hz; power: 1 kW.
How large and heavy is the HF-600A?
For the HF-600A, machine weight: 170 kg; machine dimensions (L × W × H): 1050 × 650 × 1500 mm.
