HF-7090ZKSemi Automatic Drilling Machine

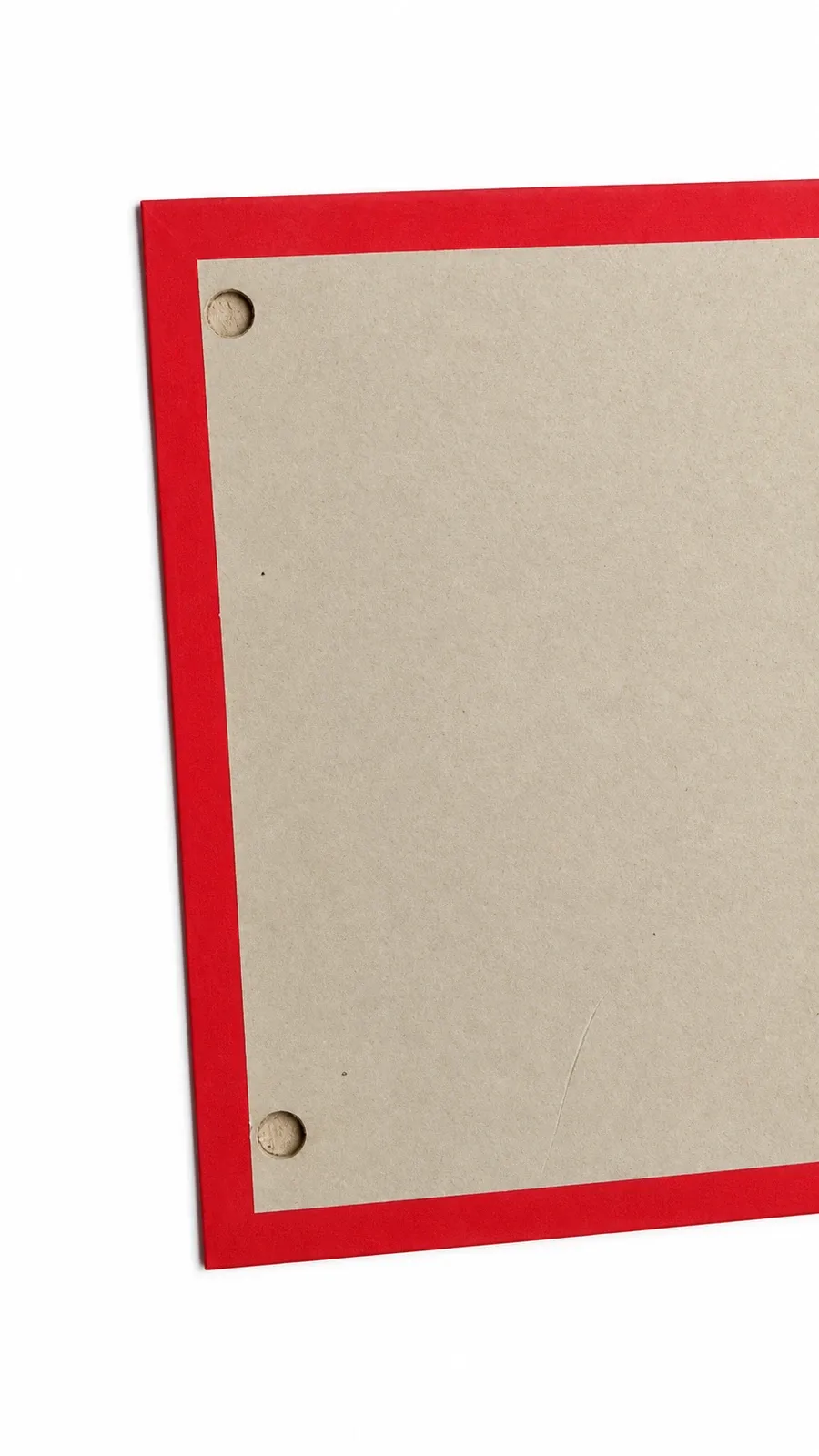

Drills the recesses in greyboard or MDF that magnets are set into, before magnet pasting. Hole size, depth and spacing are adjustable.
- Max cardboard size
- 900 × 700mm
- Speed
- 30pcs/min
- Positioning accuracy
- ±1–2mm
- Power
- 3kW
ASize range
| Max cardboard size | 900 × 700 mm |
| Drill diameter | φ8–20 mm |
| Gap between holes | 70–500 mm |
| Distance from board edge to hole | 0–130 mm |
BMaterial
| Cardboard thickness | 0.3–5 mm |
CPerformance
| Positioning accuracy | ±1–2 mm |
| Speed | Up to 30 pcs/min |
DElectrical & footprint
| Air pressure | 0.6–0.8 MPa |
| Power supply | 220 V, 50–60 Hz |
| Power | 3 kW |
| Machine weight | 150 kg |
| Machine dimensions (L × W × H) | 860 × 800 × 1500 mm |
860
800
0.7 m² floor area, mm
Features
How the HF-7090ZK is built.
- 01
PLC control with touch screen, servo motors and high-speed spindle.
Line position
Where the HF-7090ZK sits in a line.
Before
Starts the sequence: fed by hand or from a stack.
This machine
FAQ
Questions about the HF-7090ZK.
What sizes does the HF-7090ZK handle?
For the HF-7090ZK, max cardboard size: 900 × 700 mm; drill diameter: φ8–20 mm.
How fast is the HF-7090ZK?
The HF-7090ZK runs at Up to 30 pcs/min. Speed is counted in single pieces, not sets.
What materials can the HF-7090ZK run?
On the HF-7090ZK, cardboard thickness: 0.3–5 mm.
What power and air supply does the HF-7090ZK need?
The HF-7090ZK needs air pressure: 0.6–0.8 MPa; power supply: 220 V, 50–60 Hz; power: 3 kW.
How large and heavy is the HF-7090ZK?
For the HF-7090ZK, machine weight: 150 kg; machine dimensions (L × W × H): 860 × 800 × 1500 mm.
Which machines work with the HF-7090ZK?
It feeds the HF-600B Semi Automatic Magnet Pasting Machine. Which of these you need depends on the box structure and how much of the line is already in place.
