HF-550Automatic Case Making Machine

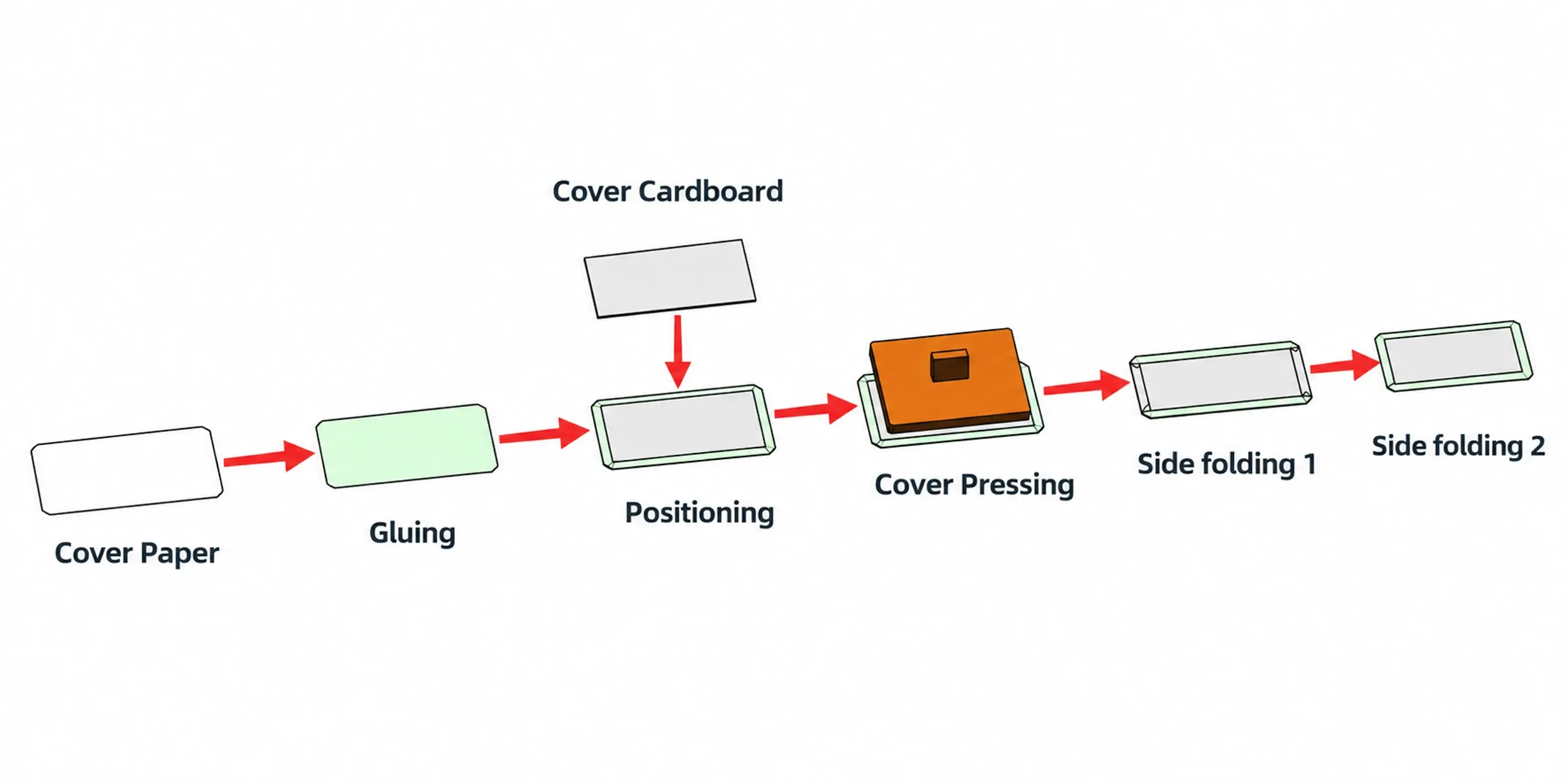

Makes finished hardcover cases up to 1000 × 500 mm in one machine: paper feeding and gluing, camera positioning of 1 to 6 boards with a Yamaha robot, then four-side wrapping.

Max finished cover size: 1000 × 500mm
Min finished cover size: 200 × 100mm
Production speed: 20–30pcs/min
Positioning precision: ±0.1mm
Motor power: 10.5 kW / 380 V, 3-phase

Specifications

ASize range

Parameter	Min	Max
Paper size	Length 140–1100 mm, width 100–560 mm
Finished cover size (L × W)	200 × 100 mm	1000 × 500 mm
Number of separate boards	1–6 pcs
Middle strip (spine)	10 mm	—

BMaterial

Paper weight	80–300 g/m²
Paper stacking height	300 mm
Cardboard thickness	1–4 mm

CPerformance

Production speed	20–30 pcs/min
Positioning precision	±0.1 mm

DElectrical & footprint

Air supply	10 L/min at 0.8 MPa
Motor power	10.5 kW / 380 V, 3-phase
Heating power	6 kW
Machine weight	3,000 kg
Machine dimensions (L × W × H)	10500 × 2050 × 2050 mm

Footprint · to scale

10500

2050

21.5 m² floor area, mm

Features

How the HF-550 is built.

01
Yamaha robot (10 kg class) for positioning.
02
Two Japanese-brand 10-megapixel cameras.
03
PLC control with touch screen.
04
Double-sheet detection on the paper feeder.
05
Short machine layout for easier operation.

Applications

What the HF-550 makes.

Wine box covers
Cigarette box covers
Mooncake box covers
Tea box covers
Mobile phone box covers
Cosmetic box covers

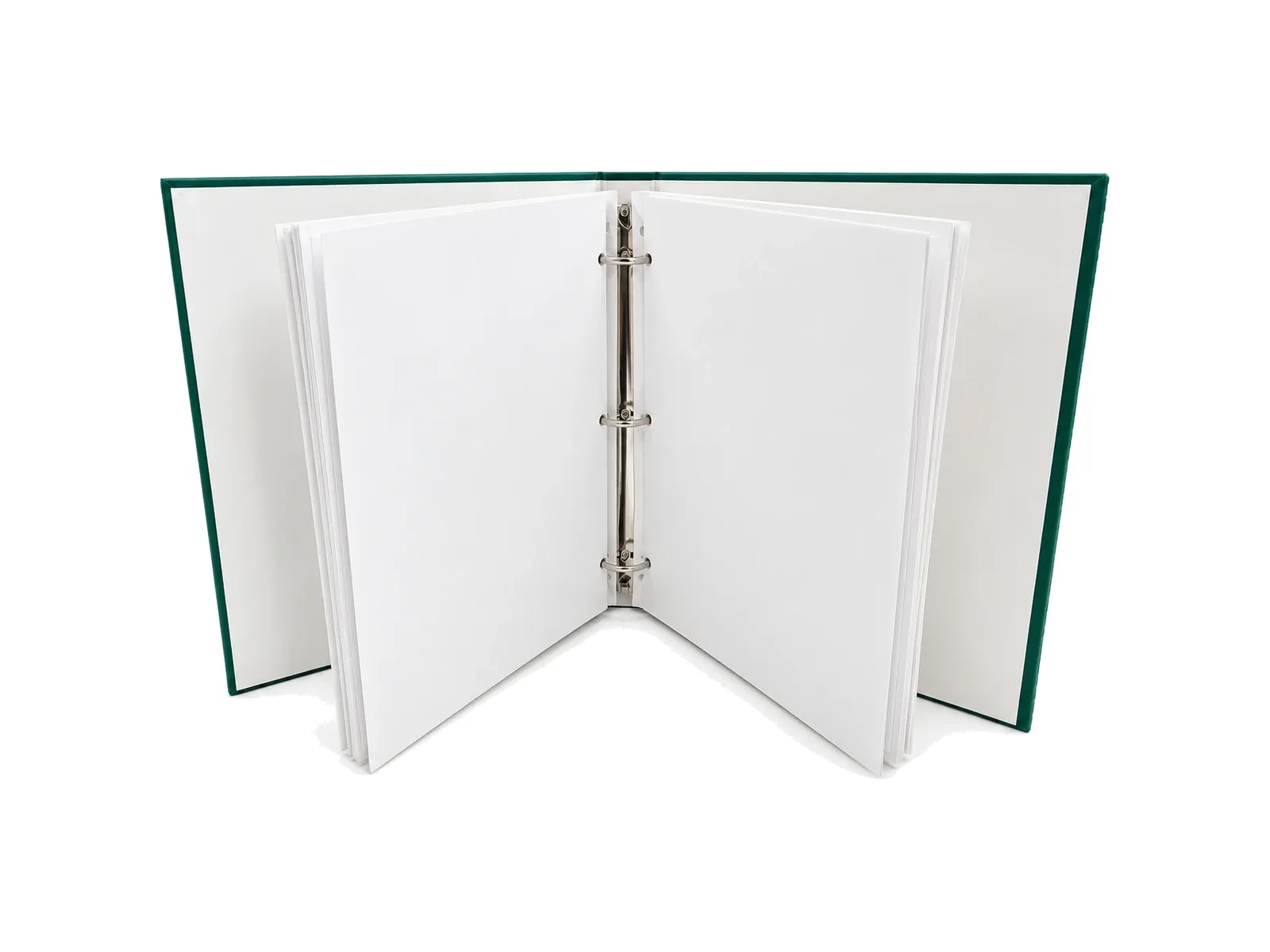

File folders

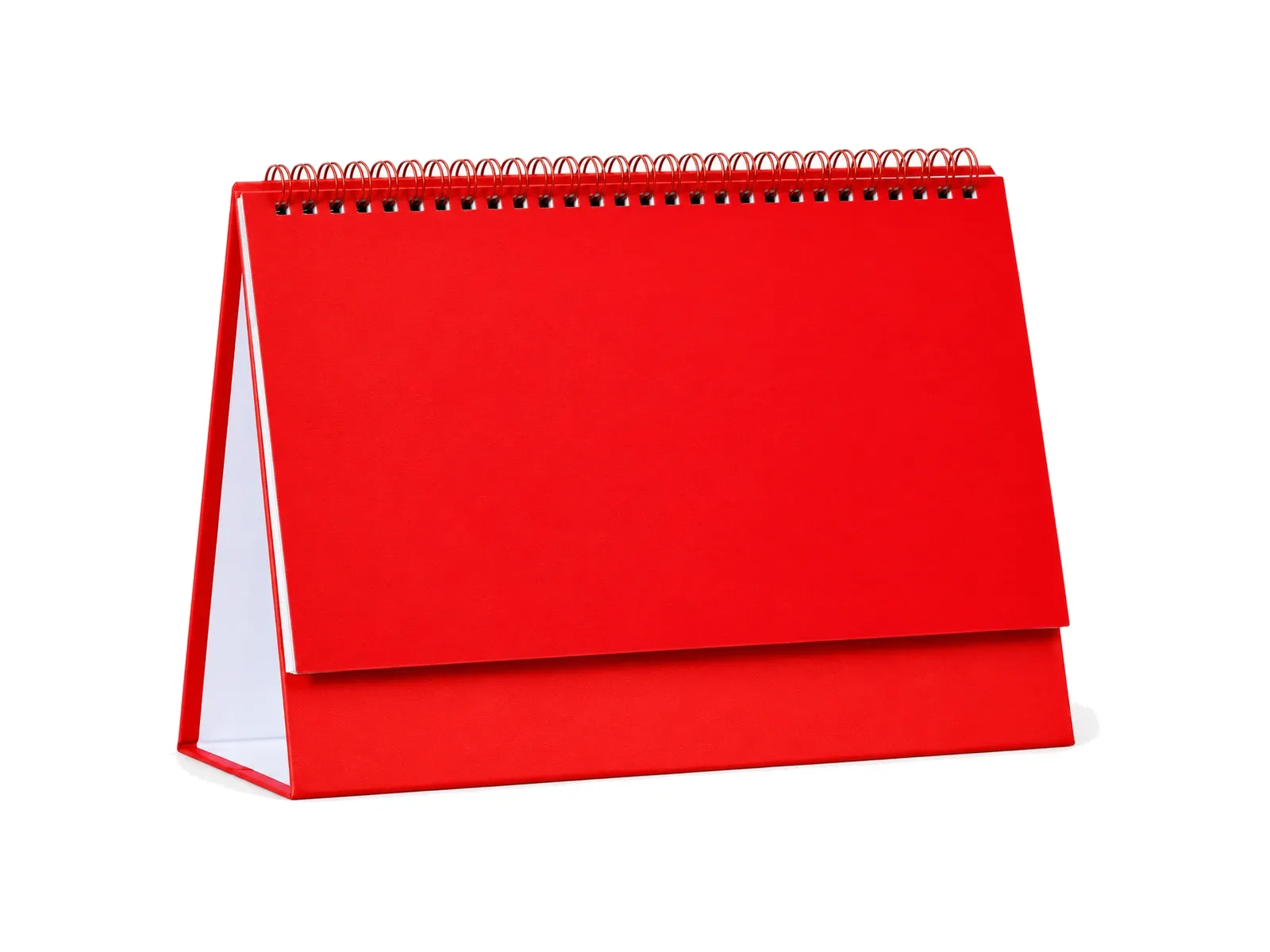

Calendars

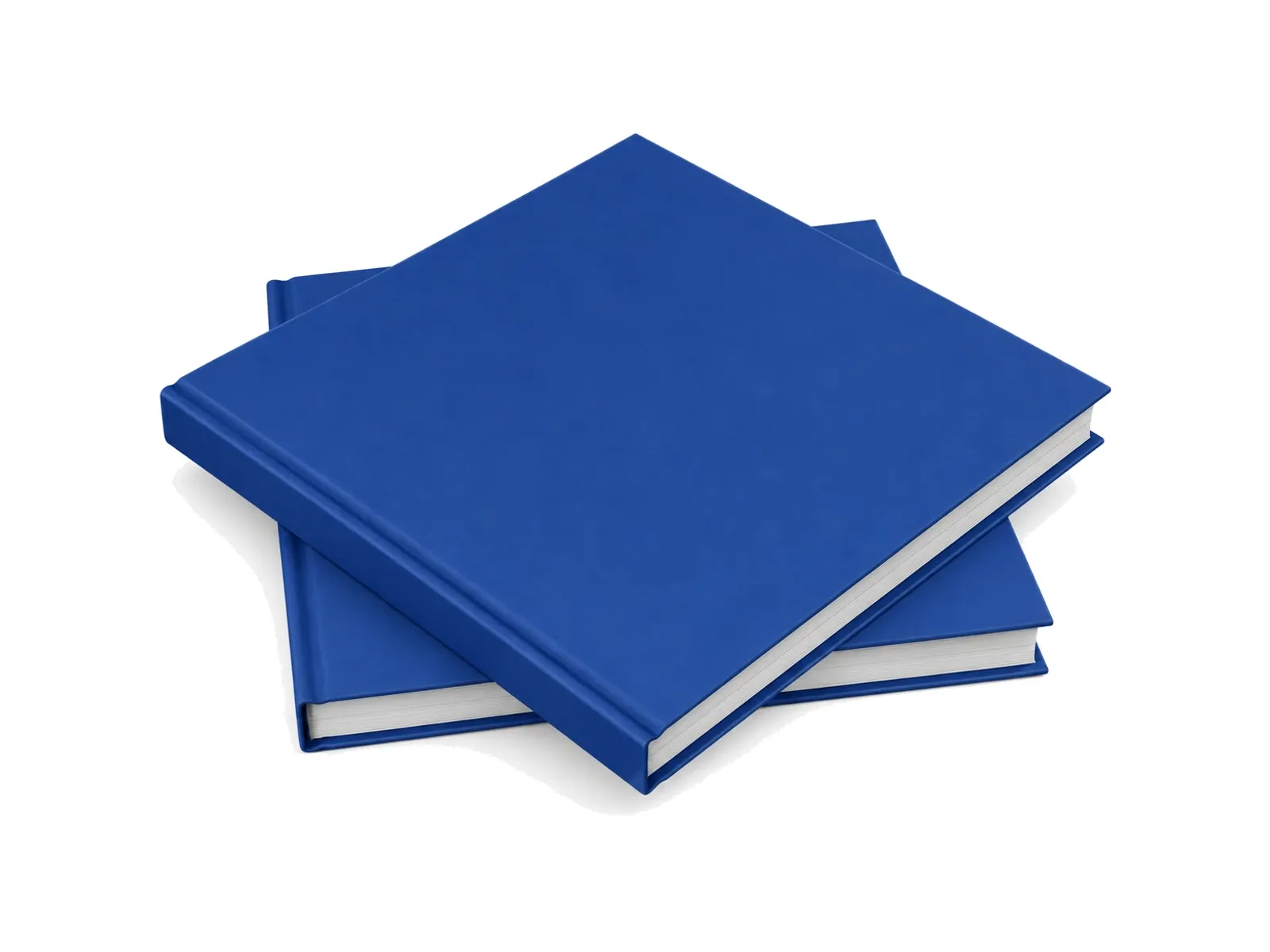

Book covers

Line position

Where the HF-550 sits in a line.

Before

HF-1300Automatic Cardboard Slitting Machine

HF-1200Automatic V Grooving Machine

This machine

HF-550Case Making · 20–30 pcs/min

After

HF-600Automatic Multifunctional Glue Spray Machine

HF-8288Multifunctional Automatic Box Assembly Machine

HF-1150Automatic Folding Box Visual Positioning Assembly Machine

FAQ

Questions about the HF-550.

What sizes does the HF-550 handle?

For the HF-550, paper size: Length 140–1100 mm, width 100–560 mm; max finished cover size (L × W): 1000 × 500 mm; min finished cover size (L × W): 200 × 100 mm; min middle strip (spine): 10 mm.

How fast is the HF-550?

The HF-550 runs at 20–30 pcs/min. Speed is counted in single pieces, not sets.

What materials can the HF-550 run?

On the HF-550, paper weight: 80–300 g/m²; cardboard thickness: 1–4 mm.

What power and air supply does the HF-550 need?

The HF-550 needs air supply: 10 L/min at 0.8 MPa; motor power: 10.5 kW / 380 V, 3-phase; heating power: 6 kW.

How large and heavy is the HF-550?

For the HF-550, machine weight: 3,000 kg; machine dimensions (L × W × H): 10500 × 2050 × 2050 mm.

Which machines work with the HF-550?

It is fed by the HF-1300 Automatic Cardboard Slitting Machine, HF-1200 Automatic V Grooving Machine, and it feeds the HF-600 Automatic Multifunctional Glue Spray Machine, HF-8288 Multifunctional Automatic Box Assembly Machine, HF-1150 Automatic Folding Box Visual Positioning Assembly Machine. Which of these you need depends on the box structure and how much of the line is already in place.
