HF-1150Automatic Folding Box Visual Positioning Assembly Machine

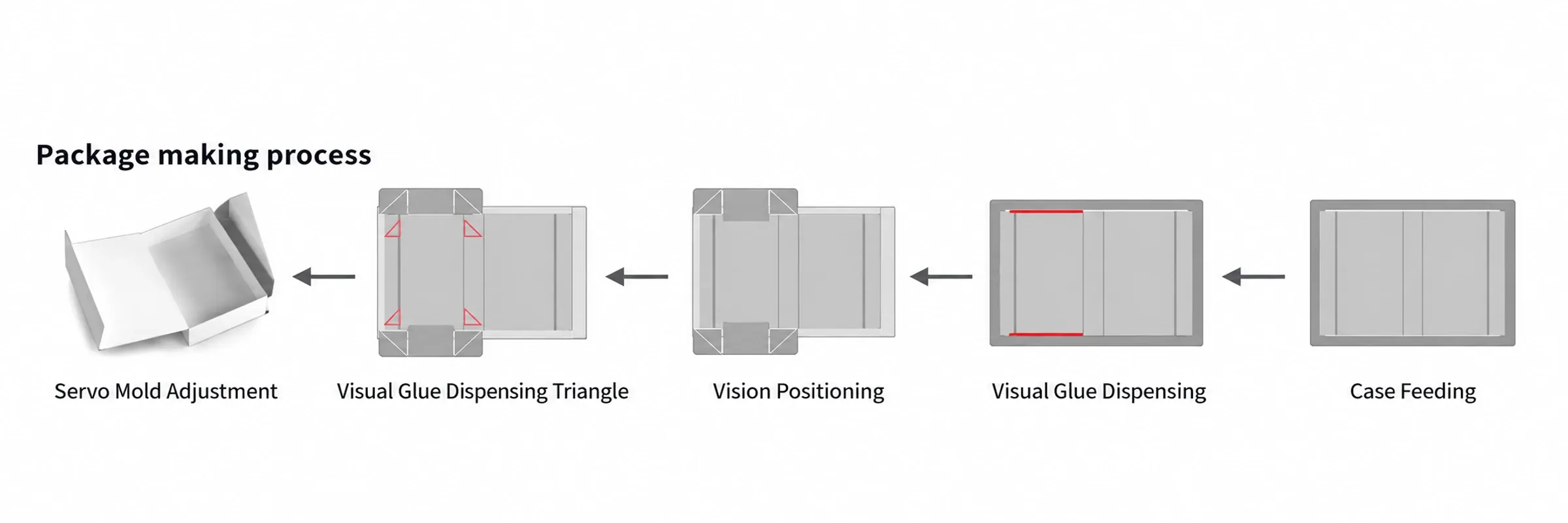

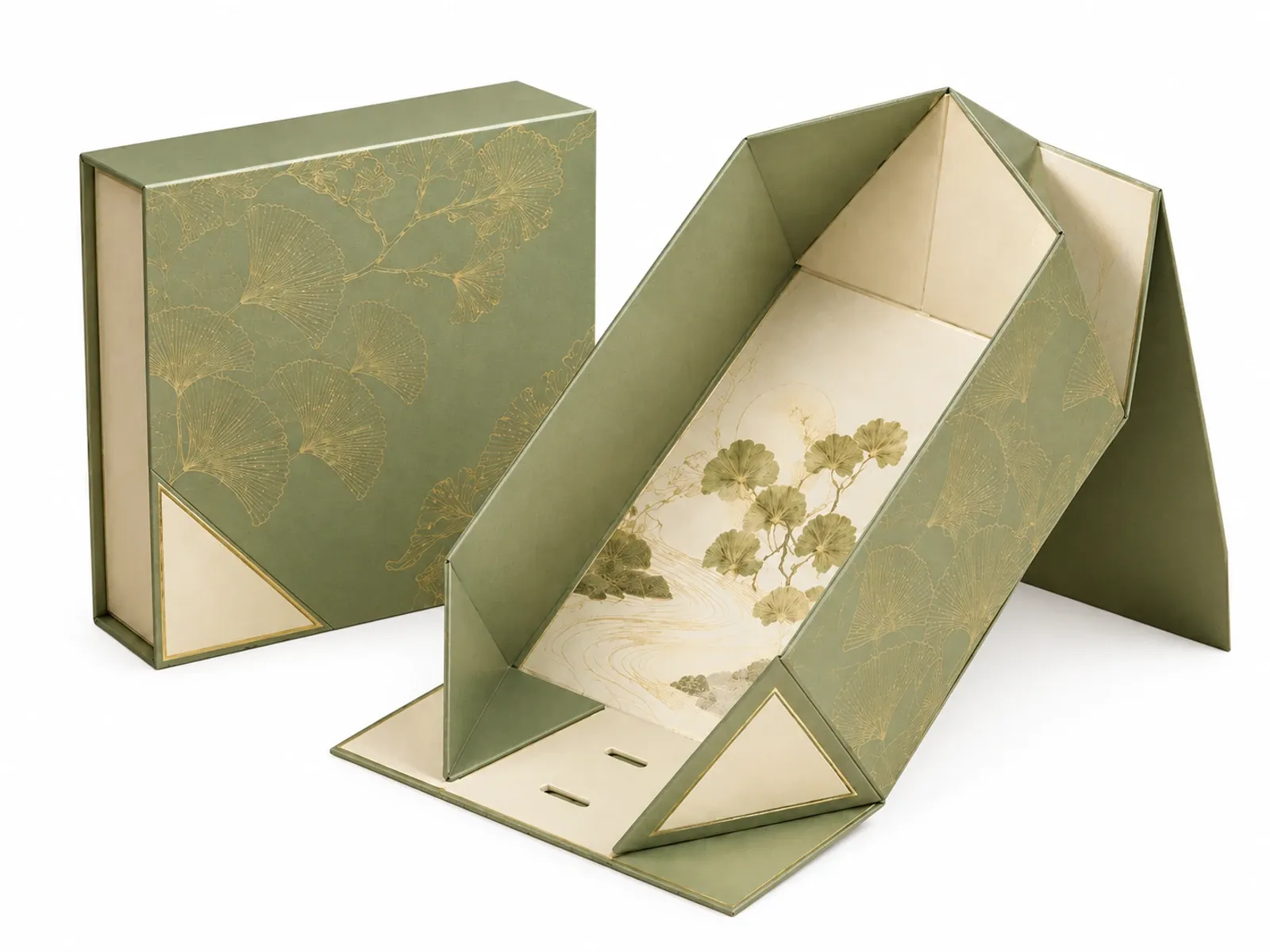

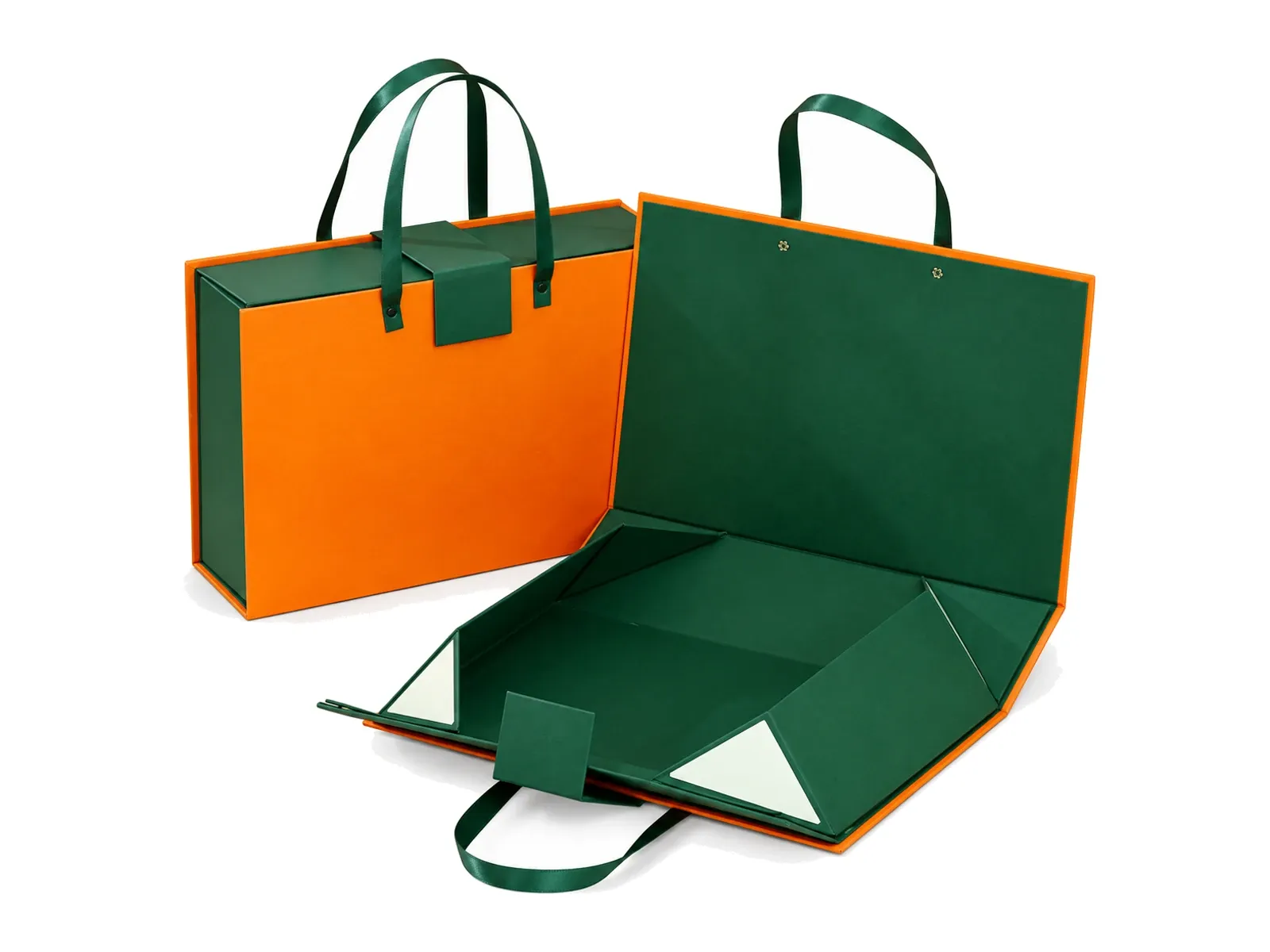

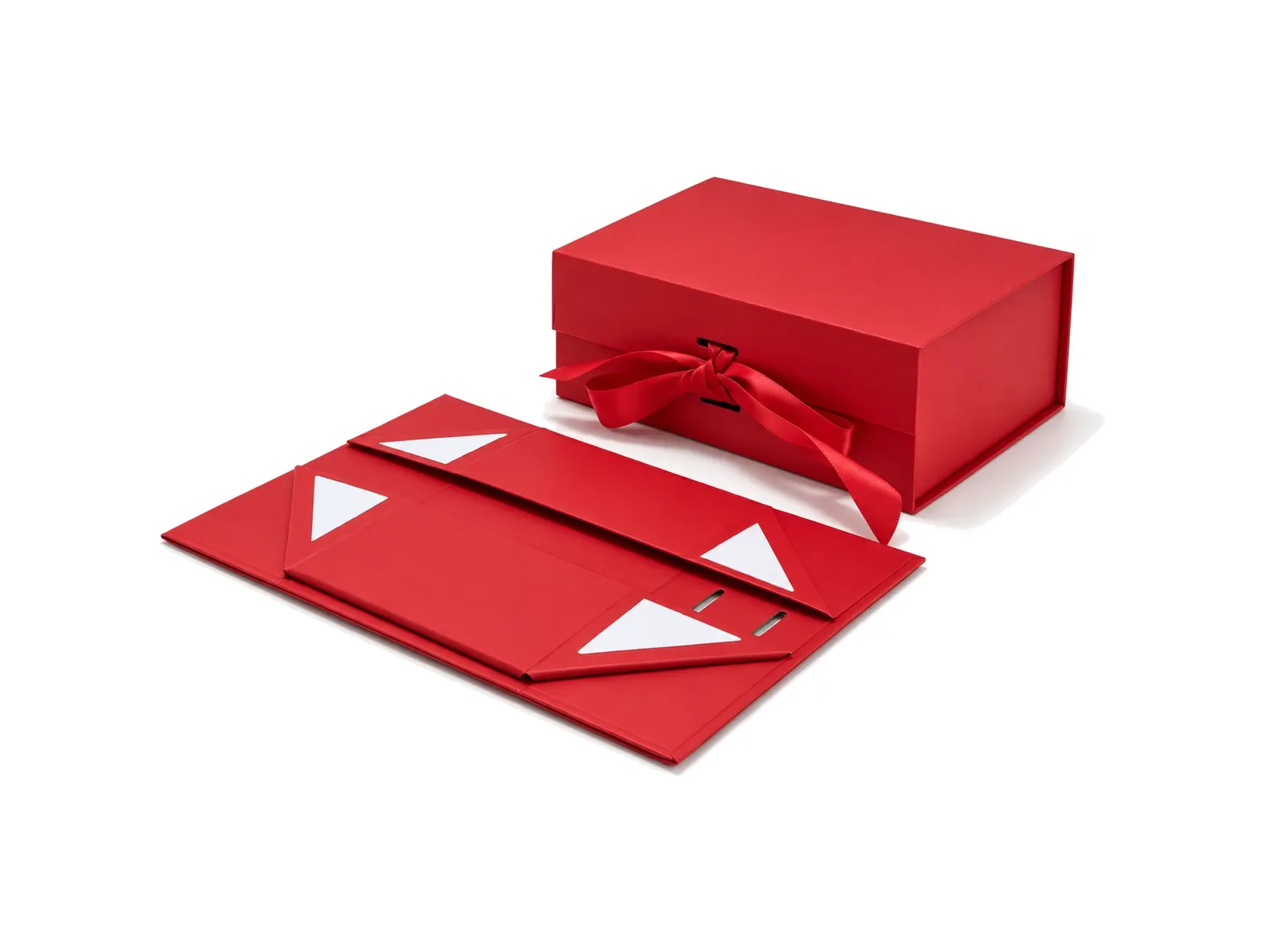

Assembles collapsible rigid boxes in one line: it feeds the finished case, sprays glue, positions the side wings by camera and sprays the triangle glue for the wings.

Max case size: 1150 × 500mm
Min case size: 400 × 150mm
Working speed: 15–20pcs/min
Power: 23kW

Specifications

ASize range

Parameter	Min	Max
Case size (L × W)	400 × 150 mm	1150 × 500 mm
Side greyboard size (L × W)	230 × 50 mm	700 × 150 mm

BPerformance

Working speed	15–20 pcs/min
Output per 8-hour shift	Up to about 9,600 pcs (1 m long case shells)

CElectrical & footprint

Power supply	380 V / 50 Hz
Power	23 kW
Air pressure	0.6 MPa
Machine weight	8,200 kg

Features

How the HF-1150 is built.

01
Three vision stations and two servo mould-adjustment modules work together along the line.
02
Vision-based setup: positioning is set on screen, which shortens operator training.
03
Servo mould adjustment shortens changeover between box sizes.
04
Built to keep special-shaped folding boxes stable through assembly.

Line position

Where the HF-1150 sits in a line.

Before

HF-550Automatic Case Making Machine

HF-8020Automatic Folding Box Side Wing Wrapping Machine

HF-800DAutomatic Folding Box Wing Wrapping Machine

This machine

HF-1150Collapsible Box · 15–20 pcs/min

After

Ends the sequence: the piece leaves this machine finished for this stage.

FAQ

Questions about the HF-1150.

What sizes does the HF-1150 handle?

For the HF-1150, max case size (L × W): 1150 × 500 mm; min case size (L × W): 400 × 150 mm; max side greyboard size (L × W): 700 × 150 mm; min side greyboard size (L × W): 230 × 50 mm.

How fast is the HF-1150?

The HF-1150 runs at 15–20 pcs/min, or Up to about 9,600 pcs (1 m long case shells) per 8-hour shift. Speed is counted in single pieces, not sets.

What power and air supply does the HF-1150 need?

The HF-1150 needs power supply: 380 V / 50 Hz; power: 23 kW; air pressure: 0.6 MPa.

How large and heavy is the HF-1150?

For the HF-1150, machine weight: 8,200 kg.

Which machines work with the HF-1150?

It is fed by the HF-550 Automatic Case Making Machine, HF-8020 Automatic Folding Box Side Wing Wrapping Machine, HF-800D Automatic Folding Box Wing Wrapping Machine. Which of these you need depends on the box structure and how much of the line is already in place.
