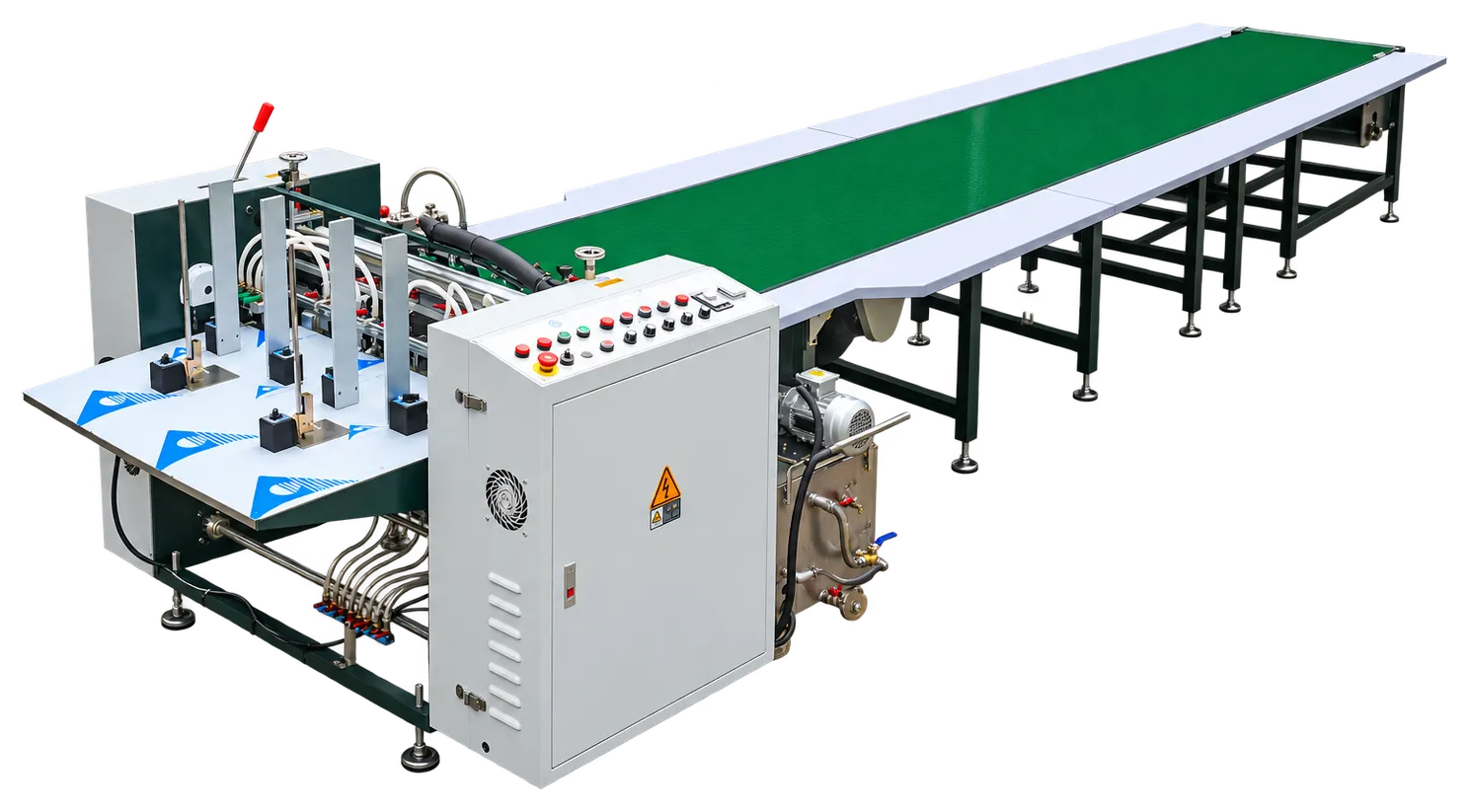

HF-850AAutomatic Paper Gluing Machine

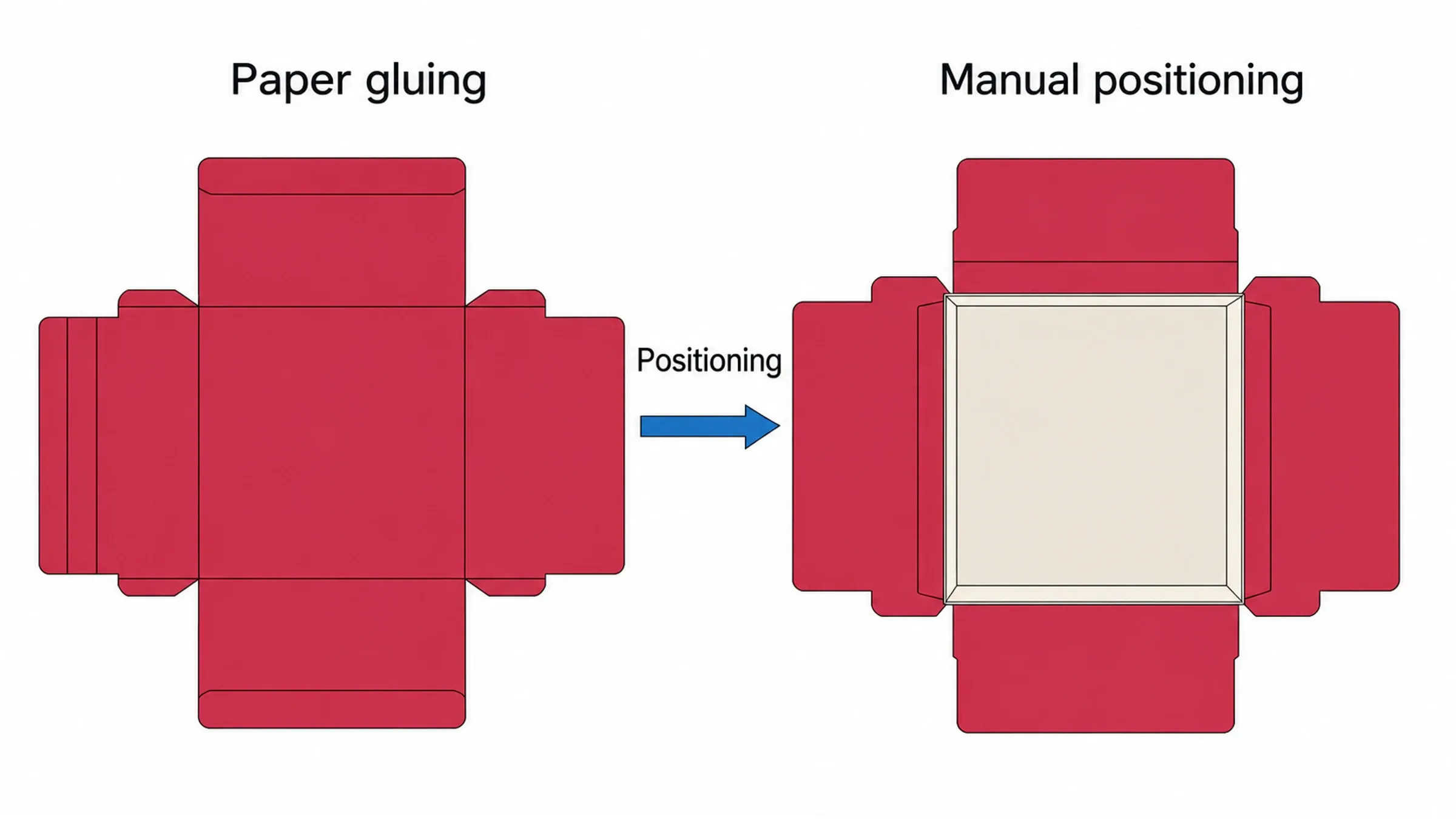

A gluing machine only: it feeds cover paper sheet by sheet and coats it with glue, for rigid boxes and hardcover cases. Positioning and wrapping are done after it, by hand or on other machines. A cam feeder prevents double sheets. Comes in two widths (HF-650A and HF-850A) and two drive versions (servo and standard).

Paper width: 80–800mm
Gluing speed: 7–45pcs/min
Paper weight: 80–250g/m²
Power supply: 380 V / 50 Hz

Specifications

ASize range

Paper width

HF-850A: 80–800 mm · HF-650A: 80–600 mm

BMaterial

Paper weight

80–250 g/m²

CPerformance

Gluing speed	Servo version: 7–45 pcs/min · Standard version: 7–40 pcs/min
Drive	Servo version: 3 servo motors + 2 VFDs · Standard version: 5 VFDs

DElectrical & footprint

Air supply	0.6–0.8 MPa
Power supply	380 V / 50 Hz
Heating power	8 kW
Machine weight	HF-850A: 1,000 kg · HF-650A: 900 kg
Machine dimensions (L × W × H)	HF-850A: 6990 × 1620 × 995 mm · HF-650A: 6990 × 1420 × 995 mm

Features

How the HF-850A is built.

01
Cam feeding mechanism to avoid double-sheet feeding.
02
Glue roller in thick-wall 304 stainless tube, precision ground with a double hard-chrome layer.
03
Automatic glue mixing motor.
04
Glue viscosity control is optional.
05
Shorter footprint than a traditional gluing machine.
06
Pairs with a box forming machine for rigid boxes or a four-side wrapping machine for hardcover cases.
07
Servo version only: a Yamaha robot can be added to turn it into an automatic positioning machine.

Line position

Where the HF-850A sits in a line.

Before

Starts the sequence: fed by hand or from a stack.

This machine

HF-850ARigid Box Making · 7–45 pcs/min

After

HF-450Automatic Rigid Box Forming Machine

HF-900Automatic Hardcover Four Side Wrapping Machine

FAQ

Questions about the HF-850A.

What sizes does the HF-850A handle?

For the HF-850A, paper width: HF-850A: 80–800 mm · HF-650A: 80–600 mm.

How fast is the HF-850A?

The HF-850A runs at Servo version: 7–45 pcs/min · Standard version: 7–40 pcs/min. Speed is counted in single pieces, not sets.

What materials can the HF-850A run?

On the HF-850A, paper weight: 80–250 g/m².

What power and air supply does the HF-850A need?

The HF-850A needs air supply: 0.6–0.8 MPa; power supply: 380 V / 50 Hz; heating power: 8 kW.

How large and heavy is the HF-850A?

For the HF-850A, machine weight: HF-850A: 1,000 kg · HF-650A: 900 kg; machine dimensions (L × W × H): HF-850A: 6990 × 1620 × 995 mm · HF-650A: 6990 × 1420 × 995 mm.

Which machines work with the HF-850A?

It feeds the HF-450 Automatic Rigid Box Forming Machine, HF-900 Automatic Hardcover Four Side Wrapping Machine. Which of these you need depends on the box structure and how much of the line is already in place.
