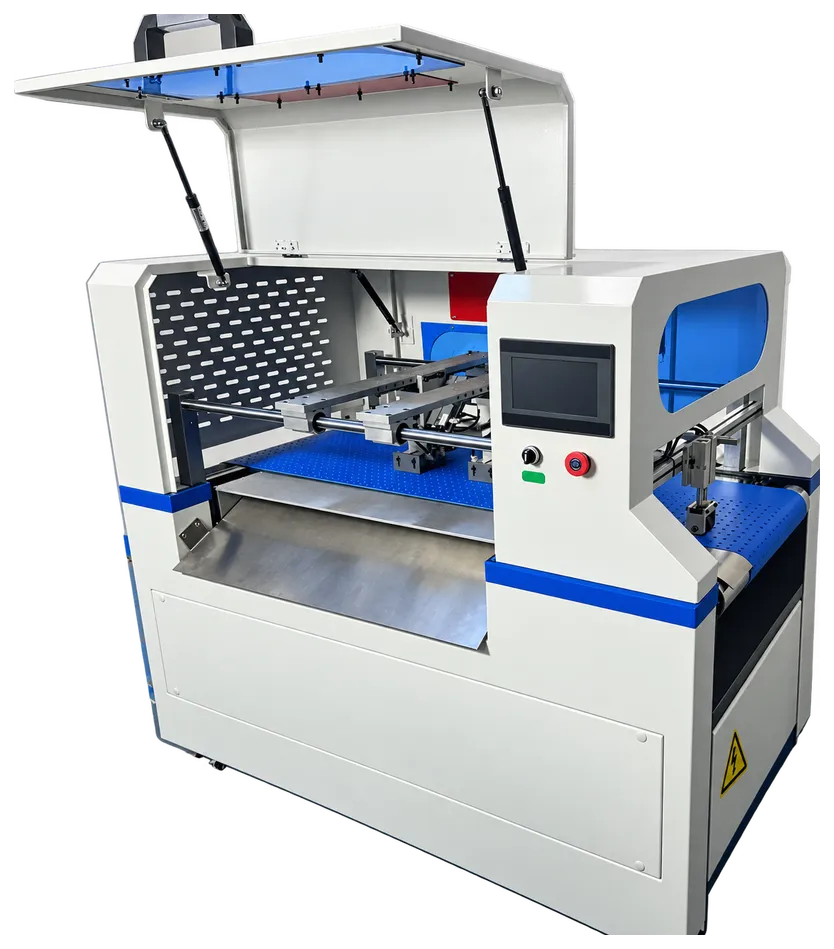

HF-800DAutomatic Folding Box Wing Wrapping Machine
Wraps the wings of a foldable box in place of hand wrapping. It can also be connected after a positioning machine.
- Max wing paper length
- 800mm
- Production speed
- 19–25pcs/min
- Power
- 0.75 kW / 220 V
- Paper weight
- 100–300g/m²
ASize range
| Folding depth | 10–200 mm |
| Greyboard / MDF width | 30–200 mm |
| Max wing paper length | 800 mm |
BMaterial
| Paper weight | 100–300 g/m² |
CPerformance
| Production speed | 19–25 pcs/min |
DElectrical & footprint
| Air pressure | 0.4–0.8 MPa |
| Power | 0.75 kW / 220 V |
| Machine weight | 350 kg |
| Machine dimensions (L × W × H) | 1400 × 850 × 1350 mm |
1400
850
1.2 m² floor area, mm
Line position
Where the HF-800D sits in a line.
Before
Starts the sequence: fed by hand or from a stack.
This machine
FAQ
Questions about the HF-800D.
What sizes does the HF-800D handle?
For the HF-800D, folding depth: 10–200 mm; max wing paper length: 800 mm.
How fast is the HF-800D?
The HF-800D runs at 19–25 pcs/min. Speed is counted in single pieces, not sets.
What materials can the HF-800D run?
On the HF-800D, paper weight: 100–300 g/m².
What power and air supply does the HF-800D need?
The HF-800D needs air pressure: 0.4–0.8 MPa; power: 0.75 kW / 220 V.
How large and heavy is the HF-800D?
For the HF-800D, machine weight: 350 kg; machine dimensions (L × W × H): 1400 × 850 × 1350 mm.
Which machines work with the HF-800D?
It feeds the HF-1150 Automatic Folding Box Visual Positioning Assembly Machine. Which of these you need depends on the box structure and how much of the line is already in place.
