HF-8020Automatic Folding Box Side Wing Wrapping Machine

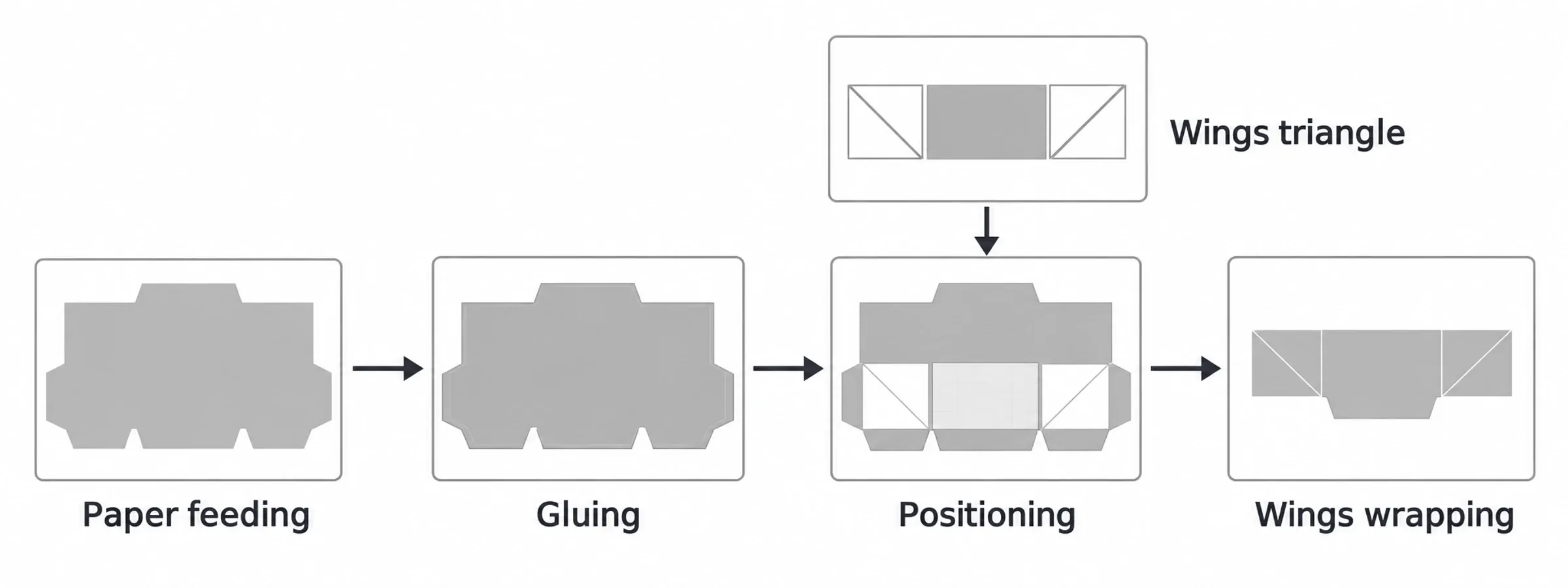

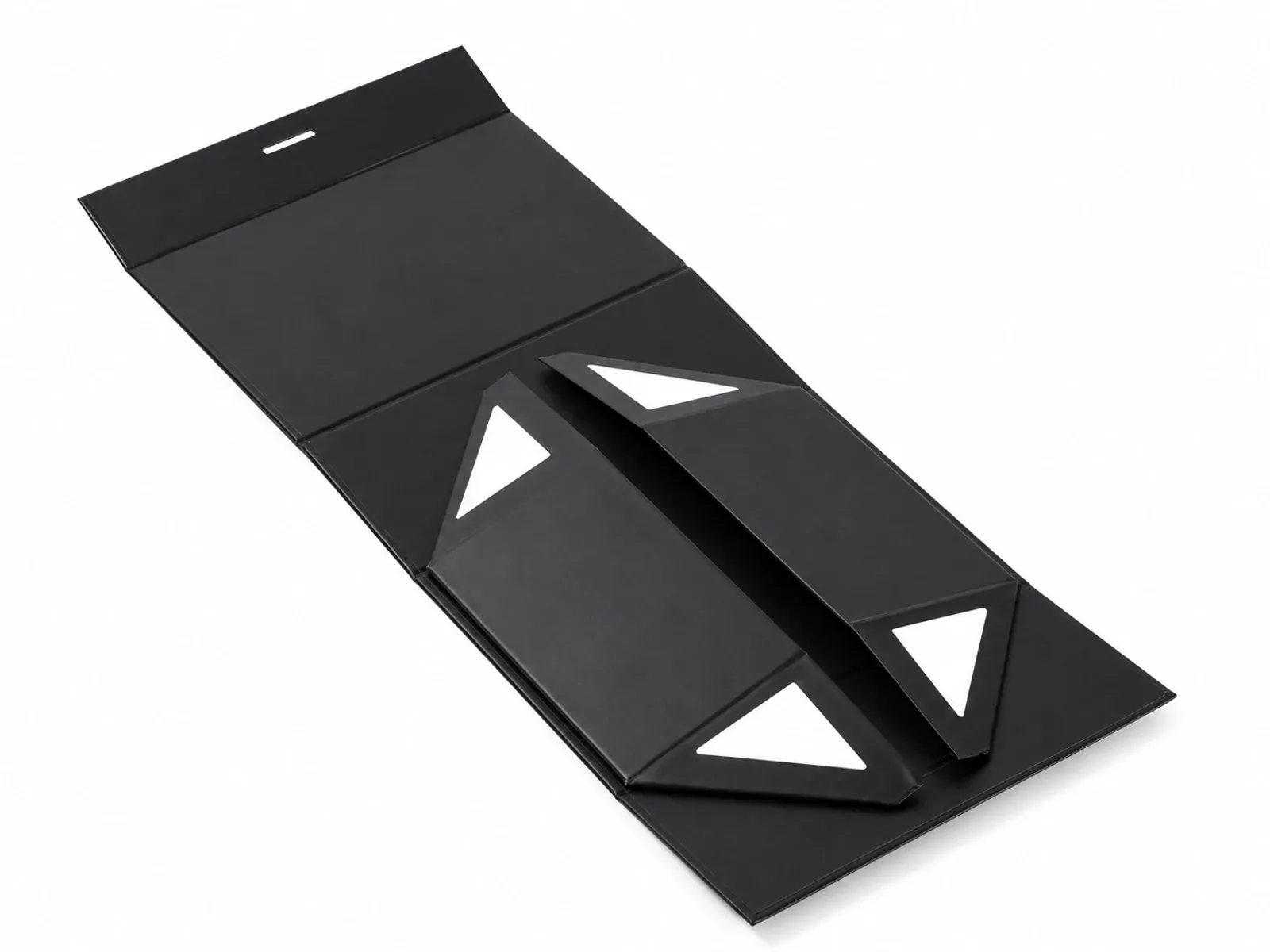

Makes the side wings of a collapsible rigid box: it feeds and glues the paper, positions the greyboard and triangle boards by camera to ±0.1 mm, then wraps and creases the wing.

Max paper size: 920 × 600mm
Min paper size: 160 × 60mm
Working speed: 20–30sheets/min
Positioning accuracy: ±0.1mm
Motor power: 14kW

Specifications

ASize range

Parameter	Min	Max
Paper size (L × W)	160 × 60 mm	920 × 600 mm
Finished side wing (L × W)	160 × 40 mm	800 × 200 mm
Middle greyboard (L × W)	80 × 40 mm	400 × 200 mm
Right-triangle board leg length	40–200 mm

BMaterial

Greyboard thickness	1–3 mm
Triangle board thickness	0.4–1 mm
Paper weight	100–350 g/m²
Paper stacking height	310 mm

CPerformance

Positioning accuracy	±0.1 mm
Working speed	20–30 sheets/min

DElectrical & footprint

Power supply	380 V / 50 Hz
Motor power	14 kW
Heater power	4 kW
Air pressure	0.6 MPa
Machine weight	2,100 kg
Machine dimensions (L × W × H)	7000 × 2600 × 2000 mm

Footprint · to scale

7000

2600

18.2 m² floor area, mm

Features

How the HF-8020 is built.

01
Robot arm and vision algorithm developed for this machine rather than bought in.
02
Servo-driven conveyor line.
03
Fast mould setup and product changeover; supports mixed production.
04
Corner nipping function reduces the need for product-specific cutting dies.
05
Handles cardboard triangle plates without bending or wrinkling them.
06
Built-in creasing: two vertical and one horizontal edge are pasted and grooved in the machine, which removes a manual step downstream.

Line position

Where the HF-8020 sits in a line.

Before

Starts the sequence: fed by hand or from a stack.

This machine

HF-8020Collapsible Box · 20–30 sheets/min

After

HF-1150Automatic Folding Box Visual Positioning Assembly Machine

FAQ

Questions about the HF-8020.

What sizes does the HF-8020 handle?

For the HF-8020, max paper size (L × W): 920 × 600 mm; min paper size (L × W): 160 × 60 mm; max finished side wing (L × W): 800 × 200 mm; min finished side wing (L × W): 160 × 40 mm; max middle greyboard (L × W): 400 × 200 mm; min middle greyboard (L × W): 80 × 40 mm.

How fast is the HF-8020?

The HF-8020 runs at 20–30 sheets/min.

What materials can the HF-8020 run?

On the HF-8020, greyboard thickness: 1–3 mm; triangle board thickness: 0.4–1 mm; paper weight: 100–350 g/m².

What power and air supply does the HF-8020 need?

The HF-8020 needs power supply: 380 V / 50 Hz; motor power: 14 kW; heater power: 4 kW; air pressure: 0.6 MPa.

How large and heavy is the HF-8020?

For the HF-8020, machine weight: 2,100 kg; machine dimensions (L × W × H): 7000 × 2600 × 2000 mm.

Which machines work with the HF-8020?

It feeds the HF-1150 Automatic Folding Box Visual Positioning Assembly Machine. Which of these you need depends on the box structure and how much of the line is already in place.
